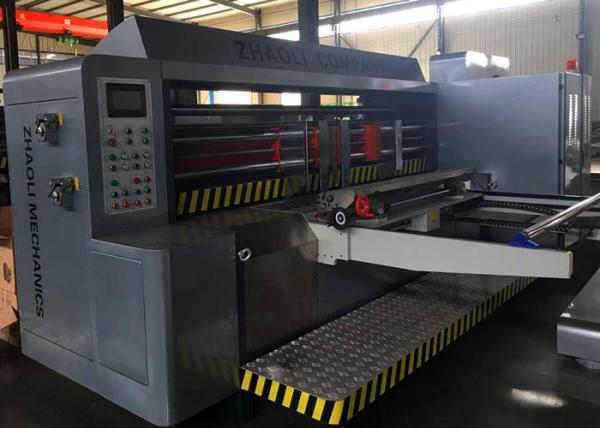

Corrugated Carton Rotary Slotter Machine / Carton Box Machine With Fast Speed
Corrugated Carton Rotary Slotter Machine / Carton Box Machine With Fast Speed
Corrugated Carton Rotary Slotter Machine / Carton Box Machine With Fast Speed
Corrugated Carton Rotary Slotter Machine / Carton Box Machine With Fast Speed
Specifications
Brand Name :
Zhaoli
Model Number :
1200 X 2800 mm
Certification :
CE Certificate
Place of Origin :
China
MOQ :
1 set
Price :
USD 20000 - 50000 Per Set
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5 Sets Per Month
Delivery Time :
40 Work Days
Packaging Details :
Plastic Packing
Machine name :
Corrugated carton Rotary Die Cutter Machine
Max max speed :
200 pcs / min
Max feeder size :
1200 X 2800 mm
Min feeder size :
380 X 700 mm
min slot space :
240 X 60 X 240 X 60 mm
Machine wallboard thickness :
50 mm
Description

Automatic Corrugated Carton Rotary Slotter Machine / Corrugated Carton Box Machine

1 Machine description and advantages

(1) Vacuum suction with 4 shafts automatic lead edge feeder.

(2 ) Motorized movement for the slotting wheels and order memory system by 200 orders.

(3) The phase is motorized movement by PLC touch screen operation.

(4) One set of board feeding rolls and two sets of creasing score rolls.

(5) All the carton size ,height and phase was adjusted by computer ,man-machine interface ,save time and energy ,improved the working efficiency ,the computer can storage orders, you can input the length ,width ,height of the carton ,or find the data in the orders ,then the slotting knives ,creasing wheels will move to the proper position automatically by computer

(6) Creasing device is process balance correction, smooth operation.

(7) Pressing roller adopt French Martin technology, use hard pressure the soft, the press line straight and not easy seam broken line .

(8)The slotting knives is alloy steel material after heat treatment grinding tooth slotting knife, hardness and toughness is good .

(9) Alloy steel after heat treatment material grinding trimming edge knife, knife edge sharp, high precision,lowest error .

(10) the functions of the automatic slotter : slot , slitter ,scorer , cutting angle .

2 Machine Main parameter

Machine design speed 200 pcs/min
Machine efficient speed 180pcs/min
Machine wallboard thickness 50 mm
The width of machine 3000 mm
Max feeder paperboard size 1158 X 2800 mm
Min feeder paperboard size 380 X 700 mm
Min slot interval (L*W*L*W) 240X60X240X60 mm
Min height of box 235 mm
Machine dimension 4800 X 3000 X 1800 mm
Adjust slot knives type Computer adjustment

3 Rotary Slotter Machine Main details picture ( The machine wallboard thickness )
