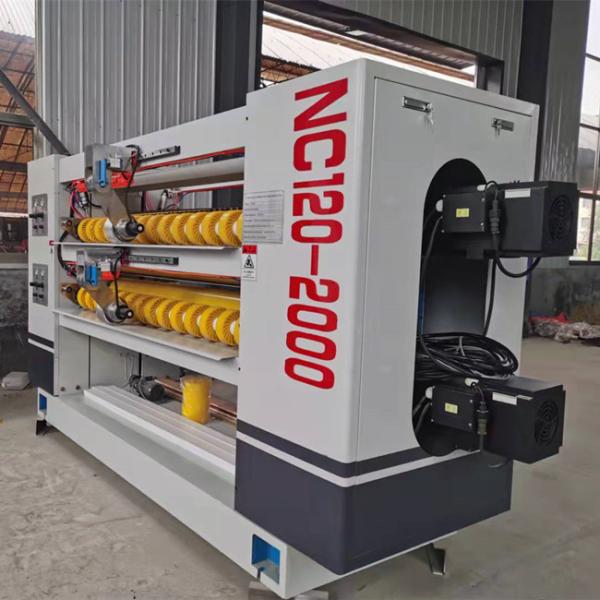

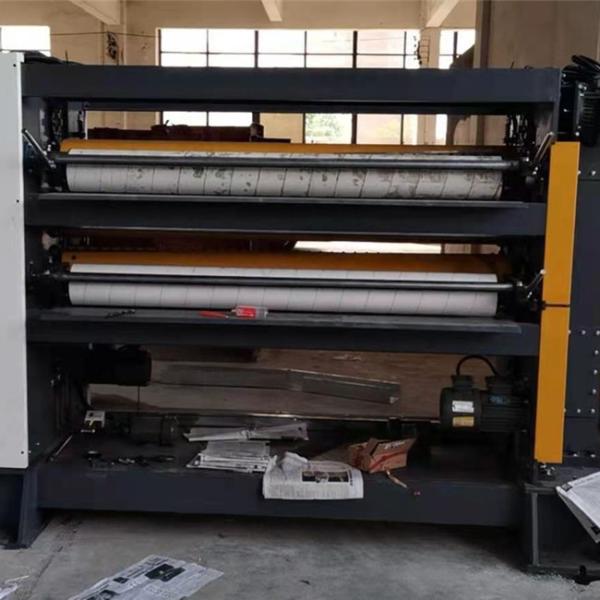

1800 Model Double NC Cutter Corrugated Cardboard Production Line
1800 Model Double NC Cutter Corrugated Cardboard Production Line
1800 Model Double NC Cutter Corrugated Cardboard Production Line
1800 Model Double NC Cutter Corrugated Cardboard Production Line
Specifications
Brand Name :
GERUN
Certification :
ISO,CE
Place of Origin :
Cangzhou，China
MOQ :
1
Price :
USD2,000~150,000/set
Payment Terms :
T/T, D/P, D/A, MoneyGram, Western Union, L/C
Supply Ability :
30set/month
Delivery Time :
15~60 work days
Packaging Details :
Plastic film covering or wooden case packaging(choosed)
Product name :
Double NC Cutter Helical Knives Corrugated Cardboard Production Line
Category :
NC Cutter Machinery
Working width :
2200mm
Economic speed :
180~230m/min
Max. cutting length :
9999mm
Min. cutting length :
500mm
Cutting accuracy :
±1mm
Working power :
380V 50Hz 100Kw
Description

1800 Model Double NC Cutter Machine For Corrugated Line

Product Description:

1. It can store 200 units orders,replace the cutter specifications quickly and accurately,changing orders without stop,And enables networked computers to facilitate production management.
2. Knife shaft drive gears are precision forged steel induction hardening, backlash-free transmission, advanced keyless connection, high transmission accuracy.
3. Cutting machine adopts inlaid front steel blade knife spiral structure, serrated knife. scissors, shears, shear force, long blade life.
4. Around feed rollers are used the sun gear platen way, smooth delivery, pressure evenly, easy to crush plate board or cause blockage.
5. This model is the braking energy storage (non-dynamic braking), so the energy consumption in the production process, the average electricity consumption is 1/3 of an ordinary NC cutting machine, saving more than 70% power to reach the goal of saving money .
6. Precision adjustable no gap gear to ensure precise blade engagement, running balance.
7. Using an independent oil pump and filter with two copper distribution in each gear position oil, lubrication and cooling.
8. Knife roller: fine quality forged steel material, the balanced, with good stability.

1800 Model Double NC Cutter Corrugated Cardboard Production Line

Technical Parameter:

Product name

 Double NC Cutter Helical Knives Corrugated Cardboard Production Line
Category NC Cutter Machinery

Working width

2200mm

Economic speed

180~230m/min

Max. cutting length

9999mm

Min. cutting length

500mm

Cutting accuracy

 ±1mm
Working power 380V 50Hz 100Kw
