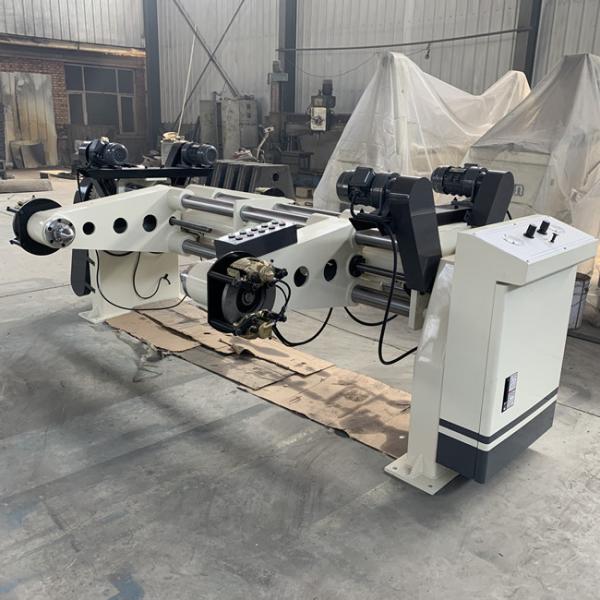

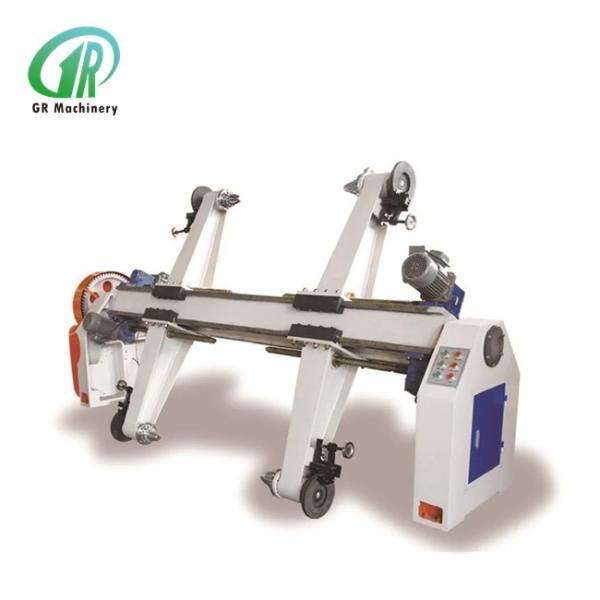

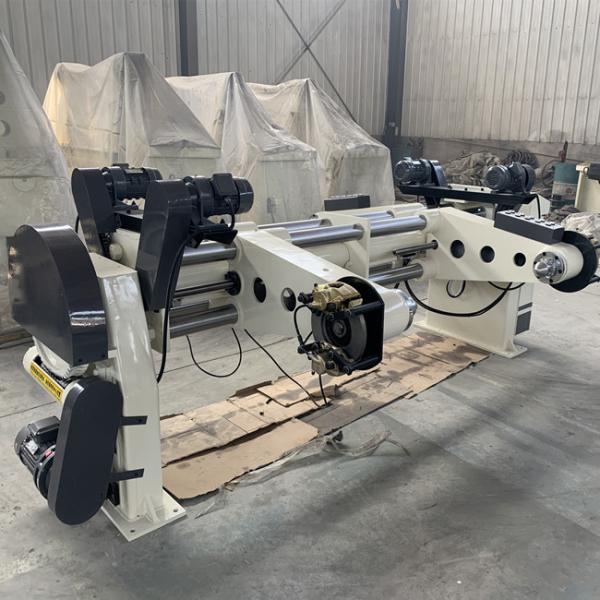

Electric Shaftless Mill Roll Stand For Corrugated Cardboard Production Line

※Structural features:

★Symmetrical structure can also install two bundles of paper at the same time,Paper can be used for non-stop for a job；Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.

★each shaftless mill roll stand is equipped with two pieces of paper guide, two set of paper car；paper guide the use of channel 14 and the guide post weld,paper car adopt 10mmwelded stell,the length of track is 4500mm.

★manual dics brake,add screw following

★electric elements centralized control the electric elements,expand chuck.

※technical parameters:

1,Backstands action mode:mechanical electric operation

2,the range of paper jams:maximum:1400mm minimum:600mm

3,the diameter of paper jams:maximum:￠1400mm minimum:￠400mm

4,Unilateral maximum load:maximum2000Kg

5,Powered motor parameters:

①Paper jams motor550W×4set 380V 50HZ short(S2)working standard

②lift motor 1.5Kw 380V 50HZ short(S2)working standard

※Mainly purchased parts, raw materials and origin:

Our company


Product packaging


FAQ:
Q1: How is the warranty of the machine?
A: Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, Kindly contact us and we will reply you through product's photos and videos to make every detail clear.
Q2: How about the after-sale service?
A: 1) TM online 24 hours, also contact by email, skype, wechat, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
Q3: Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.
Q4: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it is difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
