NC Cutter Helical Knives Corrugated Cardboard Production Line 2200mm Width

Product Description:

1. It can store 200 units orders,replace the cutter specifications quickly and accurately,changing orderswithout stop,And enables networked computers to facilitate production management.

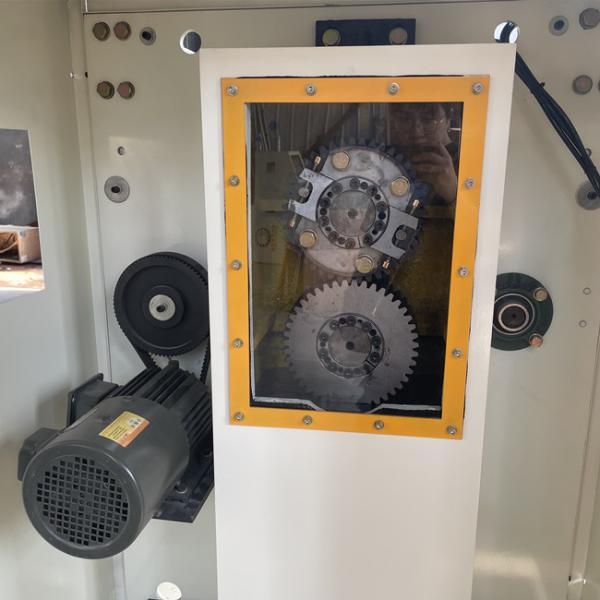

2. Knife shaft drive gears are precision forged steel induction hardening, backlash-free transmission, advanced keyless connection, high transmission accuracy.
3. Cutting machine adopts inlaid front steel blade knife spiral structure, serrated knife. scissors, shears, shear force, long blade life.

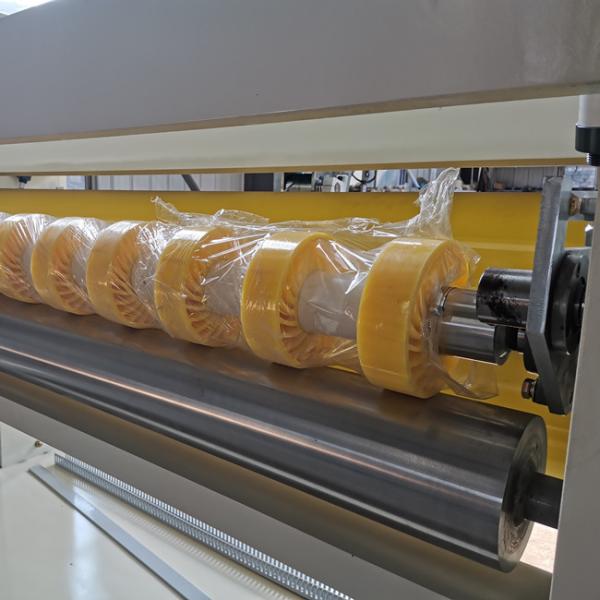

4. Around feed rollers are used the sun gear platen way, smooth delivery, pressure evenly, easy to crush plate board or cause blockage.
5. This model is the braking energy storage (non-dynamic braking), so the energy consumption in the production process, the average electricity consumption is 1/3 of an ordinary NC cutting machine, saving more than 70% power to reach the goal of saving money.
6. Precision adjustable no gap gear to ensure precise blade engagement, running balance.
7. Using an independent oil pump and filter with two copper distribution in each gear position oil, lubrication and cooling.
8. Knife roller: fine quality forged steel material, the balanced, with good stability.

Roller diameter parameters:
1.Cross on the knife shaft center distance:￠216mm
2.Before the lower conveying roller diameter ￠156mm
3.After the lower conveying roller diameter: ￠156mm
4.The front of the platen roller diameter: ￠70mm
5.The front of the platen roller diameter: ￠70mm
Note: After all have been grinding rollers, hard chrome plated at (on except under the knife shaft) dealing.

Technical Parameter:

Our company

Product packaging

FAQ:
Q1: How is the warranty of the machine?
A: Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, Kindly contact us and we will reply you through product's photos and videos to make every detail clear.
Q2: How about the after-sale service?
A: 1) TM online 24 hours, also contact by email, skype, wechat, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
Q3: Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.
Q4: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it is difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
