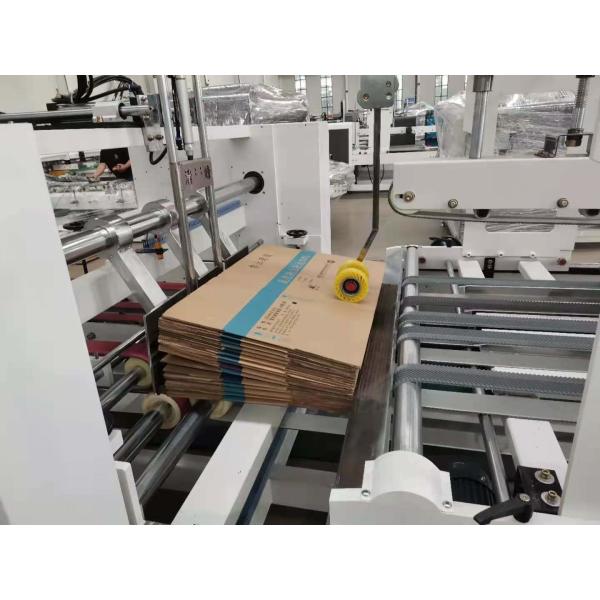

2600 Type Fully Automatic Corrugated Carton Folder Gluer Machine

QF-W-1 fully automatic folder gluer machine achieve whole computer adjust gluing unit, feeding unit and folding unit, just enter three data on the touch screen, machine can automatic adjust to the exact position.

This machine was also equipped with single computer NC adjustment, it can adjust any section individualy, what is more, the machine also has adjustment button, which can meet different operation requirement.

2600 Type Fully Automatic Corrugated Carton Folder Gluer Machine

Characteristic:

1.PLC program control data adjustment, enter the carton box specification into the touch screen.

2.The wallboard adopt 40mm cast iron material.

3.Feeding unit adopt printing machine model gear transmission,more steady than traditional chain, wheel and chain transmission less noisy and more precision.

MAIN STRUCTURE OF MACHINE

Feeding Section

1.Vacuum suction feeding to feed warping paperboard easily

2.Quality electromagnetic clutch and brake adopted, feeding section controlled independent,operate easily

3.Scorer wheel adjustable, suit for 2-8mm thick paperboard

4.Second creasing construction can impress again the paperboard which was not creased well

Gluing and Folding Section

1.Simpless structure and high reliability, glue quantity adjustable, cleaning easily.

2.Stainless steel glue wheel adopted,long using life and saving glue cost.

3.Imported quality rubber belt adopted,automatic folding.

4.With paperboard rectify device and creasing rectify device.

Counter and Stacker Section

1.Stacking and counting are simple and reliable.

2.Digital control,operation easily and reliable. No-stop put in data and automatic counting.

3.With rectification function.

4.Paperboard counting and put out by pneumatic, stable and quickly.

1. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road.

2. Transportation and various types of weather conditions. A full set of maintenance and operation.

3. Manuals is included.
