Sheet Corrugation Corrugated Box Folder Gluer Machine
Sheet Corrugation Corrugated Box Folder Gluer Machine
Sheet Corrugation Corrugated Box Folder Gluer Machine
Sheet Corrugation Corrugated Box Folder Gluer Machine
Sheet Corrugation Corrugated Box Folder Gluer Machine
Sheet Corrugation Corrugated Box Folder Gluer Machine
Sheet Corrugation Corrugated Box Folder Gluer Machine
Sheet Corrugation Corrugated Box Folder Gluer Machine
Specifications
Brand Name :
IPACK
Model Number :
2800
Certification :
CE,ISO
Place of Origin :
Hebei province,China
MOQ :
1 sets
Price :
To be negotiated
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets/month
Delivery Time :
30-60days
Packaging Details :
Wooden case packaging(optional) or well packed plastic film packaing
After-sales service provided :
Video technical support,Online support,Free spare parts,Engineers available to service machinery overseas,Field maintenance and repair service
Condition :
New
Warranty :
1 year
Usage :
corrugated carton box folding gluing
Adjustment :
Touch screen
Driven type :
Electric
Description

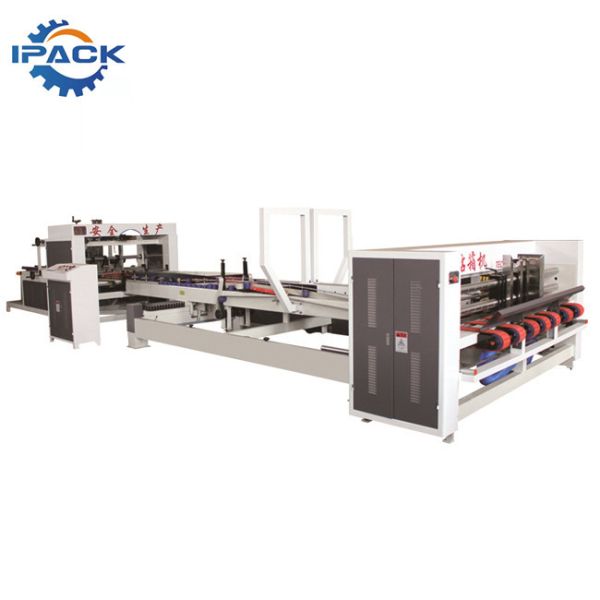

High speed automatic corrugated carton box folding gluing machine

Introduction

This machine can achieve whole computer adjustment for gluer unit, feeding unit and folder unit, just enter three data on the touch screen (Length, width, height size), the machine can automatic adjustment to exact position.

This machine was also setting the single computer NC adjustment, it can adjustment for any single position, at the same time, It was also setting the adjustment button, which can meet any different operation habit.


Sheet Corrugation Corrugated Box Folder Gluer Machine

Parameters

Model

2200

Width2650

2400

Width2850

2600

Width3050

2800

Width3250
Size A(mm) 80-850 80-850 80-850 80-850
Size B(mm) 440-2000 440-2400 440-2600 440-2800
Size C(mm) 130-840 130-840 130-840 130-840
Size D(mm) 170-1100 170-1100 170-1100 170-1200
Installation area(mm) 4000×15000 4200×15000 4400×15000 4600×15000
Motor Power(kw) 12kw 12kw 12kw 12kw
Maximum unfolding size 2200×1100 2400×1100 2600×1100 2800×1200
Minumum unfolding size 440×170 440×170 440×170 440×170
Sheet Corrugation Corrugated Box Folder Gluer Machine

Detailed Images

Main features of high speed full automatic corrugated carton box folding gluing machine

1. Automatic gluer consist of three part which is feeding paper part , gule folding part and counting piling part .

2. Adjust the speed by digital , micro-adjust the phase by computer , double frequency convertor synchronous operation , with simple quick reliable and precise controlling style .

3. Automatic feeding paper , automatic gluing and folding , automatic counting , automatic piling and outputting .

4. Average sticking speed is 150m/min , max speed is 220m/min

5. High efficiency , save energy , enviromental is out pursuit

6. Automatically finish the top folding and middle folding, meanwhile finish the glue belt glue of the upper and down part, save labor and time, suitable range is wide, can be used in different size of carton, convenient to adjust

Sheet Corrugation Corrugated Box Folder Gluer Machine

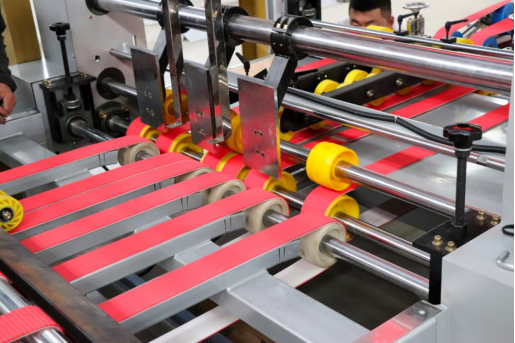

Feeding section

1. Vacuum suction feeding to feed warping paperboard easily.


2. Quality electromagnetic clutch and brake adopted, feeding section is controlled independent, operation easily.


3. Scorer wheel adjustable, suit for 2-8mm thick paperboard.

Gluing and Folding section

Solid Beam Structure , not square tube !!
1. Simple structure and high reliability, glue quantity adjustable, cleaning easily.

2. Stainless steel glue wheel adopted,

long life and saving glue cost.
3. Improved quality rubber belt adopted, automatic folding.

 Sheet Corrugation Corrugated Box Folder Gluer Machine
Sheet Corrugation Corrugated Box Folder Gluer Machine

Counter and stacker section:

1. Stacking and counting are simple and reliable.
2. Digital control, operation easily and reliable, No-stop put in data and automatic counting.
3. With rectification function.
4. Paperboard counting and put out by pneumatic, stable and quickly.

Packing and Shipping

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road

transportation and various types of weather conditions. A full set of maintenance and operation

manuals is included.
