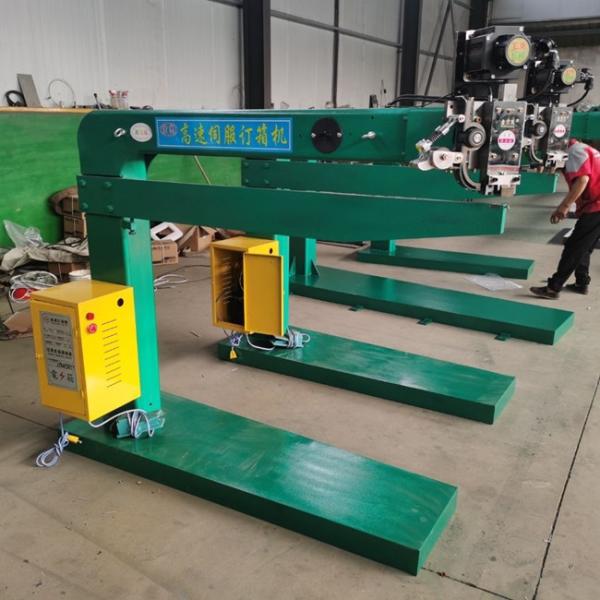

1400 Double Servo Manual Corrugated Carton Box Stitching Machinery

Box stitching machine adopts double eccentric wheel structure,pressure angle used suitable cutter point.

The interchangeability assembling parts adopt rolling bearing so machine run more stable and faster,

stitch fixable,long time use life.

FEATURES:

【1】The biggest advantage: It can solve the problem of the forming effect of the carton caused by the

inaccurate slotting and pressing of the carton (ie, the scissors mouth of the carton or the problem of small seams).

This problem is currently a big problem that cannot be solved on automatic nailing machines and automatic nailing machines.
【2】It can be nailed with single nails/, double nails//, and reinforced nails (// / / //The two ends are double nails and the middle part is a single nail) at one time, which can meet the different requirements of different customers for different types of nails.
【3】It only takes one minute to change the size of the carton and adjust the nail distance of the carton, which greatly saves time and is easy to operate.
【4】It can be nailed single-piece carton or double-piece formed carton, one machine can be used for two purposes.
【5】This machine can reduce the labor intensity of employees and greatly improve the work efficiency and enthusiasm of employees.

Carton stapling machine is painstaking designed by combing the advantages of the same products at home

and abroad which has the advantages such as novel appearance,gentle movement,stable operation,firm

stapling and long service life.

1. Corrugated box wire stitching machine use the servo motor and drive emergency stop,emergency start

advantage instead of the clutch,increase the machine accurate and use life.

2. Speed adjust function 150-450stapler /min speed adjust,so not control worker skill.

3. Machine head structure easy,and convenience maintain,knives use the alloy steel connect bar use the bear connect,reduce wear,and increase use life.

4. It can do single nail,double nail and strengthen nail complete in one time,can be suitable for different kinds of customer requirements of stitching.

5. Size 900mm,1200mm,1400mm,1600mm,1800mm,2000mm

6. Speed 150-450nail/min

6. wire proper: 16#17#.18#

7. power: 220volt 800w

【1】Dual servo drive, accurate precision, reduced mechanical transmission part, which can effectively

reduce the failure rate of the machine.
【2】Taiwan Weilun touch screen operation, the parameters (nail distance, number of nails, nail type) can

be changed easily and quickly.
【3】The whole control system adopts Siemens PLC control system.
【4】The bottom mold, the blade is made of Japanese tungsten steel (wear-resistant)
【5】The whole set of nail heads is imported from Taiwan, all made of special mold steel, and computer

gongs are precisely machined

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road

transportation and various types of weather conditions. A full set of maintenance and operation

manuals is included.
