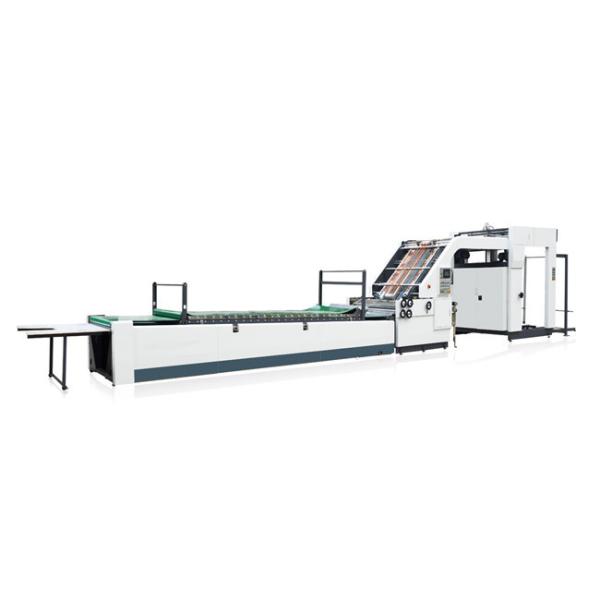

High Speed Corrugated Board Automatic Flute Laminating Machine for Paper 3T
High Speed Corrugated Board Automatic Flute Laminating Machine for Paper 3T
High Speed Corrugated Board Automatic Flute Laminating Machine for Paper 3T
High Speed Corrugated Board Automatic Flute Laminating Machine for Paper 3T
High Speed Corrugated Board Automatic Flute Laminating Machine for Paper 3T
High Speed Corrugated Board Automatic Flute Laminating Machine for Paper 3T
High Speed Corrugated Board Automatic Flute Laminating Machine for Paper 3T
High Speed Corrugated Board Automatic Flute Laminating Machine for Paper 3T
High Speed Corrugated Board Automatic Flute Laminating Machine for Paper 3T
High Speed Corrugated Board Automatic Flute Laminating Machine for Paper 3T
High Speed Corrugated Board Automatic Flute Laminating Machine for Paper 3T
High Speed Corrugated Board Automatic Flute Laminating Machine for Paper 3T
Specifications
Brand Name :
IPACK
Model Number :
1450
Certification :
CE,ISO
Place of Origin :
Hebei province,China
MOQ :
1 sets
Price :
To be negotiated
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets/month
Delivery Time :
30-60days
Packaging Details :
Wooden case packaging(optional) or well packed plastic film packaing
Automatic grade :
Automatic
Weight :
About 3T
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support,Free spare parts
Type :
Laminating Machine
Size :
1450x1450mm
Speed :
12000pcs/hour
Description

High Speed Corrugated Board Automatic Flute Laminating Machine for Paper

Introduction


Automatic Flute laminating machine suitable for lamination of corrugated cardboard to paperboard, and
paperboard to paperboard. Automatic feeding of bottom sheet and normal front feeding of top sheet wth
flexible front gauge positioning to control the laminating precision. Stepless timing, novelty and beauty, easy
operation and high laminating precision. New equipment for producing the high quality cardboard, makes the
cardboard more striking, nice and high intensity. Used widely for packing food, wine bottle, electric appliance
and light industry products.
High Speed Corrugated Board Automatic Flute Laminating Machine for Paper 3T

Parameters

Model 1450 1650 1900 2200
Max size 1450*1450mm 1650*1650mm 1900*1900mm 2200*2100mm
Min size 450*450mm 450*450mm 500*500mm 500*500mm
Top paper 150-800gsm 150-800gsm 150-800gsm 150-800gsm
Bottom paper 300gsm-10mm 300gsm-10mm 300gsm-10mm 300gsm-10mm
Max speed 12000pcs/hour 12000pcs/hour 12000pcs/hour 12000pcs/hour
Power 20kw 20kw 22kw 22kw
Accuracy ±1mm ±1mm ±1mm ±1mm


Detailed Images

High Speed Corrugated Board Automatic Flute Laminating Machine for Paper 3T
High Speed Corrugated Board Automatic Flute Laminating Machine for Paper 3T
1. It adopts teeth rod to adjust the width of sheet, for easy adjustment and time saving.

2. Driving system is adopted with imported synchro-belt, running steadily and suitable in high speed running.

3. Conveying belt is made of imported PVC material, with long life using and good quality.

4. Sheet-pushing chain is adopted with imported double-row type, running steadily and not easy to distort.

5. It adopts timing control with frequency conversion, power-saving and automatic timing.

6. The machine is used to laminate paper board with board or A flute,B flute,E flute,F flute and 5-layer cardboard.

High Speed Corrugated Board Automatic Flute Laminating Machine for Paper 3T High Speed Corrugated Board Automatic Flute Laminating Machine for Paper 3T
High Speed Corrugated Board Automatic Flute Laminating Machine for Paper 3T High Speed Corrugated Board Automatic Flute Laminating Machine for Paper 3T
Packing and Shipping

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road

transportation and various types of weather conditions. A full set of maintenance and operation

manuals is included.

High Speed Corrugated Board Automatic Flute Laminating Machine for Paper 3T
Our Services


High Speed Corrugated Board Automatic Flute Laminating Machine for Paper 3T

Factory


High Speed Corrugated Board Automatic Flute Laminating Machine for Paper 3T
