Automatic Laminating Machine Corrugated Flute Gauge Cardboard Laminator

This machine is used for the lamination of top colorized sheets and bottom corrugated paper.

The machine features simple operation, less maintenance, high speed and lamination precision.

Characteristics:

1. Advanced automatic tracking technology, according to the size of the paper automatically adjust the relevant parameters, so that the machine is always running in the best condition

2. Unique front gauge positioning system, accuracy and the bottom paper never exceed; top paper exceed adjustable

3. Equipped with high precision high speed automatic feeder, strengthening type paper feeding device, feeding smoothly

4. Equipped with high precision high speed automatic feeder, strengthening type paper feeding device, feeding smoothly

5. Using the principle of offset printing machine side gauge positioning, error correction for about top paper stack and feeding process

6. Bottom paper using suction automatic feeding, can adjust wind strength in the touch screen, and is equipped with a belt humidifying function

7. Standby stack table can pile paper under non-stop situation, along the rail into the elevator, high working efficiency

8. Imported electrical components, to ensure the stability of the circuit system, PLC tracking technology, automatic fault alarm

9. Fully automatic glue supplementary system, can automatically replenish the loss of the amount of glue, and cooperated with the glue recycling

10. Independent water tank control cycle, ensure the bottom paper back dry, at the same time cleaning up roller, glue receive tank and back glue tank

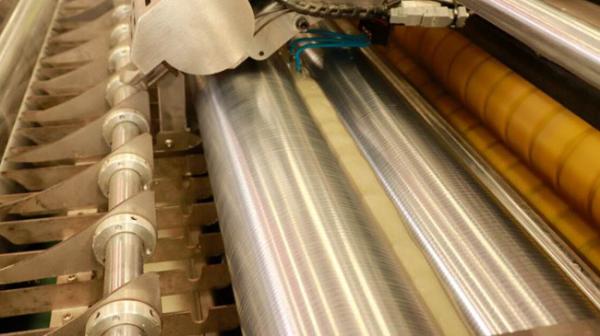

11. Single side adjustment of the roller pressure, and equipped with a dial gauge, the replacement of the bottom paper one-step-to-reach

1. Top sheet forwarded by automatic feeder on higher table is specially designed and the sheets can be piled up to 1.5m;

2. Bottom sheet is automatically feed and The two sheets are plied freely dispatched in high efficiency.

3. The machine is controlled by PLC which made feeding process smoother and more accurate;

4. Flexible front positioning can avoid bottom sheet exceeding the top sheet and adjust back and forth lamination of paperboard to bottom paperboard (above 350g/m2),and to A/B/C/D/E types of flute corrugated cardboard.

5. Automatic pasting mechanism to economize the paste consumption.

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road

transportation and various types of weather conditions. A full set of maintenance and operation

manuals is included.
