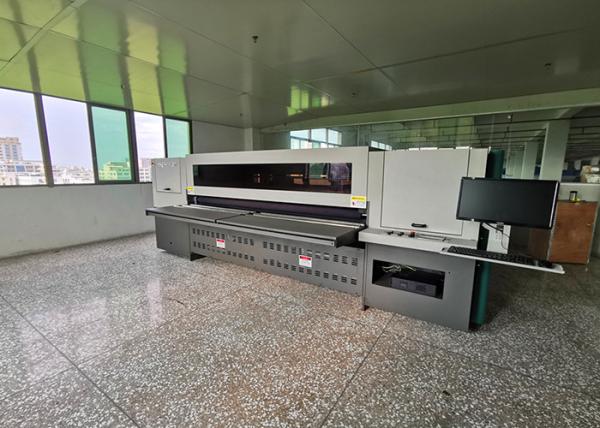

440㎡/h 300*360dpi Cardboard Box Printing Machine Piezo Printhead
440㎡/h 300*360dpi Cardboard Box Printing Machine Piezo Printhead
Specifications
Brand Name :
WONDERJET
Model Number :
WDR250-8A
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
OPTIONAL
Payment Terms :
T/T
Supply Ability :
50 SETS/M
Delivery Time :
1 M
Packaging Details :
WOODEN CASE 4350*1820*1650 MM
Model :
WDR250-8A
Printhead :
8 pieces
Ink type :
Special water based dye ink
Medium distance :
2mm-4mm
Printing resolution :
≥300*360 dpi
Printing efficiency :
max 460㎡/hour
Working environment :
15ºC-32ºC Indoor，Humidity 40%-70%
Color model :
Cyan,Magenta,Yellow,Black
Feeding mode :
Automatic leading edge feeding
Description

Mirco-Piezo Hightest Printhead Digital Corrugated Box Printing Machine Automated Operation

Description:

1. Using stronger servo motor with high precision reducer, higher precision, faster speed, more stable performance.

2. Use 6 grade super high precision gear and high precision cylindrical grinding power roller, drive more accurately.

3. Strong rail beam, Mute guide rail,Printing flat error less than 0.2mm, makes the print more stable and higher accuracy.

4. New printhead cleaning mode, automatic cleaning,saving ink, printing more frequency.

5.Print on-demand without creating waste ink,thus achieving lower consumption and better environmental protection.

6. Rapid for the orders change. Lower printing cost to run from 1+ sheet. Instant service to the customer for rush orders.

Article NO. WDR250-8A
Printhead Piezoelectric high-procision printhead
Printhead quantity 8 pieces
Ink type Special water base dye ink
Color model Cyan,Magenta,Yellow,Black
Medium distance 2mm-4mm
Printing resolution ≥300*360dpi
Printing efficiency Max 460㎡/hour
Printing format Below 2500mm*1350mm under auto feeding
Drying speed Liner-board can be dry once print out
Work environment 15ºC-32ºC Indoor,Humidity 20%-70%
Ink supply Automatic ink supply
Feeding mode Automatic feeding
Material thickness 2mm-35mm(max can be ordered to 50mm,if between 1.2mm and 2mm may need manual feeding)
Operate system Professional RIP/Printing system,Win7 with 32 bit
Power supply About 4.5 KW power:AC220±10%,50-60HZ
Machine size L*W*H:3175*4500*1280(mm)
Weight NW:2800KGS ; GW: 3000KGS

Product Machine features

1.lead edge feeding system. (lead edge vacuum roller feeding system.)


2.top / bottom printing system.


3.single or dual slot system


4.high quality material with suitable fittings is used for the machine.


5.the drive gears adopt alloy steel, and then heated to ensure hardness, with grinded surface.


6all the lower feeding roller used a bigger diameter to increase touch area of paper, to ensure fluent processing and accurate printing.


7there are oilless bearings between frame and eccentric gear seat to reduce wear-out of frame and increase machine using life.


8.we adopt no-key connection(means swelling connection) to reduce printing inaccuracy.


9.according to international security standard, all the parts are with safety angles and all the motors with protective cover.


10.all the rollers adopt superior material with hardness and thickness chrome and two times grinding, and passed balance testing.

Reference Data Sheet of Wonder Printer

Printing mode Model Material Material size
(mm)		 Printing size
(mm)		 Solution Printing speed Printhead Production efficiency Remark
Muti -pass WD250-8A Y/W kraft liner board 2500*1350 2500*1350 ≧180*360dpi max 440㎡/H EPSON 100-350(PCS/H)
WD250-16A Y/W kraft liner board 2500*1350 2500*1350 ≧180*360dpi max 780㎡/H EPSON 200-700(PCS/H)
WDR250-8A Y/W kraft liner board 2500*1350 2500*1350 ≧300*360dpi max 460㎡/H RICOH 120-450(PCS/H)
WDR250-16A Y/W kraft liner board 2500*1350 2500*1350 ≧300*360dpi max 820㎡/H RICOH 240-900(PCS/H)
With drying system can change inks to print on semi coated board
WDUV250-12A Y/W kraft liner board 2500*1350 2500*1350 ≧360*600dpi max 230㎡/H RICOH 80-250(PCS/H)
WDUV250-24A Y/W kraft liner board 2500*1350 2500*1350 ≧360*600dpi max 460㎡/H RICOH 120-450(PCS/H)
Single Pass WD200-24A Y/W kraft liner board 1800*2400 592*2400 360*180dpi
360*360dpi
360*720dpi		 max 0.9 m/s
max 0.6 m/s
max 0.3 m/s		 EPSON 1200-3600(PCS/H)
WD200-32A Y/W kraft liner board 1800*2400 790*2400 360*180dpi
360*360dpi
360*720dpi		 max 0.9 m/s
max 0.6 m/s
max 0.3 m/s		 EPSON 1200-3600(PCS/H)
WD200-48A Y/W kraft liner board 1800*2400 1185*2400 360*180dpi
360*360dpi
360*720dpi		 max 0.9 m/s
max 0.6 m/s
max 0.3 m/s		 EPSON 1200-3600(PCS/H)
WD200-64A Y/W kraft liner board 2200*2400 1580*2400 360*180dpi
360*360dpi
360*720dpi		 max 0.9 m/s
max 0.6 m/s
max 0.3 m/s		 EPSON 1200-3600(PCS/H)
WDR200-48A Y/W kraft liner board 1800*2400 638*2400 600*200dpi
600*300dpi
600*600dpi		 max 2.2 m/s
max 1.6 m/s
max 0.8 m/s		 RICOH 3200-12000(PCS/H)
With drying system can change inks to print on semi coated board
WDR200-64A Y/W kraft liner board 1800*2400 851*2400 600*200dpi
600*300dpi
600*600dpi		 max 2.2 m/s
max 1.6 m/s
max 0.8 m/s		 RICOH 3200-12000(PCS/H)
With drying system can change inks to print on semi coated board
WDR200-92A Y/W kraft liner board 1800*2400 1223*2400 600*200dpi
600*300dpi
600*600dpi		 max 2.2 m/s
max 1.6 m/s
max 0.8 m/s		 RICOH 3200-12000(PCS/H)
With drying system can change inks to print on semi coated board
WDR200-124A Y/W kraft liner board 2200*2400 1649*2400 600*200dpi
600*300dpi
600*600dpi		 max 2.2 m/s
max 1.6 m/s
max 0.8 m/s		 RICOH 3200-12000(PCS/H)
With drying system can change inks to print on semi coated board
Single Pass WDUV200-80A
All type of cardboard		 1800*2400 851*2400 600*300dpi
600*600dpi		 max 1.5 m/s
max 0.8 m/s		 RICOH 2500-6300(PCS/H)
Muti -pass WDUV320-16A Building materials min 320*320/pcs
max 500*600/pcs		 min 320*320/pcs
max 500*600/pcs		 ≧360*600dpi max 1500 pcs/H RICOH 1000-1500(PCS/H) 6 pcs
Single Pass WDUV060-24A Building materials 600*600 319*600 ≧300*600dpi max 1.5 m/s RICOH
WDUV060-28A Building materials 600*600 372*600 ≧300*600dpi max 1.5 m/s RICOH
WDUV060-32A Building materials 600*600 425*600 ≧300*600dpi max 1.5 m/s RICOH
WDUV060-36A Building materials 600*600 478*600 ≧300*600dpi max 1.5 m/s RICOH
Remark 1,Above material size is under auto-feeding situation,the length is no limit if by maual feeding with scaning machine;
2,Auto drying system,auto varnish coating machine and auto slotting machine is optional to marched digital printer;
3,There're special water-based ink,waterproof latex ink and UV curable ink etc.

About us

In order to further meet the market demand of customers and improve the service scheme, Shenzhen Wande has been developing various supporting facilities, including automatic corrugated board polishing machine wdgy180 / wdgy250, automatic high-quality trimming and grooving indentation machine wdkc250 / wdkc310, special water-based dye ink, special UV curing ink, special water-based varnish, etc.
The company will solve customer environmental problems, production efficiency issues for the company's development direction, continue to provide customers with more environmentally friendly, energy-saving, more stable, more efficient packaging and printing equipment!

440㎡/h 300*360dpi Cardboard Box Printing Machine Piezo Printhead

440㎡/h 300*360dpi Cardboard Box Printing Machine Piezo Printhead

©Above information just for reference, Shenzhen Wonder Printing System Co., ltd keep all ringhts reserved.

Subject to change without notice, final information subject to the contract.
