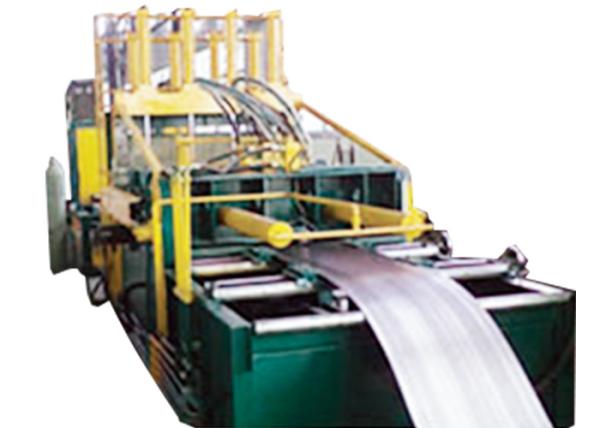

Economic Corrugated Steel Panel Roll Forming Machine 1.0 - 1.5 Mm Thickness
Economic Corrugated Steel Panel Roll Forming Machine 1.0 - 1.5 Mm Thickness
Specifications
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Corrugated Sheet Length :
300~2000（mm）
Corrugated Sheet Width :
300~1300（mm）
Molding Efficiency :
3 pieces / minute
Total Weight :
15T
Ripple Pitch Error :
± 0.2（mm）
Reinforcement Slot Number :
≤ 2
Brand Name :
Tengju
Packaging Details :
container packaging
Supply Ability :
Two machines per month
Description

Introduction

As a common power system power transmission and transformation equipment, the transformer is mainly composed of a core, a winding and a fuel tank. During the working process of the transformer, since the iron core and the winding generate a large amount of heat, thus heat dissipation is required, and the main function of the oil tank is to dissipate heat. The transformer fuel tank has a tubular fuel tank, a flat oil tank and a corrugated oil tank. In contrast, the corrugated oil tank has better heat dissipation effect and therefore has a good application prospect.

Technical Parameters

Name Specification
Sheet Thickness 1.0~1.5(mm)
Corrugated Sheet Length 300~2000(mm)
Corrugated Sheet Width 300~1300(mm)
Corrugated Sheet Height 40~400±0.2(mm)
Corrugated Sheet Pitch 42~80±0.5(mm)
Reinforcement Slot Number ≤ 2
Reinforcing Rib Length ≤ Corrugated Sheet Width-16 mm
Non-perpendicular deviation of corrugated sheet from its base surface ≤ 1% of wave height
Ripple Pitch Error ± 0.2(mm)
Molding Efficiency 3 pieces / minute
Total Weight 15T
