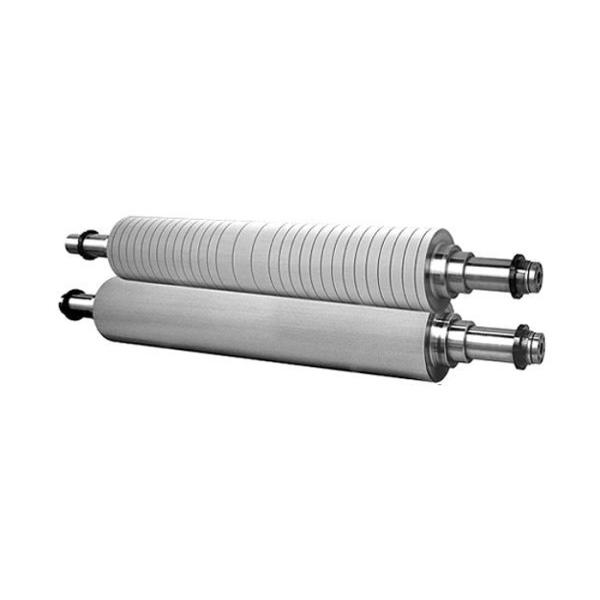

Chinese B flute Corrugated Roller Tungsten Carbide Plating Rolls

Introduction:

-The largest professional corrugated roller manufacturer in northern of China

-50CrMo refined forging steel supplied by the best manufacturer in China.

-A, C, B, E, F, G, N flute corrugated rolls

-Tungsten carbide corrugated roll and hard chrome corrugated roller

-American Praxair JP8000 HVOF tungsten carbide plating equipment

-American Praxair super-hard 1342 tungsten carbide powder

-Medium frequency quenching heating treatment machine makes the hardness of base steel more than HRC58.

-High precision and high performance CNC grinding machine equipped with Germany Siemens control system.

-We design the flute profile according to customer’s medium paper GSM, speed, FCT requirement.

-Tungsten carbide corrugated roll lifetime is 3-5 times longer than hard chrome roll because of its excellent wear-resisting property

-Our corrugated rollers has been exported to many countries such as Korea, Russia, Egypt, India, Thailand, Myanmar, etc.

Problem:

If the camber of corrugating roll is designed irrational, it will cause uneven local pressure, which leads to a series of problems such as poor lamination, inner liner frothing, heavy scoring on inner liner, corrugating paper rippling etc.

Our Solution:

Meijia,in accordance with the different customer needs and on-site situation, has developed special flute type,which circle parabola is adopted for the medium-high outline,solving the problems like collapsed flute,poor lamination,inner liner frothing,heavy scoring on inner liner from the very beginning.

Flute Profile

Almost every set of corrugating rolls are needed to be designed and customized separately according to the width, diameter, flute height, corrugated paper GSM, speed and cardboard physical index requirement.
