35 Million Meters 50CrMo 3.65mm C Flute Corrugating Rolls
35 Million Meters 50CrMo 3.65mm C Flute Corrugating Rolls
35 Million Meters 50CrMo 3.65mm C Flute Corrugating Rolls
35 Million Meters 50CrMo 3.65mm C Flute Corrugating Rolls
Specifications
Brand Name :
YH
Model Number :
C-2300-370
Place of Origin :
China
MOQ :
1 Set
Price :
$10000-$35000/set
Payment Terms :
T/T
Supply Ability :
60 Sets/month
Delivery Time :
50-75days
Packaging Details :
Wooden case
Material :
50CrMo precision forged alloy steel
Coating :
American Praxair super hard 1342 tungsten cabide powder 0.06-0.08mm
Width :
2300mm*370mm
Heating treatment :
Intermediate frequency quenching
Hardness :
>HRC58 after hardening
Harden layer depth :
8-12mm
Micro hardness :
HV1250-1400
Flute type :
C flute 3.65mm
Warranty :
35million linear meters or 1 year, whichever comes first
Finishing :
Ra <0.6μm
Description

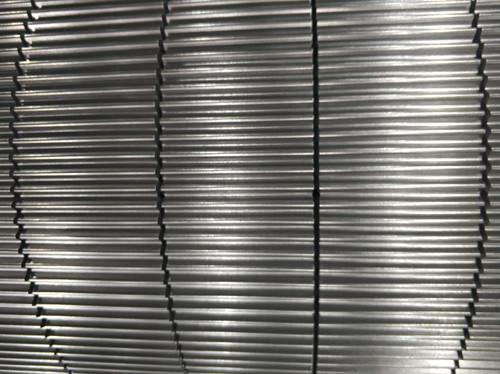

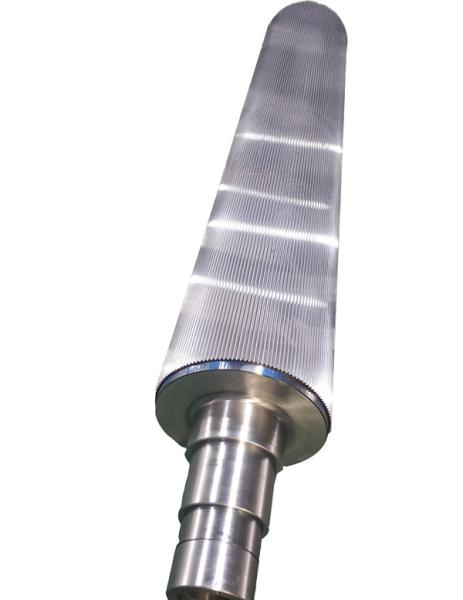

JS Corrugation Machine Parts C Flute Tungsten Carbide Corrugating Rolls

1. Features of Tungsten Carbide Corrugating Roll

a. Tungsten carbide corrugated roller has excellent wear resistance and low flute height. Moreover, it will not reduce the compressive strength of the finished corrugated board. A more optimized v-shape flute profile can be designed to increase the strength of the cardboard, reduce the amount of the glue applied and save corrugated paper.

b. Tungsten carbide corrugated roller will never wear in theory, and can ensure the production of high quality finished corrugated board’s durability

c. The service life of tungsten carbide corrugated roller can reach at least 35 million meters, reducing the number of maintenance and replacement times, saving manpower, material and financial resources.

d. Tungsten carbide roller’s wear resistance is good, and it’s tungsten carbide coating adopts special removing process, so corrugated roller substrate can not be damaged, and corrugated roller can be used for many times with repairing.

35 Million Meters 50CrMo 3.65mm C Flute Corrugating Rolls

35 Million Meters 50CrMo 3.65mm C Flute Corrugating Rolls

2. Strict Test to Keep Improving

Before and after the surface treatment including tungsten carbide plating or hard chrome coating of corrugating rolls, it is needed to check the size, hardness, precision, flute profile, and simulation feeding paper. Special projector is used to check the flute profile and feeding different GSM paper to ensure the performance of corrugating rolls.

3. Flute Profile

Flute Profile Height(mm) Pitch(mm) Flutes/300mm T.U.R
A UV 4.5-5.0 8.0-9.5 34±3 1.45-1.52
C UV 3.5-4.0 6.8-7.9 41±3 1.37-1.47
B UV 2.5-3.0 5.5-6.5 50±4 1.33-1.41
E UV 1.1-2.0 3.0-3.5 93±6 1.24-1.36
F UV 0.8-1.0 2.2-3.2 115±20 1.19-1.25
G UV 0.6-0.8 1.8-2.8 136±20 1.15-1.20
N UV 0.4-0.6 1.2-2.2 193±55 1.10-1.15
Others UV Customized Design Design Design
