C Flute Corrugated Rollers Corrugation Machine Parts
C Flute Corrugated Rollers Corrugation Machine Parts
C Flute Corrugated Rollers Corrugation Machine Parts
C Flute Corrugated Rollers Corrugation Machine Parts
Specifications
Brand Name :
YH
Model Number :
A-1400-325
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
$5000-$20000/set
Payment Terms :
T/T
Supply Ability :
60 Sets/month
Delivery Time :
50-75days
Packaging Details :
Wooden case
Material :
50CrMo precision forged alloy steel
Coating :
Hard Chrome 60-80μm
Heating treatment :
Intermediate frequency quenching
Hardness :
>HRC58 after hardening
Harden layer depth :
8-12mm
Warranty :
6-10million meters
Finishing :
Ra <0.6μm
Refurbish :
3-4 times
Description

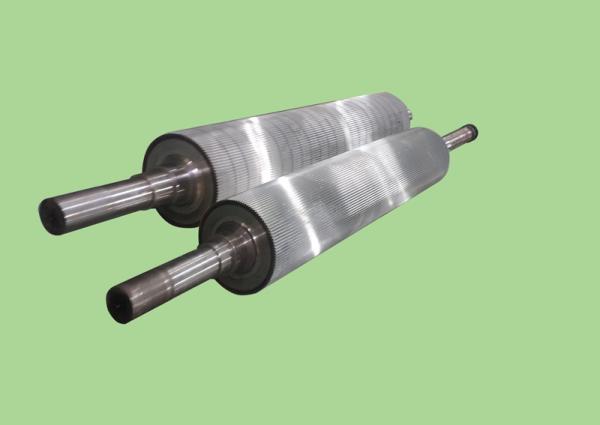

C Flute Corrugation Machine Parts Corrugated Rollers Hard Chrome Coating

Introduction

--The largest professional corrugated roller manufacturer in northern of China

--50CrMo refined forging steel supplied by the best manufacturer in China.

--A, C, B, E, F, G, N flute corrugated rolls

--High Speed can reach to 200m/min

--Hard Chrome 0.06-0.08mm

--Medium frequency quenching heating treatment machine makes --the hardness of base steel more than HRC58 and harden layer 8-12mm.

--High precision and high performance CNC grinding machine equipped with Germany Siemens control system.

--We design the flute profile according to customer’s medium paper GSM, speed, FCT requirement. The flute profile is more reasonable, suitable to customer’s machine

--Our corrugated rollers has been exported to many countries such as Korea, Russia, Egypt, India, Thailand, Myanmar, etc.

--Supply corrugated rollers for all kinds of corrugator line such as Fosber, BHS, BW Paper System, K&H, HSIEH HSU,Fuli, Wanlian, TCY, Champion, West River, Mingwei and so on.

C Flute Corrugated Rollers Corrugation Machine Parts

Rigorous for Precise Grinding

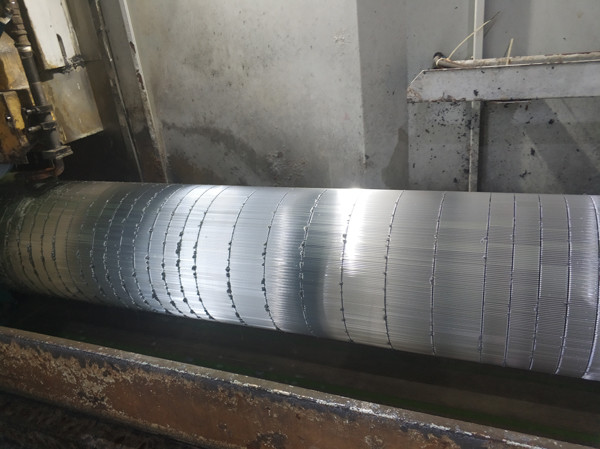

After heat treatment and the cutting slots, the roller shall be put on high precision automatic CNC grinding machine to do finish grinding. By grinding wheel grind each flute several times until the accuracy is within our technical permitted requirement. The Siemens control system play a key role in guarantee the accuracy.

C Flute Corrugated Rollers Corrugation Machine Parts

Precision Index of Corrugation Machine Parts Hard Chrome Corrugated Roller

Item Index
Gear teeth height limits of deviation ≤ 0.01mm
Addendum circle run out tolerance ≤ 0.02mm
Gear teeth width limits of deviations ≤ 0.015mm
Tooth profile limits of deviations ≤ 0.01mm
Gear lateral face counter shaft parallelism ≤ 0.01mm
Tip cylinder element linear ≤ 0.01mm
Gear teeth division limits of deviations ±10"
Smooth finish Ra<0.6µm

C Flute Corrugated Rollers Corrugation Machine Parts

Flute Profile

Almost every set of corrugating rolls are needed to be designed and customized separately according to the width, diameter, flute height, corrugated paper GSM, speed and cardboard physical index requirement.

Flute Profile Height(mm) Pitch(mm) Flutes/300mm T.U.R
A UV 4.5-5.0 8.0-9.5 34±3 1.45-1.52
C UV 3.5-4.0 6.8-7.9 41±3 1.37-1.47
B UV 2.5-3.0 5.5-6.5 50±4 1.33-1.41
E UV 1.1-2.0 3.0-3.5 93±6 1.24-1.36
F UV 0.8-1.0 2.2-3.2 115±20 1.19-1.25
G UV 0.6-0.8 1.8-2.8 136±20 1.15-1.20
N UV 0.4-0.6 1.2-2.2 193±55 1.10-1.15
Others UV Customized Design Design Design

C Flute Corrugated Rollers Corrugation Machine Parts
