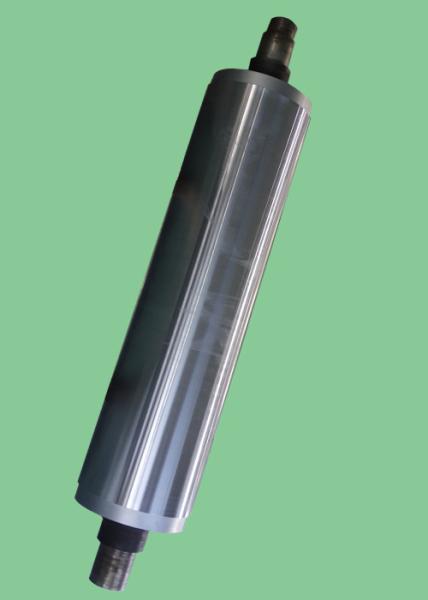

Corrugated Box Machine High Precision Corrugating Pressure Roll
Corrugated Box Machine High Precision Corrugating Pressure Roll
Specifications
Brand Name :
YH
Place of Origin :
Made in China
MOQ :
1 pcs
Payment Terms :
T/T
Supply Ability :
3000 pcs
Delivery Time :
30-45 days
Packaging Details :
Wooden Boxes
Material :
45# steel
Coating :
Hard Chrome
Coating thickness :
50-80μm
Refurbish times :
3-4 times
Steel wall thickness :
≥55mm
Heating treatment :
Intermediate frequency quenching >HRC55
Certification :
ISO9001
Price :
500-10000
Description

High-precision corrugating roller for corrugated box machine

Description of corrugating roller:

A, B, C corrugated box corrugating machine with high-precision corrugating roller, used for carton corrugating machine. The upper and lower corrugated (corrugated, corrugated) rolls of the single-sided machine

Specifications of Pressure Roll:

Product name Pressure roll
Application Single facer, corrugator machine
Raw material 45# Steel
Heating treatment Intermediate frequency quenching
Hardness ≥HRC 55
Harden Layer ≥7mm
Coating Hard chrome 0.05-0.08mm
Diameter 50-500mm
The roller surface length 100-4000mm
Cylinder run-out accuracy ≤0.02mm
Cylindricity accuracy ≤0.015mm
Dynamic balancing accuracy grade G2.5 G2.5

Features of corrugating roll:

1. Using advanced heat treatment and electroplating technology, as well as high-quality 48CrMo alloy steel forgings, we can provide various rollers with high precision, high hardness and long life.
2. Adopt computer-aided design and scientifically set various parameters to ensure economical, reliable and reasonable quality specifications.
3. It has a large CNC corrugated roller precision grinder group, which is suitable for corrugated rollers.
4. Computer control
5. Choose high-quality 48CrMo, 50CrMo alloy steel forgings.
It adopts German advanced technology for quenching, surface hardening frequency> 7mm, hardness> HRC58-60 (HS73-80), uniform hardness, no soft zone
6. We provide repair service for old corrugated paper rolls at any time
