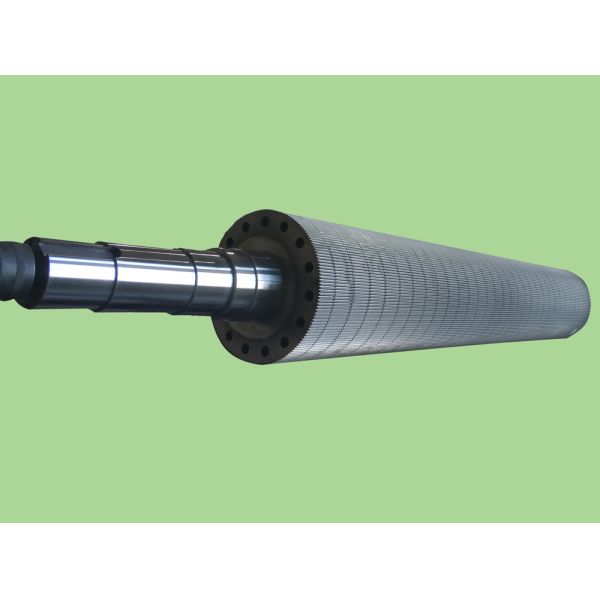

600mm Diameter HRC62 12mm E Flute Corrugated Roller
600mm Diameter HRC62 12mm E Flute Corrugated Roller
Specifications
Brand Name :
YH
Place of Origin :
Made in China
MOQ :
1set
Payment Terms :
T/T
Supply Ability :
1500 sets per year
Delivery Time :
60-90 days
Packaging Details :
Wooden Boxes
Certification :
ISO9001
Material :
50CrMoA alloy steel
Coating :
American Praxair super hard 1342 tungsten cabide powder 0.06-0.08mm
Heating treatment :
Intermediate frequency quenching
Hardness :
HRC60-62 after hardening
Harden layer depth :
8-12mm
Micro hardness :
HV1250-1400
Warranty :
30million linear meters or 1 year, whichever comes first
Finishing :
Ra <0.6μm
Description

Corrugated Metal Roll E Flute Corrugated Roller

1.Specification of Corrugated Metal Roll

Product name Corrugating rolls, corrugated roller
Material 50CrMo
Application Single facer, corrugator machine
Diameter 200-600mm
Width 1000-2800mm
Flute Profile A, C, B, E, F, G, N, O
Heating Treatment Intermediate frequency quenching treatment
Hardness ≥HRC58 after heating treatment, harden layer 8-12mm
Coating Tungsten carbide, hard chrome 0.06-0.08mm
Corrugator line BHS, Fosber, BW Paper System, Hsieh Hsu, K&H, JS, Fuli, Wanlian, Taiwan Mingwei, Chinese Mingwei, Meiguang, Dongguang, Dpack, Xinguang, Xieyang, Shengli, Indian machine, etc.

2.Precision Index of E Flute Corrugated Roller

Item Index
Gear teeth height limits of deviation ≤ 0.01mm
Addendum circle run out tolerance ≤ 0.02mm
Gear teeth width limits of deviations ≤ 0.015mm
Tooth profile limits of deviations ≤ 0.01mm
Gear lateral face counter shaft parallelism ≤ 0.01mm
Tip cylinder element linear ≤ 0.01mm
Gear teeth division limits of deviations ±10"
Smooth finish Ra<0.6µm

600mm Diameter HRC62 12mm E Flute Corrugated Roller
