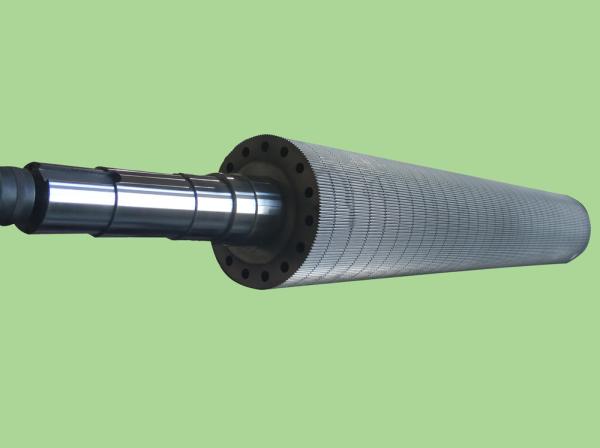

HRC59 Tungsten Carbide A Flute Corrugation Machine Parts
HRC59 Tungsten Carbide A Flute Corrugation Machine Parts
Specifications
Brand Name :
YH
Model Number :
A-2300-400
Place of Origin :
China
MOQ :
1 Set
Price :
$10000-$35000/set
Payment Terms :
T/T
Supply Ability :
60 Sets/month
Delivery Time :
50-75days
Packaging Details :
Wooden case
Material :
50CrMo precision forged alloy steel
Coating :
American Praxair super hard 1342 tungsten cabide powder 0.06-0.08mm
Size :
2300mm*400mm
Heating treatment :
Intermediate frequency quenching
Hardness :
HRC59-62 after hardening
Micro hardness :
HV1250-1400
Flute type :
A flute 4.0mm
Warranty :
35million linear meters or 1 year, whichever comes first
Finishing :
Ra <0.6μm
Refurbish :
3-4 times
Description

Tungsten Carbide A Flute High Speed Corrugation Machine Parts

Introduction

-The largest professional corrugated roller manufacturer in northern of China

-50CrMo refined forging steel supplied by the best manufacturer in China.

-A, C, B, E, F, G, N flute corrugated rolls

-Tungsten carbide corrugated roll and hard chrome corrugated roller

-American Praxair JP8000 HVOF tungsten carbide plating equipment

-American Praxair super-hard 1342 tungsten carbide powder

-Medium frequency quenching heating treatment machine makes the hardness of base steel more than HRC58.

-High precision and high performance CNC grinding machine equipped with Germany Siemens control system.

-We design the flute profile according to customer’s medium paper GSM, speed, FCT requirement.

-Tungsten carbide corrugated roll lifetime is 3-5 times longer than hard chrome roll because of its excellent wear-resisting property

-Our corrugated rollers has been exported to many countries such as Korea, Russia, Egypt, India, Thailand, Myanmar, etc.

HRC59 Tungsten Carbide A Flute Corrugation Machine Parts

Flute Profile

Almost every set of corrugating rolls are needed to be designed and customized separately according to the width, diameter, flute height, corrugated paper GSM, speed and cardboard physical index requirement.

Flute Profile Height(mm) Pitch(mm) Flutes/300mm T.U.R
A UV 4.5-5.0 8.0-9.5 34±3 1.45-1.52
C UV 3.5-4.0 6.8-7.9 41±3 1.37-1.47
B UV 2.5-3.0 5.5-6.5 50±4 1.33-1.41
E UV 1.1-2.0 3.0-3.5 93±6 1.24-1.36
F UV 0.8-1.0 2.2-3.2 115±20 1.19-1.25
G UV 0.6-0.8 1.8-2.8 136±20 1.15-1.20
N UV 0.4-0.6 1.2-2.2 193±55 1.10-1.15
Others UV Customized Design Design Design
