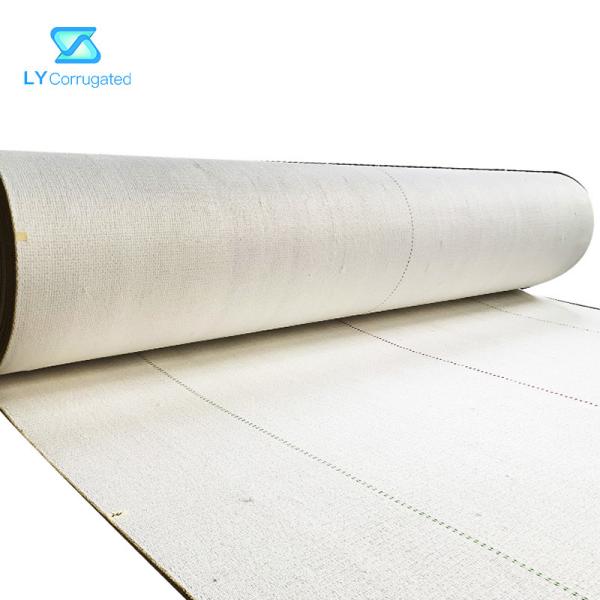

Double Face Aramid Cotton Conveyor Belt System Anti Collision Edge 8.8mm Thick
Double Face Aramid Cotton Conveyor Belt System Anti Collision Edge 8.8mm Thick
Specifications
Brand Name :
Lycorrugated
Model Number :
EDGE REINFORCEMEN FCH-FZ
Certification :
CE, ISO, TUV, SGS
Place of Origin :
Guangdong,China
MOQ :
1 Set
Price :
Factory Price
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
80000 meters per year
Delivery Time :
30-35 days
Packaging Details :
film，Carton
STEAM LM2-H :
6.560
MOISTURE ABSORPTION /RELEASE RATIO :
129%
BREAKING STRENGTH KG/M :
30000
NEIGHT KG/M2 :
7.3
THICKNESS mm :
8.8±0.3
WIDTH mm :
1400-3300
FLEXIBILITY LONGITUDINAL :
0.9%/180℃
Thermal Endurance :
180℃
FRICTION FACTOR :
0.45
Description

Anti-Collision Edge 8.8mm Thickness Aramid Cotton Conveyor Double Facer Belt

Performance Index:

MODEL

EDGE REINFORCEMEN

FCH-FZ
NEIGHT KG/M2 7.3
THICKNESS mm 8.8±0.3
WIDTH mm 1400-3300
THERMAL ENDURANCE℃ 180℃
FRICTION FACTOR 0.45
BREAKING STRENGTH KG/M 30000
MOISTURE ABSORPTION /RELEASE RATIO 129%
STEAM LM2-H 6.560
FLEXIBILITY TRANSVERSE 0.77%/180℃
FLEXIBILITY LONGITUDINAL 0.9%/180℃

Weaving technic: multi-layer single filing

Material: polyester yarn, polyester filament, Tencel and Kevlar

Feature: weaving texture clear, neat edge, stable dimension, heat and pressure-resisting , anti-static, outstanding traction, surface and seam-sealing even.

Great absorbency, drying and anti- static enable corrugated board transport flawlessly and efficiently in production line

Lifetime: 80 million meter service length in laboratory test condition

Feature:

1, The first domestic machine capable of producing a conveyor belt with a large width of 3300 mm

2, Obtained a patent for the anti-collision edge

3, The unique Company participating in the domestic industry standard customization of conveyor belts
4, The surface of the conveyor belt is made of Austrian imported Tencel, which improves water absorption and air permeability by 7.8%
FAQ

Q1: How long is the liftime of the conveyor belt?

A: Under normal circumstances (not operational error or mechanical failure), it can be used for 80million meters or more.

Q2: How about the fastest trial speed?

A: 330m/min.

Q3: Lead time?

A: Generally, 30-45 days. If the customer needs urgently, the delivery period can be shortened.

Q4: Why is the price not the lowest among the industry?

A: The product process is different. Our factory has participated in the formulation of national standards, and the product has obtained a patent for collision avoidance.

Q5: What production line has our conveyor belt used?

A: BHS, Marquip, Mitsutbishi, Isowa, Mingwei, Fuli, Agnati and etc…
