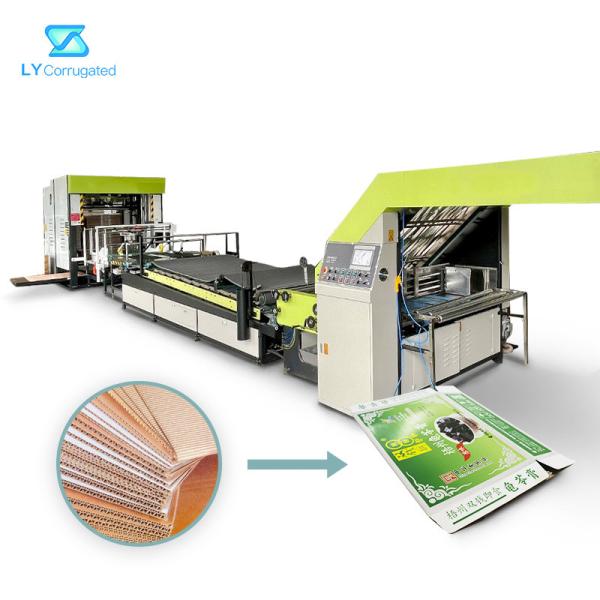

Deplux Packing Carton Box Machine , 148m/Min Flute Laminator Machine
Deplux Packing Carton Box Machine , 148m/Min Flute Laminator Machine
Deplux Packing Carton Box Machine , 148m/Min Flute Laminator Machine
Deplux Packing Carton Box Machine , 148m/Min Flute Laminator Machine
Deplux Packing Carton Box Machine , 148m/Min Flute Laminator Machine
Deplux Packing Carton Box Machine , 148m/Min Flute Laminator Machine
Specifications
Brand Name :
Lycorrugated
Model Number :
1450
Certification :
CE, ISO ,TUV, SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Factory Price
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 sets per Year
Delivery Time :
30-35 work days
Packaging Details :
case
Product :
Cardboard Laminator
Max. working speed :
148m/min
Max. machine speed :
Lamination part 16000 pcs/hr Stacker 12000 pcs/hr
Lamination error :
±0.5mm to ±1.0 mm
Max paper size :
1450x1300mm
Min paper size :
360x380mm
Machine power :
16.6kw+8.4kw
Machine size(L×W×H) :
20660×2200×2600mm
Description

Carton Box Machine Flute Laminator For Corrugated Deplux Grey Cardboard

Machine Function:

From high speed feeding, gluing, laminating, pressing to flip flop stacking and automatic delivery, it completes the whole lamination job by just one time. It fundamentally solve the original tedious and complicated process of flute lamination job, substantially decreases the production’s transition step and labor intensity thus to save companies’ operation cost.

Product Parameter:

MODEL 145
Max paper size

1450x1300mm standard

1450*1450mm optional
Min paper size 360x380mm
Top sheet thickness 128g/㎡-450 g/㎡
Bottom sheet thickness

0.5mm-10mm

Sheet to sheet lamination:250+gsm
Max. working speed 148m/min
Max. machine speed

Lamination part 16000 pcs/hr

Stacker 12000 pcs/hr
Lamination error ±0.5mm to ±1.0 mm
Machine power 16.6kw+8.4kw
Actual power 11kw
Machine size(L×W×H) 20660×2200×2600mm
Machine weight 7500kg+4800kg

Deplux Packing Carton Box Machine , 148m/Min Flute Laminator MachineDeplux Packing Carton Box Machine , 148m/Min Flute Laminator Machine
