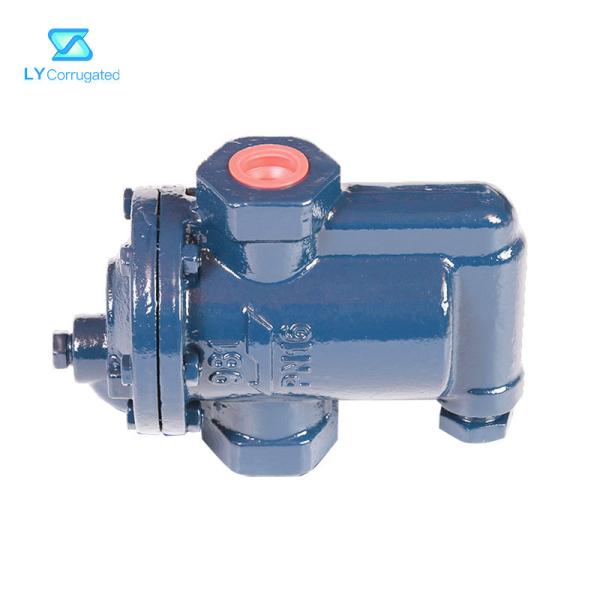

981 982 Inverted Bucket Type Steam Trap 2.4MPa Pressure Stainless Steel Material
981 982 Inverted Bucket Type Steam Trap 2.4MPa Pressure Stainless Steel Material
981 982 Inverted Bucket Type Steam Trap 2.4MPa Pressure Stainless Steel Material
981 982 Inverted Bucket Type Steam Trap 2.4MPa Pressure Stainless Steel Material
Specifications
Brand Name :
LY Corrugated
Model Number :
Steam Trap
Certification :
CE、ISO、TUV、SGS
Place of Origin :
China
MOQ :
1 Piece
Price :
US $ 115-125
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5000 Piece/Pieces Per Year
Product Name :
Steam Trap
Tested Pressure of Body :
2.4MPa
Degree of Subcooling :
<= 3 Degree Centigrade
Highest Back Pressure Rate :
90%
Valve Seat, Valve Spool :
Hard Chrome Steel/ Stainless Steel
Normal Pressure :
1.6MPa
Description

981 982 Inverted Cylinder Steam Trap For Corrugated Cardboard Production Line

Normal Pressure
1.6MPa
Highest Working Temperature
230 degree centigrade
Tested Pressure of Body
2.4MPa
degree of subcooling
<= 3 degree centigrade
Highest Permission Temperature
250 degree centigrade
Highest Back Pressure Rate
90%
Valve Body, Valve Deck
HT200
Inverted Cylinder Lever
Stainless Steel
Valve Seat, Valve Spool
Hard Chrome Steel/ Stainless Steel
Filter Screen
Stainless Steel

Steam Trap

Cobalt-chromium-tungsten alloy was used as sealing surface. Long service life seat and spherical valve core
Adopt high quality alloy, wear resistance and corrosion resistance, durable.
Air can effectively prevent steam and air blockage if it does not leak through the drain hole in the inverted cylinder.
Easy to maintain-the internal parts are stainless steel, all installed on the valve seat. Equipped with filter, easy to maintain.
