Solar Off Grid Power Supply Energy Storage System 51.2V 5KWH
Solar Off Grid Power Supply Energy Storage System 51.2V 5KWH
Solar Off Grid Power Supply Energy Storage System 51.2V 5KWH
Solar Off Grid Power Supply Energy Storage System 51.2V 5KWH
Specifications
Place of Origin :
Guangdong, China
Model Number :
CPW5000
Packaging Details :
wooden packing
Supply Ability :
50 Unit/Units per Month
MOQ :
50 units
Price :
$1,600.00/units >=50 units
Battery Type :
Li-ion(LFP)
Nominal Voltage :
51.2V
Voltage Range :
45~57.6V
Operating Temperature :
0~55℃
Storage Temperature :
-15℃~60℃
Humidity :
5%~95%
Product Weight :
63kg
Enclosure Protection Rating :
IP20
Description
Product Specification
Brief Introduction :

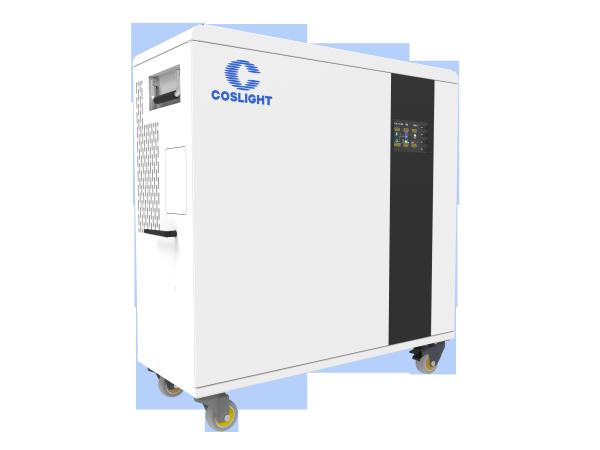

CPW series is an integrated battery system for backup protection when the grid goes down.And it can be charged by either electricity from your utility or solar power. CPW has four working modes: SOL(Solar First), UEI(Utility First),SBU(Solar-Battery-Utility),SUB(Solar-Utility -Battery). These working modes are described refer to the setting part of user manual.
Models
CPW5000
Battery
Nominal Voltage
51.2V
Voltage Range
45~57.6V
Capacity
5KWH
Max.discharge rate
1C
Max.charge rate
1C
Battery Type
Li-ion(LFP)
AC Output
Rated Power
5000W
Surge Power
10000W
Output Voltage
220/230/240Vac
Output Current
22A
Rated Frequency
50/60Hz
VTHD
＜3%
Output Wave
Pure Sine Wave
Output Type
Euro Round Socket×2+Terminals
Max. Efficiency
93%
AC Input
AC Input Voltage Range
170-280VAC
AC Input Frequency
50/60Hz
Max AC Charge Current(Battery)
30A(0~60A Adjustable)
PV Input
Max. PV Power(Recommended)
6000W
Max. PV Voltage
450V
MPPT Range
120V~430V
Max PV Charge Current(Battery)
100A
Operating Conditions
Operating Temperature
0~55℃
Storage Temperature
-15℃~60℃
Humidity
5%~95%
Cooling Strategy
Fan
Product Weight
63kg
Dimension [W x H x D]
585*606*230mm
Packing
wooden case
Packing Dimension [W x H x D]
630*738*275mm (75KG)
Enclosure Protection Rating
IP20
Communication
WIFI/RS485
Warranty
2 years
