SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine
SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine
SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine
SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine
SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine
SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine
SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine
SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine
SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine
SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine
SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine
SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine
SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine
SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine
SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine
SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine
Specifications
Brand Name :
GIENI
Model Number :
GNF
Certification :
CE
Place of Origin :
Shanghai
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1
Delivery Time :
45
Packaging Details :
plywood case
Type :
Cosmetic Tube Filling machine
Application :
foundation cream, hand cream, concealer, eyecream,lipgloss,etc
Driven Type :
Servo Driven, mechanical cem
Certificate :
CE Approved, according to customer
Outer Dimension :
1890*1083*2172mm
Voltage :
3P/380V
Capacity :
40pcs/min
Automatic Grade :
Automatic
Description

1800-2400pcs/hour SUS316L Automatic Tube Filling and Sealing Machine with Water Circulation

description

Application for Automatic Tube filling and sealing machine:

This machine can automatically do the below job:

Auto tube load,eyemark detect,filling,tube heat,tube sealing,end cut,date coding andfinished product convey out.

Tube loading adopts pneumatic, reliable and precise.

Rotary type tube center control and positioning by choosing sensor detect.

Material contacts adopt SUS316L, clean, safe and meet GMP standard.

Safety-door device, machine stops when open the door. No tube no filling, overload protection.

Technical Parameter for Automatic Tube filling and sealing machine:

Filling Range: 5-250ml

Filling Precision:≤±1%

Production capacity:1800-2400pcs/hour

Tube Dia:∮10-50mm

Tube Length:60-210mm

Power:5KW

Dimension:1900×850×1900mm

Packing Size: 2000*1220*1915mm

Weight:850kg

Process for Automatic Tube filling and sealing machine:

SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine

Main Configuration for Automatic Tube filling and sealing machine:

Item Name Brand
1 PLC Delta
2 Touch Screen Weinveiw
3 Converter Delta
4 Step Motor SIhai
5 Eyemark detect sensor Panasonic
6 Air Switch CHNT
7 Code Omron
8 Pneumatic Elements SMC

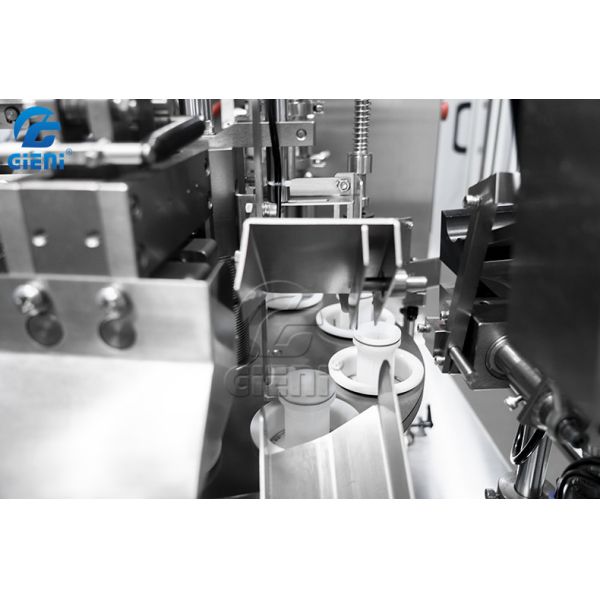

Rotary Design

SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine

Hot Air Heating

SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine

End Product Push Out

SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine

SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine

SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine
