Semi-automatic 18 Holes Eyebrow Pencil Heating Filling Machine
Semi-automatic 18 Holes Eyebrow Pencil Heating Filling Machine
Semi-automatic 18 Holes Eyebrow Pencil Heating Filling Machine
Semi-automatic 18 Holes Eyebrow Pencil Heating Filling Machine
Semi-automatic 18 Holes Eyebrow Pencil Heating Filling Machine
Semi-automatic 18 Holes Eyebrow Pencil Heating Filling Machine
Semi-automatic 18 Holes Eyebrow Pencil Heating Filling Machine
Semi-automatic 18 Holes Eyebrow Pencil Heating Filling Machine
Semi-automatic 18 Holes Eyebrow Pencil Heating Filling Machine
Semi-automatic 18 Holes Eyebrow Pencil Heating Filling Machine
Specifications
Brand Name :
JYJ
Model Number :
JY-MB
Certification :
CE,ISO
Place of Origin :
GUANGZHOU
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1/7 DAYS
Delivery Time :
7 DAYS
Packaging Details :
WOODEN CASE
Warranty :
1 Year
After-sales :
Online service
Conditon :
New
Application :
Filling
Automatic grade :
Semi-automatic
Motor type :
AC Motor
Color :
Silver
Material :
SUS304
Description

Semi-automatic 18 Holes Eyebrow Pencil Heating Filling Machine Semi-automatic 18 Holes Eyebrow Pencil Heating Filling Machine
Semi-automatic 18 Holes Eyebrow Pencil Heating Filling MachineSemi-automatic 18 Holes Eyebrow Pencil Heating Filling Machine
Description:

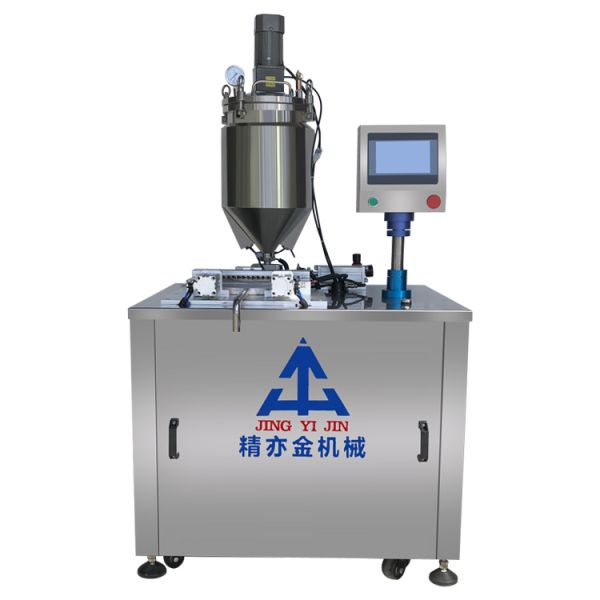

This product is designed for eyebrow pencil and eyeliner refill, adopting advanced automation technology (human-machine interface, PLC program control) to simplify the system operation procedure, and the overall performance is stable.

Technical Parameters:

Power supply voltage

220V 50Hz

Power (output)

5KW

Stirring speed

90 rpm/minute

Drum volume

20L

Filling speed

3-5 molds/minute

Machine size (L*W*H)

1000*660*1700mm

Machine weight

280kg

Push thin cylinder

DONT

Pneumatic ball valves

KITZ

Stirring motor

TOYO 60W

Filling cylinders

AirTac

Uses and function:

1.This machine is suitable for eyebrow pencil core, eyeliner core and other hot filling products.

2.Independent barrel mixing and temperature control design, to meet the diversified needs of raw materials.

3.Advanced automation technology (human-computer interface, PLC program control,), the4.whole machine need to set the parameters (time, temperature control settings) are set by the human-computer interface to simplify the system operating procedures, the overall performance is more stable.

4.The body is aluminum extrusion type structure, platform are aluminum plane easy to clean.

5.System operation program is simple, no need to spend time on education and training.

6.Each unit (barrel, pump, tube, nozzle) are controlled independently by intelligent temperature controller, making the equipment easier to use.

Detail picture:

Semi-automatic 18 Holes Eyebrow Pencil Heating Filling Machine

Semi-automatic 18 Holes Eyebrow Pencil Heating Filling Machine

Packing:

Semi-automatic 18 Holes Eyebrow Pencil Heating Filling Machine
