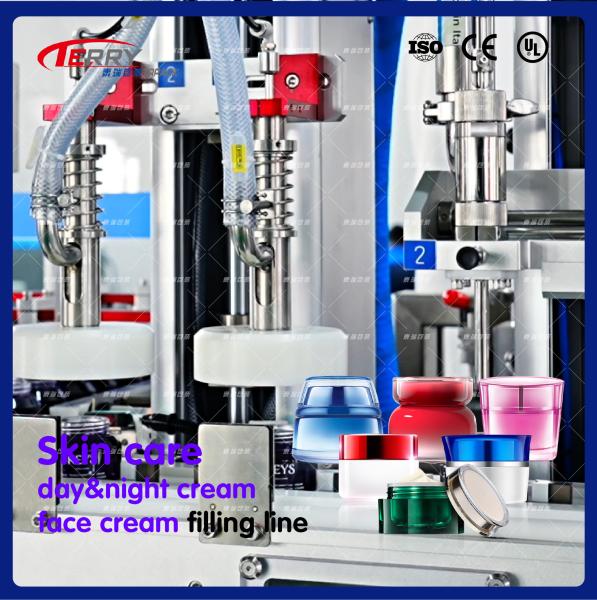

Fully Automatic Cosmetic Cream Filling Machine for Skincare Products
Fully Automatic Cosmetic Cream Filling Machine for Skincare Products
Fully Automatic Cosmetic Cream Filling Machine for Skincare Products
Fully Automatic Cosmetic Cream Filling Machine for Skincare Products
Fully Automatic Cosmetic Cream Filling Machine for Skincare Products
Fully Automatic Cosmetic Cream Filling Machine for Skincare Products
Fully Automatic Cosmetic Cream Filling Machine for Skincare Products
Fully Automatic Cosmetic Cream Filling Machine for Skincare Products
Fully Automatic Cosmetic Cream Filling Machine for Skincare Products
Fully Automatic Cosmetic Cream Filling Machine for Skincare Products
Fully Automatic Cosmetic Cream Filling Machine for Skincare Products
Fully Automatic Cosmetic Cream Filling Machine for Skincare Products
Fully Automatic Cosmetic Cream Filling Machine for Skincare Products
Fully Automatic Cosmetic Cream Filling Machine for Skincare Products
Fully Automatic Cosmetic Cream Filling Machine for Skincare Products
Fully Automatic Cosmetic Cream Filling Machine for Skincare Products
Fully Automatic Cosmetic Cream Filling Machine for Skincare Products
Fully Automatic Cosmetic Cream Filling Machine for Skincare Products
Fully Automatic Cosmetic Cream Filling Machine for Skincare Products
Fully Automatic Cosmetic Cream Filling Machine for Skincare Products
Specifications
Brand Name :
Fully Automatic Cosmetic Cream Filling Machine for Skincare Products
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5 sets per month
Delivery Time :
10-15 days
Packaging Details :
Our products are packed in boxs.We will check that if the machine can run before it is sent out.When you receive the goods,please open the package to check out if the goods are in good condition before the courier.If the boxs are damaged or other situation
Model Number :
Terry
Application :
Fully Automatic Cosmetic Cream Filling Machine for Skincare Products
Filling range :
15-200mL
Suitable viscosity :
φ（30-90）*（35-95）mm
Filling speed :
50BPM
Diameter Of Tube :
10-120mm(can be customized)
Dimensions :
2000X1000X1900mm
Operation Mode :
Automatic
Machine Type :
Semi Auto filling and sealing Machine
Filling Error :
±1~2%
Tube Length :
50-200mm
Quantity Error :
<2%
Operation Speed :
80rpm
Machinery Capacity :
8000BPH,20000BPH,12000BPH,16000BPH
Filling Range :
5-50ml, 50-300ml
Power Supply :
220V/380V, 50Hz/60Hz
Function :
Filling sealing dating
Description

Fully Automatic Cosmetic Cream Filling Machine for Skincare Products

Main technical parameters

1. Production capacity: ≥ 50 bottles/min (taking 50ml as an example)

2. Filling range: 15-200ml

3. Filling accuracy: (15-100ml) ± 0.5g, (101-200ml) ± 1g

4. Bin capacity: 30L (pressurized bin)

5. Filling viscosity: 200000 CPS (if the material viscosity exceeds 150000 CPS, the plunger pump feed needs to be replaced)

6. Air source pressure: 6-8kg/cm2 (dry and clean compressed air must be used)

7. Power supply:~380V, 50Hz (three-phase five-wire system)

8. Power: about 10 KW

9. Air consumption: 450/min

10.Bottle taking parts applicable bottle diameter: φ 35mm≤D≤ φ 90mm, applicable bottle height: 35mm ≤ H ≤ 95mm (without cap)

11. Applicable bottle diameter of blowing and suction parts: D ≤ φ 100mm, applicable bottle height: H ≤ 150mm (without cap)

12. Applicable bottle diameter of filling parts: φ 10mm ≤ d, applicable bottle height: H ≤ 150mm (without cap)

13. Applicable bottle diameter of suction and discharge inner cushion parts: φ 20mm≤D≤ φ 45mm

14. Applicable bottle diameter of capping part: φ 35mm≤D≤ φ 90mm, applicable bottle height: 25mm ≤ h ≤ 80mm (bottle shoulder height)

15. Take out parts (bottle out): φ 35mm≤D≤ φ 90mm, applicable bottle height: 35mm ≤ h ≤ 95mm (without cap)

16. Applicable bottle diameter of conveying parts: φ 35mm≤D≤ φ 90mm, applicable bottle height: H ≤ 130mm (without cap)

17.Size:7000×2100×2000mm(L×W×H)

18.Weight:1500 KG

Application Cosmetics Skincare Products Face cream day cream night cream moisturizing cream
production capacity
 ≥50 bottles / min (as shown in 50ml)
Filling range

15-200ml
Filling accuracy

(15-100ml)±0.5g,(101-200ml)±1g
container capacity 30L (pressurized container)
Filling viscosity 200000 CPS (material viscosity over 150000 CPS, replacing plunger pump feed)
air pressure 0.6 ~ 0.8 Mpa (dry, clean compressed air must be used)
Bottle size is applicable for bottle pickup parts φ 35mm D φ90mm, applicable bottle height: 35mm H 95mm (without cover)

Blowing parts are applicable to bottle diameter

 D φ100mm, applicable bottle height: H 150mm (without cover)
Suitable bottle size for filled parts φ 10 mm, applicable bottle height: H 150mm (without cover)
Suitable bottle size for inside pad parts

φ20mm≤D≤φ45mm
Main body shape size

7000×2100×2000mm
weight

2000*2000*1800mm(L*W*H)

Features

Claw-type rotating cover has a wide range of applications. It is made of soft silicone material to ensure no scratch. The servo motor is used to rotate the cover. The torque can be adjusted directly in the touch screen with one key, which is convenient and fast.

Take out the bottle automatically with a manipulator.

Claw-type rotating cover has a wide range of applications. It is made of soft silicone material to ensure no scratch. The servo motor is used to rotate the cover. The torque can be adjusted directly in the touch screen with one key, which is convenient and fast.

About us:
The first of China;The leading of world;The best of national brand
FAQ:

Q1. Can we customize it??

A: Yes, We can customize according to your requirements and production capacity. Flexible production line.

Q2. What about the lead time?

A:Some machines are shipped within 7 days, and samples can be sent for free testing.

Q3: What kind of payments do you accept?

A:T/T, L/C, Western Union, etc..

Q4: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products,All accessories damaged within one year (except for human damage) will be borne by our company, including freight.

Q5: What's the MOQ?

A:MOQ is 1 set.

Contact:Cyn.wu

Wechat/Whatsapp:0086-13921010106

Fully Automatic Cosmetic Cream Filling Machine for Skincare Products
