Specifications
Brand Name :
50BPM Fully Automated plastic jar Filling And Sealing Machine 15-200mL
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5 sets per month
Delivery Time :
10-15 days
Packaging Details :
Our products are packed in boxs.We will check that if the machine can run before it is sent out.When you receive the goods,please open the package to check out if the goods are in good condition before the courier.If the boxs are damaged or other situation
Model Number :
Terry
Application :
50BPM Fully Automated plastic jar Filling And Sealing Machine 15-200mL
Filling range :
15-200mL
Suitable viscosity :
φ（30-90）*（35-95）mm
Filling speed :
50BPM
Description

50BPM Fully Automated plastic jar Filling And Sealing Machine 15-200mL

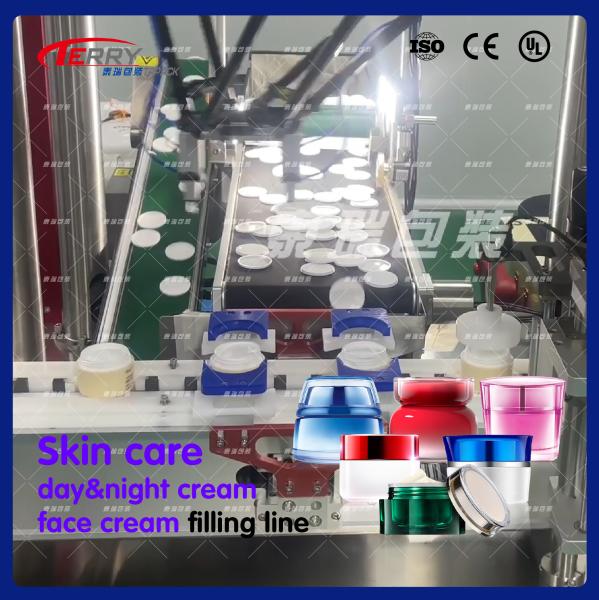

The inner pad adopts an intelligent robot design. It only needs to be adjusted to quickly put into production during production change, and there is no additional cost for changing product specifications.

The part in contact with the material adopts a modular integrated trolley design, with one backup and one production, and can be quickly switched within 20 minutes.

Fully Automatic Cosmetics Skincare Products Face Cream Day Cream Night Cream Moisturizing Cream Filling Line

1. Power of the whole line: about 10 KW, AC380V gas consumption of the whole line: about 450 L / min.

2. Whole line production speed: 50 bottles / minute (take 50ml cream product as an example, the specific capacity depends on the material characteristics, packaging material condition and operation proficiency).

3. Taking the production of 50ml products as an example, the efficiency of each single machine is 98%, and the efficiency of the whole line is 94%.

4, the whole line of high degree of automation, only 2-3 people can easily complete the production operation.

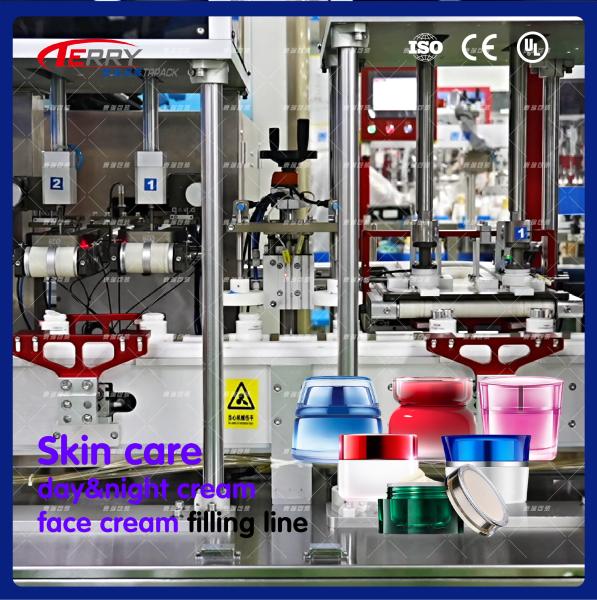

TR-GS-2S type fully automatic cream machine

TR-GS-2S type automatic cream machine will automatic bottle, anion blowing, servo filling, automatic take and release internal pad, automatic take and release cover, automatic torsion cover, automatic bottle transition and other functions set in one, the equipment has a high degree of automation, covers a small area.
Application Cosmetics Skincare Products Face cream day cream night cream moisturizing cream
production capacity
 ≥50 bottles / min (as shown in 50ml)
Filling range

15-200ml
Filling accuracy

(15-100ml)±0.5g,(101-200ml)±1g
container capacity 30L (pressurized container)
Filling viscosity 200000 CPS (material viscosity over 150000 CPS, replacing plunger pump feed)
air pressure 0.6 ~ 0.8 Mpa (dry, clean compressed air must be used)
Bottle size is applicable for bottle pickup parts φ 35mm D φ90mm, applicable bottle height: 35mm H 95mm (without cover)

Blowing parts are applicable to bottle diameter

 D φ100mm, applicable bottle height: H 150mm (without cover)
Suitable bottle size for filled parts φ 10 mm, applicable bottle height: H 150mm (without cover)
Suitable bottle size for inside pad parts

φ20mm≤D≤φ45mm
Main body shape size

7000×2100×2000mm
weight

2000*2000*1800mm(L*W*H)

About us:
The first of China;The leading of world;The best of national brand
FAQ:

Q1. Can we customize it??

A: Yes, We can customize according to your requirements and production capacity. Flexible production line.

Q2. What about the lead time?

A:Some machines are shipped within 7 days, and samples can be sent for free testing.

Q3: What kind of payments do you accept?

A:T/T, L/C, Western Union, etc..

Q4: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products,All accessories damaged within one year (except for human damage) will be borne by our company, including freight.

Q5: What's the MOQ?

A:MOQ is 1 set.
