Specifications
Brand Name :
10KW AC380V jars cream Filling And Sealing Machine 50 Bottles / Minute
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5 sets per month
Delivery Time :
10-15 days
Packaging Details :
Our products are packed in boxs.We will check that if the machine can run before it is sent out.When you receive the goods,please open the package to check out if the goods are in good condition before the courier.If the boxs are damaged or other situation
Model Number :
Terry
Application :
Cosmetics Skincare Products Face cream day cream night cream moisturizing cream
Filling range :
15-200mL
Suitable viscosity :
φ（30-90）*（35-95）mm
Filling speed :
50BPM
Description

10KW AC380V jars cream Filling And Sealing Machine 50 Bottles / Minute

Only 1-2 people are needed to realize intelligent operation of the entire line. Multiple industrial control positions are designed with robots, which provide good visual sensory effects and make the area more technological and worth visiting.

Differentiated design: The intelligent robot lining system ensures that the production line does not need to incur additional costs when changing product specifications. With simple adjustments, it can quickly switch to the production of new products, truly achieving zero replacement costs.

TR-GS-2S type fully automatic cream machine

TR-GS-2S type automatic cream machine will automatic bottle, anion blowing, servo filling, automatic take and release internal pad, automatic take and release cover, automatic torsion cover, automatic bottle transition and other functions set in one, the equipment has a high degree of automation, covers a small area.
Application Cosmetics Skincare Products Face cream day cream night cream moisturizing cream
production capacity
 ≥50 bottles / min (as shown in 50ml)
Filling range

15-200ml
Filling accuracy

(15-100ml)±0.5g,(101-200ml)±1g
container capacity 30L (pressurized container)
Filling viscosity 200000 CPS (material viscosity over 150000 CPS, replacing plunger pump feed)
air pressure 0.6 ~ 0.8 Mpa (dry, clean compressed air must be used)
Bottle size is applicable for bottle pickup parts φ 35mm D φ90mm, applicable bottle height: 35mm H 95mm (without cover)

Blowing parts are applicable to bottle diameter

 D φ100mm, applicable bottle height: H 150mm (without cover)
Suitable bottle size for filled parts φ 10 mm, applicable bottle height: H 150mm (without cover)
Suitable bottle size for inside pad parts

φ20mm≤D≤φ45mm
Main body shape size

7000×2100×2000mm
weight

2000*2000*1800mm(L*W*H)

Features

1.The automatic manipulator is used to put the bottle manually to the conveying track to take the bottle.;
2.2 sets of negative ion generator and electrostatic and dust removal system imported from Japan.

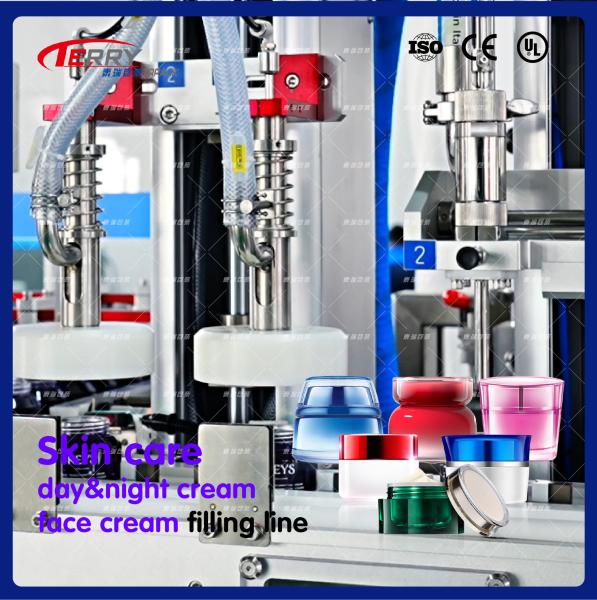

3.Double-head filling is adopted, and each filling head is controlled by a set of servo system, with high accuracy.
4. All material bins are equipped with independent ultrasonic sensors. This device uses the detection distance principle to detect that there is no direct contact with materials, which makes the liquid level detection more accurate and conforms to GMP requirements.
5.This device contains automatic feeding function,This system consists of two sets of one-way valves and one set of pumping cylinders. The material is pumped into the cylinder block by the pumping cylinder and then into the material box through the three-way valve.(Adopt pressurized material box design.
6.Including two sets of production change carts(The cart includes 1 set of feed pump, piston cylinder, filling pipe, material box, valve, etc), can realize quickly production change.
7.Reserve a position for manual placement of inner pad/cover.
8.The brand vision detection system is used to detect the coordinate position data of the inner pad.

9.Use a manipulator to automatically place the inner pad to the bottle mouth.(Grab 2 pieces at a time)

Packing:
10KW AC380V jars cream Filling And Sealing Machine 50 Bottles / Minute

About us:
A professional manufacturer in the production of packaging equipment for daily chemicals & cosmetics.
Provide efficient, convenient, and personalized solutions for the cosmetics industry.
Distributed in more than 20 provinces and cities across the country and is sold overseas.
A "full industry chain" development model integrating product raw material processing, research and development manufacturing, and sales services.
FAQ:
1.Can it be customized?
-Projects can be customized upon request
2.How about the after-sales service?
-Free matching remote module for easy guidance
3.How long is the warranty period?
-Free replacement of wearing parts for one year
4.Does it comply with GMP requirements?
-Comply with GMP requirements
5.additional services?
-Help you with the entire factory planning for free
