Specifications
Brand Name :
Morinte
Model Number :
140 type
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
$3500-4000/set
Payment Terms :
L/C, D/P, T/T
Supply Ability :
100 sets per month
Delivery Time :
7 days
Packaging Details :
Wooden cases or nude loaded into container directly
Color :
White, yellow or green
Material :
Chemical fiber with precise size
Type :
140, 160, 220
Capacity :
50-400kg/h
Brand :
Morinte
Pressing :
by
Description

Polyester/nylon/viscose tow carbon fiber/glass fiber cutting machine flock aramid chopping

Description:

Morinte builds the best Tow Cutters. Tow cutters are used to cut synthetic fiber into discrete lengths for subsequent processing. Cut lengths from 1/8”” [3mm] to 7.5” [190mm] are readily accomplished. All of the cutters are carefully configured to match the customer's needs. Many options are available to create a custom engineered unit to satisfy even special requirements. With capacities of 100Lbs [50kg] to over 800Lbs [350kg] per hour, Morinte has a cutter for your staple fiber

Featurer:

  • This cutter is short size cutting machine, can cut the precise size.
  • It is specially used for polyester fiber, carbon fiber , metal fiber ,dacron fiber,Terylene Fiber, Kevlar, Polypropylene fiber,glass fiberand the aramid fiber

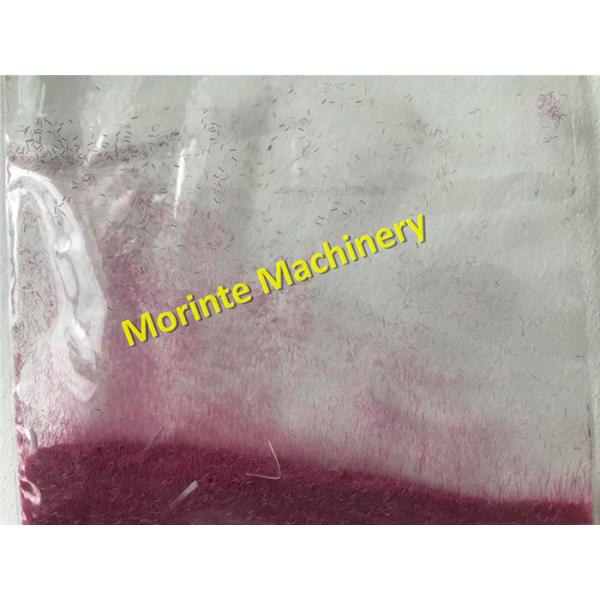

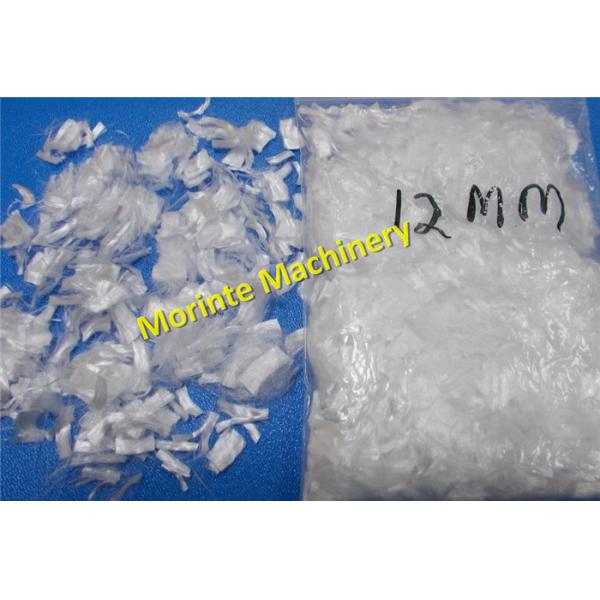

  • Cutted fiber has been used to make construction material , special paper making , paint making and other process.

Technical data:

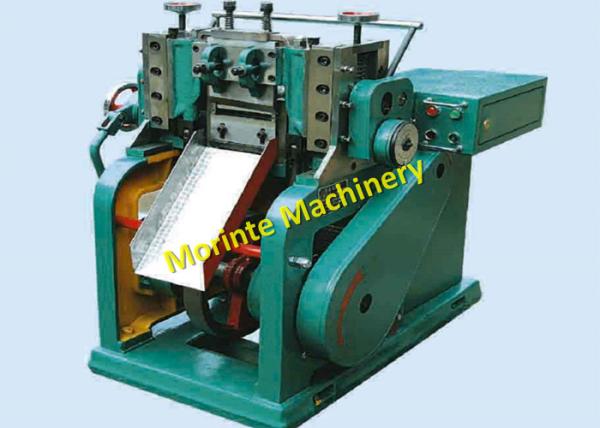

MT140 Cutting machine
Cutting Length 1-80mm
Cutting width 140mm
Cutting Thickness 16mm
Cutting speed 140-180times/min
Cutting capacity for Aramid ;6mm length 25-30kg/h
Motor power 1.5kw ,380V
Weight 500kg

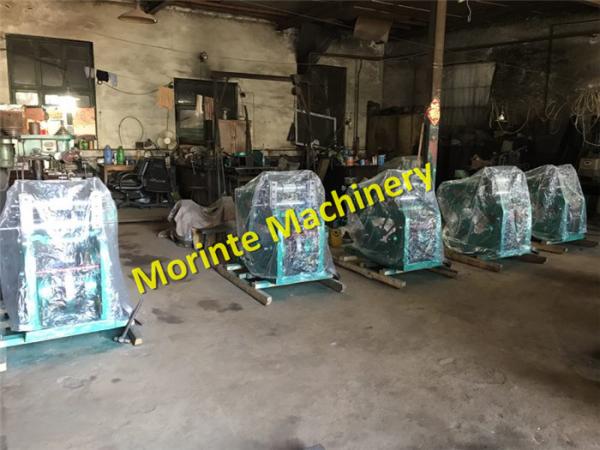

Pictures for refer:

Polyester/nylon/viscose tow carbon fiber/glass fiber cutting machine flock aramid chopping

Polyester/nylon/viscose tow carbon fiber/glass fiber cutting machine flock aramid chopping

Polyester/nylon/viscose tow carbon fiber/glass fiber cutting machine flock aramid chopping

Polyester/nylon/viscose tow carbon fiber/glass fiber cutting machine flock aramid chopping

Polyester/nylon/viscose tow carbon fiber/glass fiber cutting machine flock aramid chopping

Polyester/nylon/viscose tow carbon fiber/glass fiber cutting machine flock aramid chopping

Click to check video

Polyester/nylon/viscose tow carbon fiber/glass fiber cutting machine flock aramid chopping
