Specifications
Brand Name :
LTMG
Model Number :
FRB15
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1/unit
Price :
negotiable
Supply Ability :
300 Set/Sets per Month
Delivery Time :
30days
Packaging Details :
nude packing
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Operating type :
Walk/Stand on
Load capacity :
1500kg
Load center :
500mm
Fork size :
100mm*35mm*920mm
Control system :
CURTIS
Standard battery :
24/V280Ah
Warranty :
1 year or 2000 working hours
Brand :
LTMG
Description

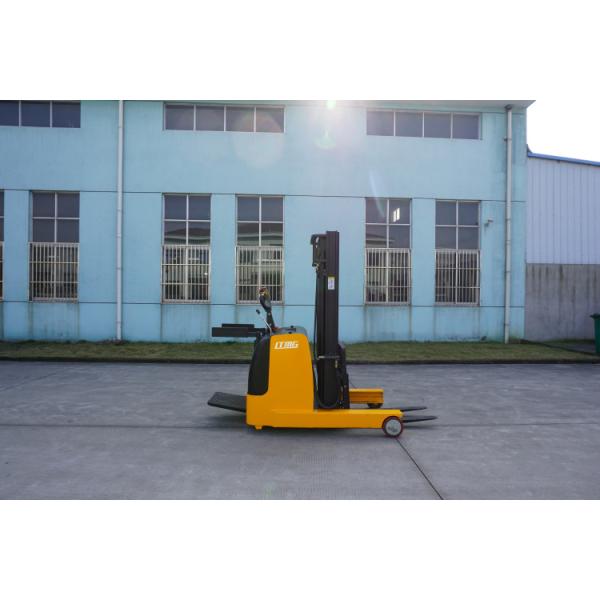

LTMA new 2.5 ton mini electric reach forklift truck with 2000 working hours warranty

Features of LTMA new 2.5 ton mini electric reach forklift truck with 2000 working hours warranty

24V Electric reach stacker FRB Series rated Load Capacity: 1000-2000kg, lift height: 3000mm; Max. lifting height is 5500mm.
1. Speed Limited for high position,to aviod the possibility of products' overturning when high speed in high position;
2. Curve safe control,the forklift will reduce the speed automatic when turning, to aviod the ejection of operator and products from the vehicle by the high speed;
3. Regenerative braking function to reduce the operation cost;
4. Safe cutoff valve,to protect the operator and goods in well condition;
5. Shock Absorption of Pedal,to ensure the comfortable of working and reduce the fatigue.

The specifications of LTMG new 2.5 ton mini electric reach forklift truck with 2000 working hours warranty

Model   ERD215
Feature Power   Battery
Front overhang mm 160
Wheelbase mm 1780
Weight Service weight with battery kg 2200
Bridge load when laden (front/ rear) kg 3075/525
Bridge load when unladen (front/ rear) kg 1100/1000
Wheels and body Wheel type   PU
Wheel size front mm Φ210×85
Wheel size rear mm Φ252×80
Attach wheels dimensions mm Φ130×55
Front wheel tread (front/rear)   2/2
Front wheel tread mm 945
Rear wheel tread mm 620
Dimension Mast lowered height mm 2040
Standard lift height mm 3000
Mast extend height mm 3855
Mast reach distance mm 550
Fork angle (front/ rear)   2/3
Height of handles in driving position min/max mm 1160/1450
Overall length mm 1980
Overall length (including fork) mm 2510
Overall width mm 1020
Fork outside distance mm 220/660
Min. aisle for pallets 1000x1200 mm 1700
Min. aisle for pallets 800x1200 mm 1600
Min. turning radius mm 1950
Performance Travel speed laden/unladen km/h 5.1/5.5
Travel speed laden/unladen mm/s 70/100
Decline speed laden/unladen mm/s 230/75
Gradeability laden/unladen % 6/8
AC power and control Drive motor power kw 2.2
Lift motor power kw 3

LTMG new 2.5 ton mini electric reach forklift truck with 2000 working hours warranty

2.5 Ton Warehouse Reach Truck , Mini High Reach Forklift 1 Year Warranty

After-sale service
Nowadays we have been sell more than 100 countries. All the products of LTMG supplied withone year or 2000 working hours (which occurs first) period quality warranty.
If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.

Detail clauses and policies please see to our website and product's quality certificate.

Our company

2.5 Ton Warehouse Reach Truck , Mini High Reach Forklift 1 Year Warranty

FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
