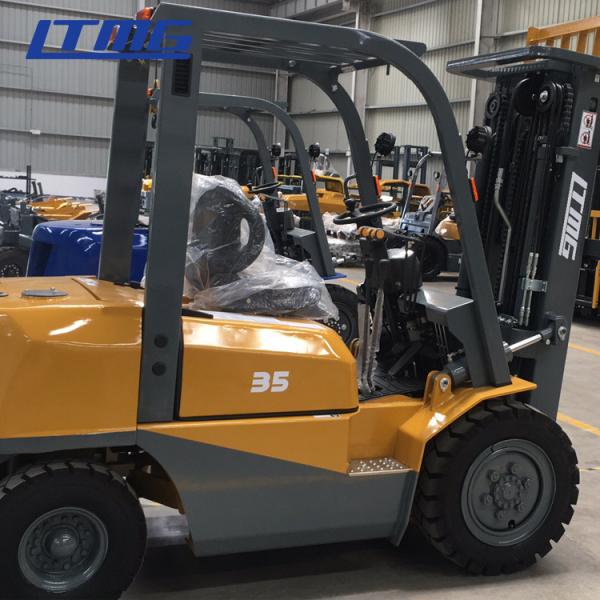

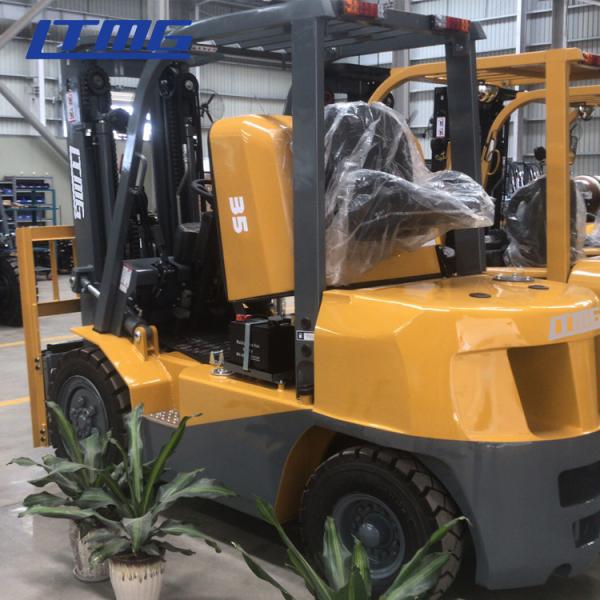

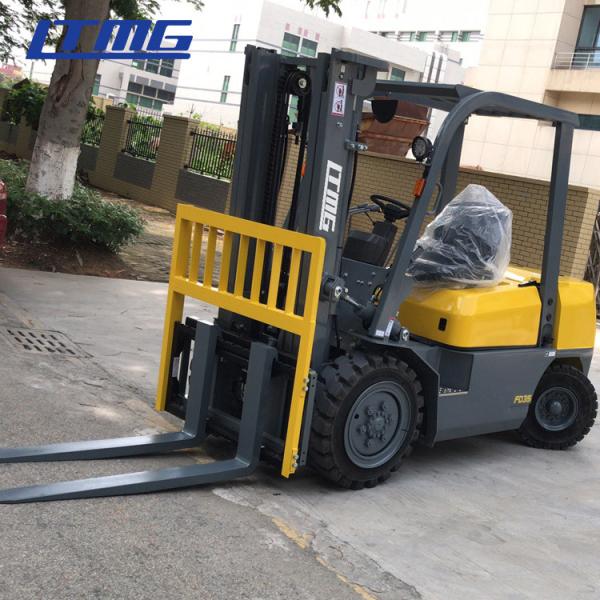

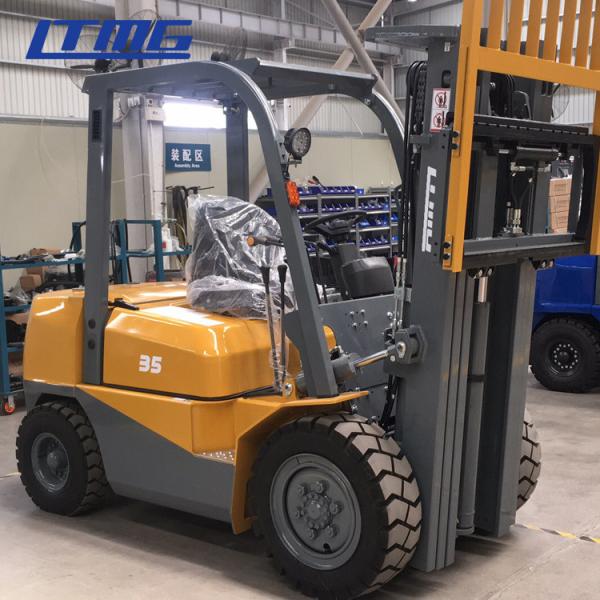

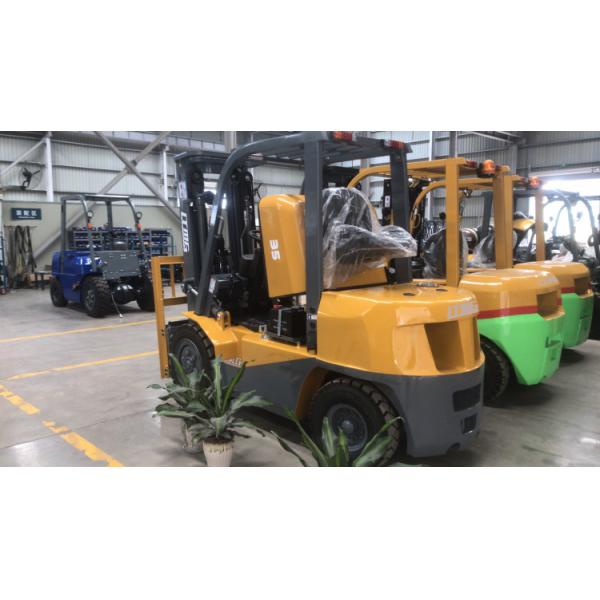

nice color 3.5 ton counterbalance forklift truck , manual forklift with CE/ISO certification

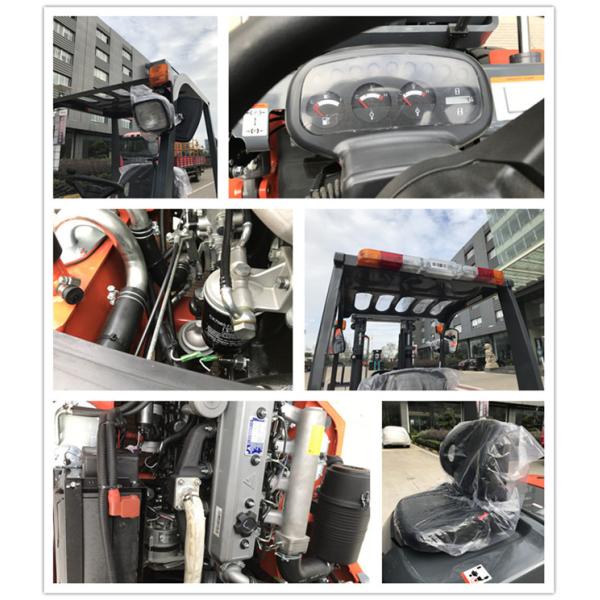

Features of manual forklift
1. It is equipped with high air-inflow silencing and extremely capable exhaust silencing technologies making sure that air in and around the engine is fresh crystal clean air. This technical fitting ensures cylinder abrasion, absolute control of engine and importantly maintains engine's service life-span.
2. Steering axle: It has less twisting hydraulic steering gear with transverse cylinder ensuring steering flexibility, maintenance simplicity and highly reliable.
3. Developed based on international and domestically-manufactured instrument panel including safety alarm light; all control pedals and levers have human-interface engineering requirements. A greater friendly operating environment with adjustable steering wheel, rotational and vertically adjustable chair, and scaled-down steering wheel.
4. Engine: Well defined and high powered engines from Xinchang 490 with pump diesel engine with direct injection and imported Japanese ISUZU C240engine. The performance are tremendous such as easy start, low fuel consumption, horsepower, higher power reserve coefficient and these engine built-up is in strict conformity with national and international emission standards for new models/ similar models.
Specifications of manual forklift
Features | Manufacturer | LTMG | ||
Model | Power shift T/M | FD35T | ||
Manual shift T/M | FD35C | |||
Power unit | Diesel | |||
Operator type | Driver/seat | |||
Tire type | Front/rear | Pneumatic | ||
Wheel | Front/rear | 2/2 | ||
Dimension | Max. lifting height | mm | 3000 | |
Free lift | mm | 150 | ||
Tilt range | Mast forward/backward | deg | 6/12 | |
Overall length(without fork) | mm | 2760 | ||
Total width | mm | 1285 | ||
Mast height (fork lowering) | mm | 2075 | ||
Overall height fork raised | With backrest | mm | 4250 | |
Height to head guard | mm | 2140 | ||
Turning raduis(outside) | mm | 2495 | ||
Front face of fork to front axle | mm | 485 | ||
Min. right angle stacking aisle | mm | 2975 | ||
without load length&clearence | ||||
Performance | Speed | Max Travelling | km/h | 18/19.5 |
full/no load | ||||
Lifting | mm/s | 450/500 | ||
full/no load | ||||
Lowering | mm/s | 450/420 | ||
full/no load | ||||
Max.drawbar pull | Power shift T/M | kg | 2100/1000 | |
full/no load | ||||
Manual shift T/M | kg | 2100/1000 | ||
full/no load | ||||
Gradeability at 1.6km/h | Power shift T/M | % | 18/20 | |
full/no load | ||||
Manual shift T/M | % | 18/20 | ||
full/no load | ||||
Weight distribution | Full load front/rear | kg | 7380/900 | |
No load front/rear | kg | 1820/2960 | ||
Frame | Tires | Number | front/rear | 2/2 |
Model | front axle | 28x9-15-12PR | ||
rear axle | 6.50-10-10PR | |||
Tread | Front/rear | mm | 1060/970 | |
Ground clearence | At lowest point(mast) | mm | 120 | |
Frame | mm | 135 | ||
Brake | Service brake | Hydraulic-foot pedal | ||
Parking brake | Mechanical-hand lever | |||
Engine | Battery | Voltage/capacity | V/AH | 12/80 |
Engine | Model | ISUZU 4JG2 | ||
Rated power | kw/rpm | 44.8/2450 | ||
Rated torque | N.m/rpm | 186/1800 | ||
Number of cylinders | 4 | |||
Placement | L | 3.059 | ||
Fuel tank capacity | L | 70 | ||
Transmission | Speed forward/backward | Power shift T/M Manual shift T/M | 1-1 power shift T/M | |
2-2 manual shift T/M | ||||
Operating pressure | Hydraulic system pressure | kg/cm² | 180 |
manual forklift
After-sale service
Nowadays we have been sell more than 100 countries. All the products of LTMG supplied withone year or 2000 working hours (which occurs first) period quality warranty.
If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.
Detail clauses and policies please see to our website and product's quality certificate.
Our company
FAQ
1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
