Specifications
Brand Name :
LTMG
Model Number :
LT938
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 unit
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
300 unit per month
Delivery Time :
30days
Packaging Details :
nude packing
Operating Weight :
10400kg
Tire Type :
nylon tires
engine :
Deutz, Cummins
warranty :
1 year
bucket capacity :
2m3 ,2.5m3 for your choose
Dimension :
7310*2870*3220mm
Brand :
LTMG
Max.dumping height :
3300mm
Max.dumping reach :
1290mm
Description

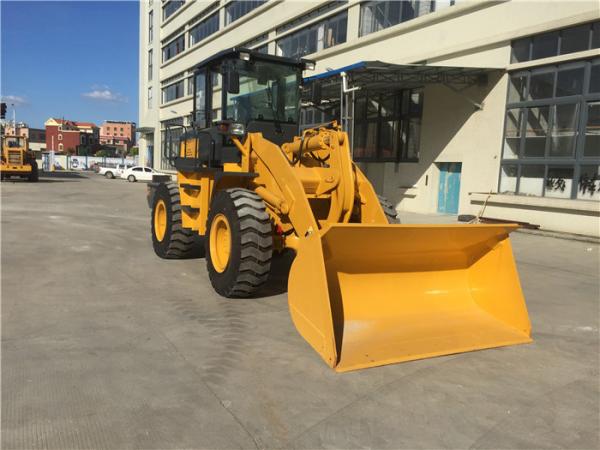

3.5 ton front end wheel loader with planetary transmission air condition heat systtem

3.5t front end wheel loader feature

1. With articulated frame, small turning radius and highflexibility, very suitable to work in narrow space.

2. Hydro-mechanical transmission, which makes full use of engine power, increase torque, possess with great traction force. Meanwhile, it can automatically adjust to variable speed according to resistance change, which can protect the engine and other rotating components.

3. 4 in 1 bucket, Side dump bucket, Rock bucket, Enlarged grain bucket, Breaking hammer, Grass grapple, Log fork, Pallet fork, Snow blade, etc.

The specification of 3.5t wheel loader

Model LT938
Operating weight 11,000 kg
Rated load 3,500 kg
Rated engine power 105kw
Rated rotate speed 2200r/min
Maximum torque 540N.m
Breakout force 112KN
Forward 1 0-11km/h
Forward 2 0-38km/h
Reverse 1 0-16km/h
Grade ability 28°
Overall length 7,450mm
Overall width 2480mm
Overall height 3200mm
Wheel base 2870mm
Track base 1800mm
Minimum ground clearance 450mm
Maximum dumping reach 1297mm
Raise time ≤6.8s
Total ≤12.5s
Fuel Tank 180L

Planetary Transmission Compact Wheel Loader , Electric Front End Loader 3.5 Ton

After-sale service


Nowadays we have been sell more than 60 countries.
All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and product’s quality certificate.

Our company

Planetary Transmission Compact Wheel Loader , Electric Front End Loader 3.5 Ton

FAQ:
1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.


2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.


3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.


4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.


5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.


6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
