Japan Engine Counterbalance Forklift Truck With Cabin 1070mm Fork Length
Japan Engine Counterbalance Forklift Truck With Cabin 1070mm Fork Length
Japan Engine Counterbalance Forklift Truck With Cabin 1070mm Fork Length
Japan Engine Counterbalance Forklift Truck With Cabin 1070mm Fork Length
Japan Engine Counterbalance Forklift Truck With Cabin 1070mm Fork Length
Japan Engine Counterbalance Forklift Truck With Cabin 1070mm Fork Length
Japan Engine Counterbalance Forklift Truck With Cabin 1070mm Fork Length
Japan Engine Counterbalance Forklift Truck With Cabin 1070mm Fork Length
Specifications
Brand Name :
LTMG
Model Number :
FD50
Certification :
CE,ISO
Place of Origin :
Ningbo,China
MOQ :
one units
Price :
negotiable
Supply Ability :
600 units
Delivery Time :
35 days
Packaging Details :
fixed in container
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Turning radius(outside) :
2910mm
Wheelbase :
2100mm
Number of cylinders :
6
Warranty :
1 Year or 2000 hours
optional :
side shift fork positioner mast height
Fork size :
1070*150*55mm
Tire :
Pneumatic
Description

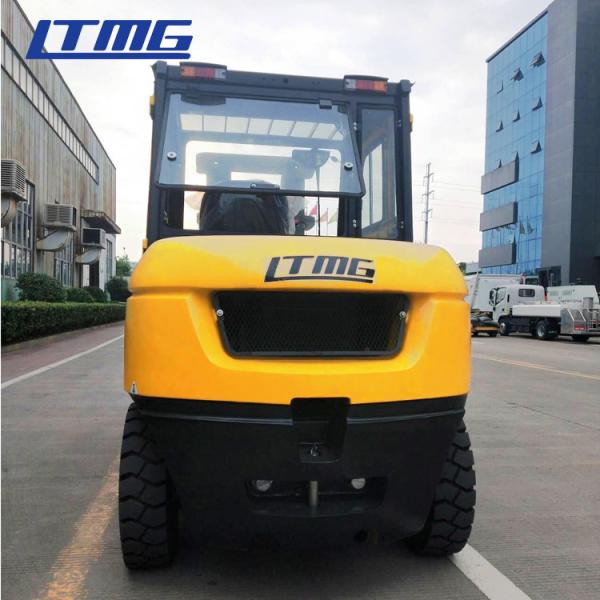

5 ton counterbalance diesel forklift truck with cabin,japanese engine

here are our 5 ton standrad configuration as below:
-- 1070mm fork length
-- 3000mm two stage mast
-- hydraulic transmission
-- pneumatic tires
- -toyata seat
-- Chinese engine
other configuration are optional :
-- longer fork length
-- mechanical transmission
-- 3000-6000 mm lifting height, three stage
-- solid tire
- ISUZU engine ,Mitsubishi engine,EPA koller engine ,Euro III engine are optional.
-attchments: paper roll clamp ,bale clamp, rotating clamp ect.
Japan Engine Counterbalance Forklift Truck With Cabin 1070mm Fork Length

The specification of 5 ton diesel forklift

Features 1 Manufacturer 　 　 LTMG
2 Model 　 　 FD50
3 Load capacity 　 kg 5000
4 Load center 　 mm 600
5 Power unit 　 　 Diesel
6 Operator type 　 　 Driver/seat
7 Tire type 　 　 Pneumatic
8 Wheel Front/rear 　 2/2
Dimension 9 Max. lifting height 　 mm 3000
10 Free lift 　 mm 140
11 Fork size L*W*T mm 1220*150*60
12 Tilt range Mast forward/backward deg 6/12
13 Overall length(without fork) 　 mm 3183
14 Total width 　 mm 1485
15 Mast height (fork lowering) 　 mm 2390
16 Overall height fork raised With backrest mm 4295
17 Height to head guard 　 mm 2270
18 Turning raduis(outside) 　 mm 2865
19 Front face of fork to front axle 　 mm 560
20 Min. right angle stacking aisle pallet size :1100×1100 add clearence mm 4670
Performance 21 Speed Max Travelling full/no load km/h 18/19
22 Lifting full/no load mm/s 380/430
23 Lowering full/no load mm/s 380/340
24 Max.drawbar pull full/no load kg 4500/2000
25 Gradeability at 1.6km/h full load % 25
Weight 27 Truck weight 　 kg 7000
28 Weight distribution Full load front/rear kg 10280/1790
29 No load front/rear kg 3330/4500
Frame 30 Tires Number front/rear 2/2
31 Model front axle 300-15-18PR
32 rear axle 7.00-12-12PR
33 Wheelbase 　 mm 2000
34 Tread Front/rear mm 1180/1190
35 Ground clearence At lowest point(mast) mm 100
Frame mm 240
36 Brake Service brake 　 power brake
Parking brake 　 Mechanical-hand lever
Engine 37 Battery Voltage/capacity V/AH 2-12/80
38 Engine Model 　 MITSUBISHI S6S ISUZU 6BG1
Rated power kw/rpm 52/2300 112/2000
Rated torque N-m/rpm 248/1700 42.5/1500
Number of cylinders 　 6 6
Displacement L 4.996 6.494
39 Fuel tank capacity 　 L 80
40 Transmission shift stage(front/rear-type) 　 2-1 power shift T/M
41 Operating pressure Hydraulic system pressure kg/cm²

200

After-sale service

Nowadays we have been sell more than 60 countries. All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please see to our website and product’s quality certificate.

Our company

Japan Engine Counterbalance Forklift Truck With Cabin 1070mm Fork Length

FAQ:
1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
