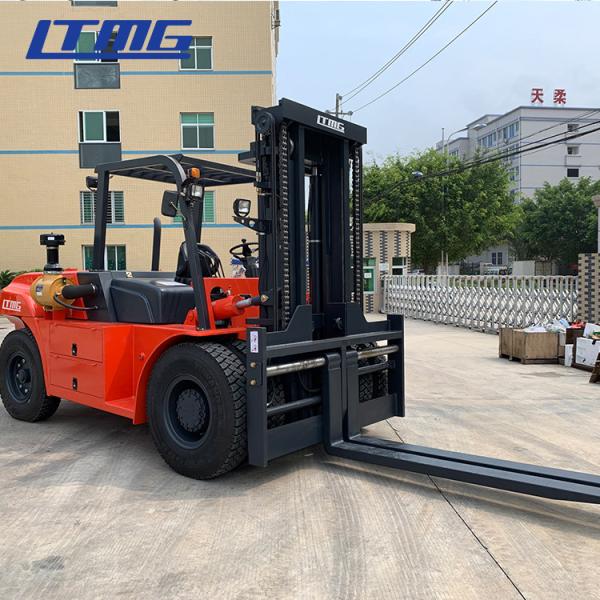

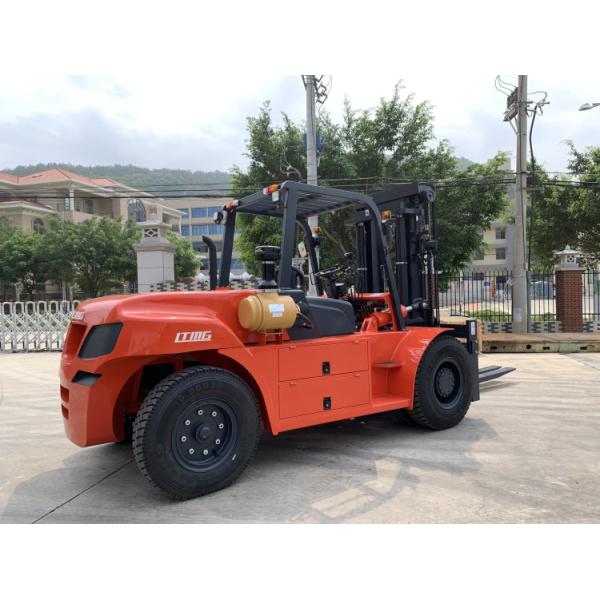

12000kg Rated Loading Internal Combustion Forklift Lifting Equipment 12 Ton
12000kg Rated Loading Internal Combustion Forklift Lifting Equipment 12 Ton
12000kg Rated Loading Internal Combustion Forklift Lifting Equipment 12 Ton
12000kg Rated Loading Internal Combustion Forklift Lifting Equipment 12 Ton
12000kg Rated Loading Internal Combustion Forklift Lifting Equipment 12 Ton
12000kg Rated Loading Internal Combustion Forklift Lifting Equipment 12 Ton
12000kg Rated Loading Internal Combustion Forklift Lifting Equipment 12 Ton
12000kg Rated Loading Internal Combustion Forklift Lifting Equipment 12 Ton
Specifications
Brand Name :
LTMG
Model Number :
FD120
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 unit
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
200 units per month
Delivery Time :
30days
Packaging Details :
nude packing
Engine :
Cummins or Chinese engine
Warranty :
1 year or 2000 working hours
Fork size: :
1520*180*100mm
lifting height :
3m, 4m, 5m for your choose
Battery Voltage :
(12V/80Ah)x2
Overall Dimensions: :
4700*2200*3100mm
Rated Loading :
12000kg
Weight :
14500kg
Description

Internal Combustion forklift truck 12 ton diesel hydraulic forklift for sale

Feature

1. Adopt Cummins, engine, powerful, energy conservation, environmental protection, satisfies the requirement of high efficiency operation.

2. Use Hangchi, Sanchi planet type hydraulic power shift transmission, big traction in combined operating condition.

3. Adopt double turbine hydraulic torque converter, stepless speed change, single lever control for the speed changing, easier for operation.

4. Variable speed control valve matched with neutral starter, the machine start more secure.

5. Front axle adopt heavy duty type driving axle, enlarge size of axle housing, hub and bearing, spiral bevel gear and wheel planetary wheel deceleration increasing twist, steel structrue bridge shell support, increase the load capacity and service life.

The specification of 12 ton diesel forklift

Load Centre mm 600
Lift Height mm 3000
Fork Size L×W×T mm 1500×180×100
Mast Tilt Angle F/R Deg 6°/12°
Front Overhang (Wheel center to fork face) mm 770
Ground Clearance(Bottom of mast) mm 250
Overall Dimension Length to face of fork(Without fork) mm 4700
Overall Width mm 2200
Mast Lowered Height mm 3100
Overhead Guard Height mm 2590
Turning Radius (outside) mm 4450
Min. intersecting aisle mm 4200
Speed Travel (Full load) km/h 25
Lifting(Full load) mm/s 290
Max.Gradeability (No load/Full load) % 20
Tire (solid tire) Front mm 9.00-20-14PR
Rear mm 9.00-20-14PR
Wheelbase mm 3200
Service weight kg 14500
Battery Voltage/Capacity V/Ah (12V/80Ah)x2
Engine Model 6BT5.9-C130
Manufacture XICHAI
Rated output/r.p.m. kw 97/2200
Rated torque/r.p.m. N·m 560/1500
No.of Cylinder 6
Displacement cc 5900
Fuel Tank Capacity L 150
Transmission Type Powershift
Stage FWD/RVS 2/2

12000kg Rated Loading Internal Combustion Forklift Lifting Equipment 12 Ton12000kg Rated Loading Internal Combustion Forklift Lifting Equipment 12 Ton

After-sale Service


Nowadays more than100 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.

Our company

12000kg Rated Loading Internal Combustion Forklift Lifting Equipment 12 Ton

FAQ:

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
