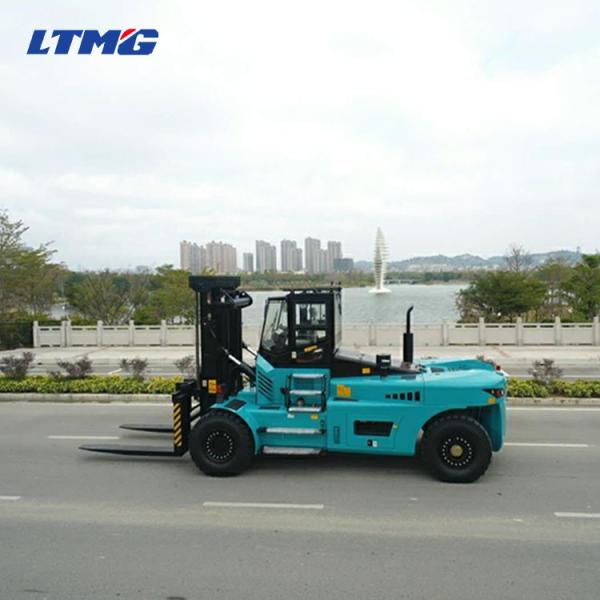

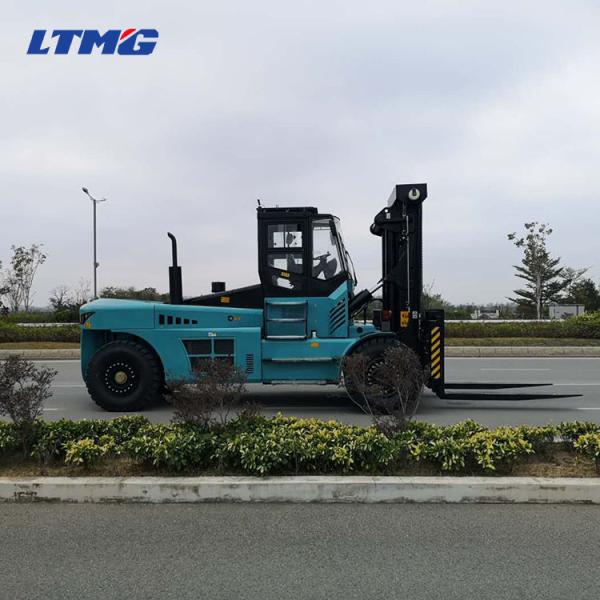

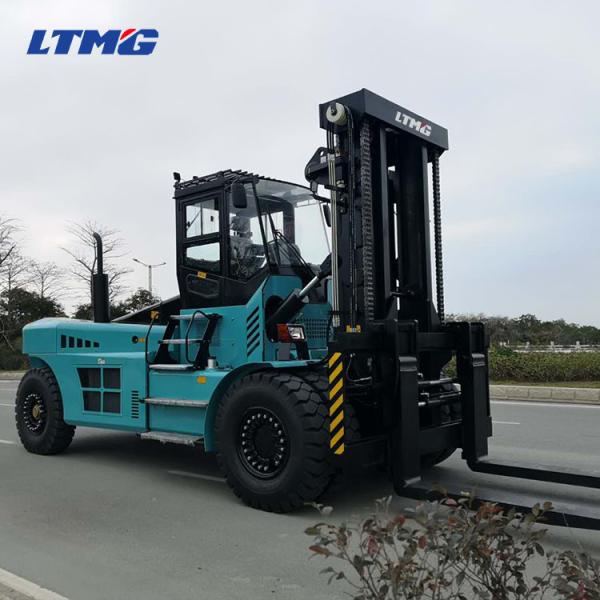

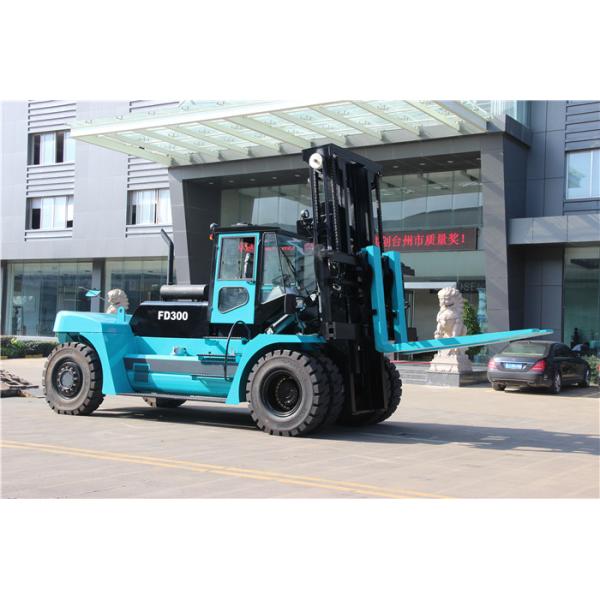

900mm Load Center 30 Ton Forklift , Container Big Forklift Trucks For Airports
900mm Load Center 30 Ton Forklift , Container Big Forklift Trucks For Airports
900mm Load Center 30 Ton Forklift , Container Big Forklift Trucks For Airports
900mm Load Center 30 Ton Forklift , Container Big Forklift Trucks For Airports
900mm Load Center 30 Ton Forklift , Container Big Forklift Trucks For Airports
900mm Load Center 30 Ton Forklift , Container Big Forklift Trucks For Airports
Specifications
Brand Name :
LTMG
Model Number :
FD300
Certification :
CE,ISO
Place of Origin :
Ningbo,China
MOQ :
1units
Price :
negotiable
Supply Ability :
300 units / month
Delivery Time :
35days
Packaging Details :
frame shipping or roll shipping
Engine :
weichai engine or cummins
warranty :
1 year or 2000 working hours
Fork size :
1800*320*110mm
Load center :
900mm
Max. lifting height :
3000mm
Turning raduis(outside) :
6700mm
Rated power :
175kw/2200rpm
Ground clearence :
330mm
Description

30 ton container big forklift with diesel engine forklift truck

-- Innovative Design
-- Simplified Serviceability
-- Enhanced Productivity
-- Wide-view Mast -- offer enhanced forward visibility, thus more efficiency and safty during operation
-- Solid Overhead Guard -- specially designed for additional security
-- Ergonomics Seat -- much more comfortable and fatigue- reliveable after long time operation
-- Powerful Engine -- imported brand engine ensures high performance, safty and efficiency
-- Super low & Non-slip step

the specification of 30 ton diesel forklift.

model 　 FD300
Load Capacity Kg 30000
Load Centre mm 900
Power Type 　 Diesel
Tire Front x 4 mm 14.00-25-32 Superelastic
Rear x 2 mm 14.00-25-32 Superelastic
Fork Length 　 mm 2440 x 250 x 110
Mast Tilt Angle (F / R) 　 Deg 5° / 10°
Mast Tilt Speed 　 º/S 0.4º
Turning Radius (outside) 　 mm 6500
Aisle width with pallets 1000*1200 across forks mm 10350
Minimum Insecting Aisle mm 8800
Speed Travel with / without load km/h 20 / 25
Lifting with / without load mm/s 300 / 320
Lowering with / without load mm/s 400 / 300
Max.Gradeability with / without load % 20 / 25
Tractive force with / without load KN 180 / 200
Service weight Kg 41500
Overall Dimension Length to face of fork (Without fork) mm 9260
Overall Width mm 3050
Overhead Guard Height mm 3415
Brake Distance 　 　 m 5
Ground Clearance (chasis / mast / counterweight) mm 410 / 250 / 350
Lateral fork adjustment range mm 1020 x 2540
Wheelbase mm 4650
Front / Rear Overhang mm 1239 / 966
Front / Rear Tread mm 2200 / 2497
Battery 　 Voltage / Capacity V/Ah 24 / 180
Engine Orginal VOLVE Rated Horsepower bhp / r.p.m 181 / 2300
TAD750VE Rated torque/r.p.m. N.m/r.p.m 1050 / 1500
　 No.of Cylinder Nos. 6
　 Bore x Stroke 　 108 x 130
　 Fuel Tank Capacity Ltrs. 400
Transmission (electro hydraulic) Number of speeds (with / without load) I gear 5 / 5.6
II gear 9.8 / 11
III gera 22 / 24
Operating Pressure for Attachment 　 MPA 17.5
Lift Height 　 duplex standard mast mm 4000
Mast Height 　 Lowered / Extended mm 4000 / 6000

900mm Load Center 30 Ton Forklift , Container Big Forklift Trucks For Airports
After-sale service

Nowadays we have been sell more than 60 countries. All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and product’s quality certificate.

Our company

900mm Load Center 30 Ton Forklift , Container Big Forklift Trucks For Airports

FAQ:

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.



Company imformation
LTMG Machinery Group co.,ltd which was established in 2001,is a leading manufacturer of construction and materials equipment. LTMG the forklift factory already have 15,000 units forklifts annual production capacity with a 120,000 square meters production base
