Container Handling Equipment 3 Ton Boom Forklift With 4500mm Triplex Mast
Container Handling Equipment 3 Ton Boom Forklift With 4500mm Triplex Mast
Container Handling Equipment 3 Ton Boom Forklift With 4500mm Triplex Mast
Container Handling Equipment 3 Ton Boom Forklift With 4500mm Triplex Mast
Container Handling Equipment 3 Ton Boom Forklift With 4500mm Triplex Mast
Container Handling Equipment 3 Ton Boom Forklift With 4500mm Triplex Mast
Container Handling Equipment 3 Ton Boom Forklift With 4500mm Triplex Mast
Container Handling Equipment 3 Ton Boom Forklift With 4500mm Triplex Mast
Container Handling Equipment 3 Ton Boom Forklift With 4500mm Triplex Mast
Container Handling Equipment 3 Ton Boom Forklift With 4500mm Triplex Mast
Container Handling Equipment 3 Ton Boom Forklift With 4500mm Triplex Mast
Container Handling Equipment 3 Ton Boom Forklift With 4500mm Triplex Mast
Specifications
Brand Name :
LTMG
Model Number :
FD30
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1/unit
Price :
negotiable
Supply Ability :
300 Set/Sets per Month
Delivery Time :
30days
Packaging Details :
nude packing
Brand :
LTMG
Warranty :
1 year or 2000 working hours
Engine :
Chinese engine
Mast :
4500mm triplex mast
Power unit :
diesel
Load center :
500mm
Total width :
1225mm
Fork size :
1070mm*125mm*45mm
Description

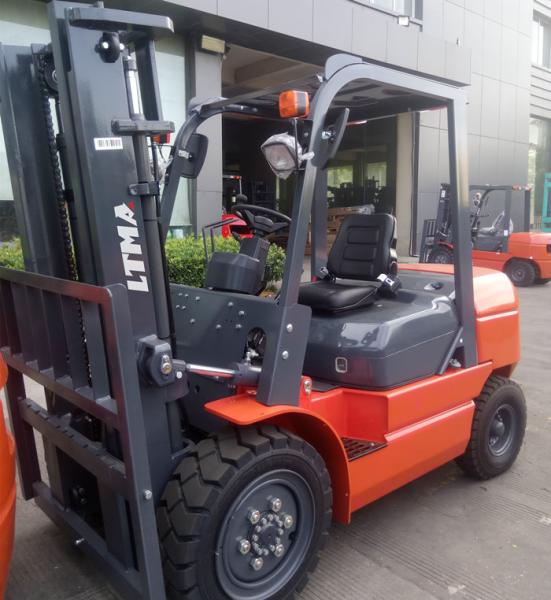

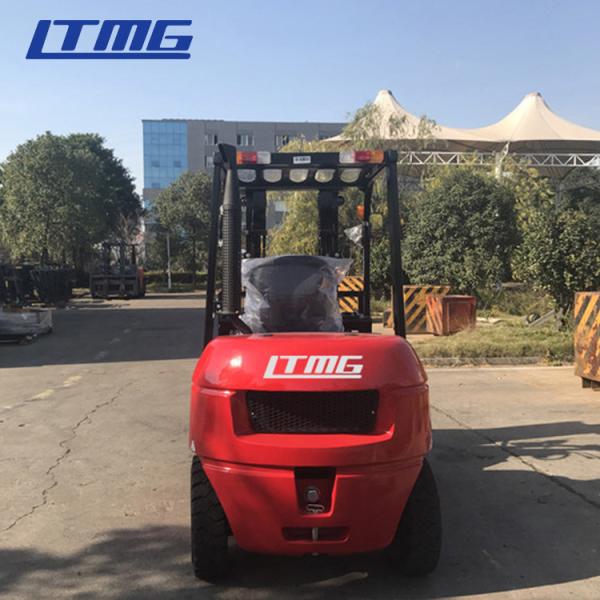

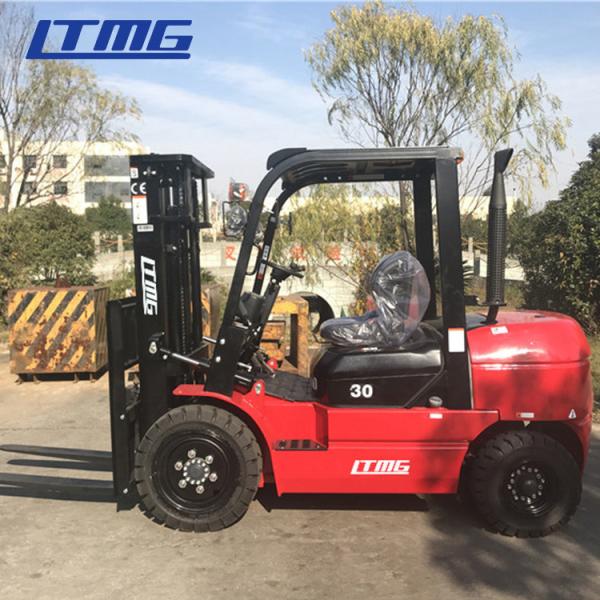

Container handling equipment 3 ton boom forklift with 4500mm triplex mast

Features of boom forklift

ergonomic design: FD30 series forklift with built-in tilt cylinder, High-grade adjustable damping seat to reduce operator’s fatigue,broad vision from it’s door frame.

High strength protect design: wide field of view and high strength protective top frame, maximize protect the safety of the operator.All bolts in the vehicle are high strength bolts of grade 10.9,Improved component impact, anti distortion ability.

Strong driving part: High quality match the driving part and the hydraulic system, which make the whole car more efficient energy saving efficiency.

Electric system: Intelligent electronic monitoring combination instrument,LED screen, high reliability, Electrical system adopts the waterproof sealing plug structure, improve the safety and reliability

Specifications of boom forklift

Features 1 Manufacturer LTMG
2 Model Power shift T/M FD30T
Manual shift T/M FD30C
3 Load capacity kg 3000
6 Operator type Driver/seat
7 Tire type Pneumatic
8 Wheel Front/rear 2/2
Dimension 9 Max. lifting height mm 3000
10 Free lift mm 150
11 Fork size L*W*T mm 1070*125*45
12 Tilt range Mast forward/backward deg 6/12
13 Overall length(without fork) mm 2705
15 Mast height (fork lowering) mm 2075
16 Overall height fork raised With backrest mm 4250
17 Height to head guard mm 2140
18 Turning raduis(outside) mm 2445
19 Front face of fork to front axle mm 480
20 Min. right angle stacking aisle without load length&clearence mm 2925
Performance 21 Speed Max Travelling full/no load km/h 18/19.5
22 Lifting full/no load mm/s 450/500
23 Lowering full/no load mm/s 450/450
24 Max.drawbar pull Power shift T/M full/no load kg 1500/1000
Manual shift T/M full/no load kg 1550/1000
25 Gradeability at 1.6km/h Power shift T/M full/no load % 18/20
Manual shift T/M full/no load % 18/20
Weight 26 Truck weight kg 4380
27 Weight distribution Full load front/rear kg 6490/890
28 No load front/rear kg 1670/2700
Frame 29 Tires Number front/rear 2/2
30 Model front axle 28x9-15-12PR
31 rear axle 6.50-10-10PR
32 Wheelbase mm 1700
33 Tread Front/rear mm 1000/970
34 Ground clearence At lowest point(mast) mm 120
Frame mm 135
35 Brake Service brake Hydraulic-foot pedal
Parking brake Mechanical-hand lever
Engine 36 Battery Voltage/capacity V/AH 12/80
37 Engine Model ISUZU C240
Rated power kw/rpm 34.3/2500
Rated torque N.m/rpm 138/1800
Number of cylinders 4
Placement L 2.369
Fuel tank capacity L 70
38 Transmission Speed forward/backward Power shift T/M Manual shift T/M 1-1 power shift T/M 2-2 manual shift T/M
39 Operating pressure Hydraulic system pressure kg/cm²

boom forklift

Container Handling Equipment 3 Ton Boom Forklift With 4500mm Triplex MastContainer Handling Equipment 3 Ton Boom Forklift With 4500mm Triplex Mast

After-sale Service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.

Our company

Container Handling Equipment 3 Ton Boom Forklift With 4500mm Triplex Mast

FAQ:

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
