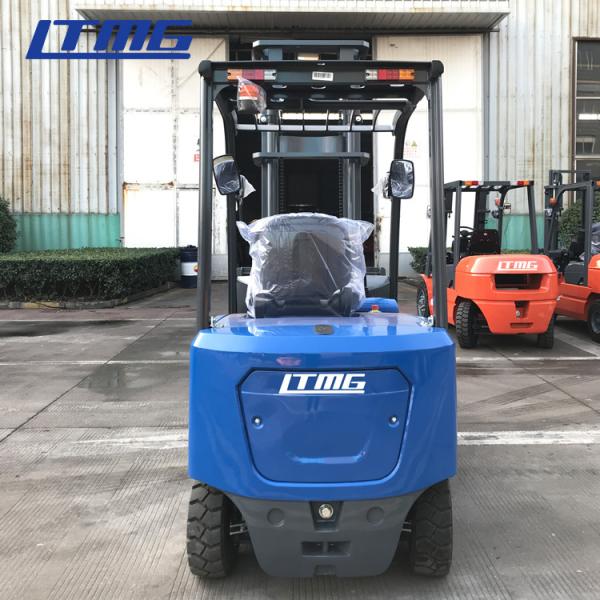

3 Stage 6.5M Mast Mini Electric Forklift Truck For Freight Yard 2.5 Ton 48V AC
3 Stage 6.5M Mast Mini Electric Forklift Truck For Freight Yard 2.5 Ton 48V AC
3 Stage 6.5M Mast Mini Electric Forklift Truck For Freight Yard 2.5 Ton 48V AC
3 Stage 6.5M Mast Mini Electric Forklift Truck For Freight Yard 2.5 Ton 48V AC
3 Stage 6.5M Mast Mini Electric Forklift Truck For Freight Yard 2.5 Ton 48V AC
3 Stage 6.5M Mast Mini Electric Forklift Truck For Freight Yard 2.5 Ton 48V AC
3 Stage 6.5M Mast Mini Electric Forklift Truck For Freight Yard 2.5 Ton 48V AC
3 Stage 6.5M Mast Mini Electric Forklift Truck For Freight Yard 2.5 Ton 48V AC
Specifications
Brand Name :
LTMG
Model Number :
FB25
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 unit
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
300 unit per month
Delivery Time :
30days
Packaging Details :
nude packing. fix in container
battery charging time :
10hours
Tyre/Front wheel :
21x8-9-16PR
Tyre/Back wheel :
18x7-8-14PR
Type :
Powered Pallet Truck
Max. Lifting Height :
6.5m
working time :
8 hours
battery :
lead acid battery
Ground clearance: :
115mm
Description

2.5 Ton Mini Electric Forklift Truck with 48V AC 3 Stage 6.5M Mast

Main Features
Advantages of AC control system
AC motor is exempted of maintenance. There is no carbon brush, brush carrier and other easily damaged parts that require regular maintenance. The repair fee is low.
AC power system has a high efficiency, with overall protective functions, which largely improves reliability and lifespan.
It can realize prevention from slope slide that series-excited electronic control cannot realize.
It omits multiple contactors in series-excited control (e.g.: turning, bypass, regenerated contactor, etc.)
The pulsation of storage battery’s and motor’s working current reduces largely. Reliability and lifespan largely improve.

The specification of 2.5 ton electric forklift truck

Technical secification of battery forklift-AC motor
Features1Manufacturer LTMG
2Model FB25
3Load capacity kg2500
4Load center mm500
5Power unitBattery ,diesel ,gasolineBattery
6Operator type Driver/seat
7Tire typeFront/rear Air tires
8WheelNumber Front/rear2X/2
Dimension9Max. lifting height mm6500
10Free lift mm160
11Fork sizeL*W*Tmm1070*122*40
12Tilt rangeMast forward/backwarddeg6-12
13Overall length(without fork) mm2285
14Total width mm1150
15Mast height (fork lowering) mm1995
16Overall height fork raisedWith backrestmm4030
17Height to head guard mm2145
18Turning raduis(outside) mm2000
19Front face of fork to front axle mm445
20Min. right angle stacking aislenot add load length&clearencemm1935
Performance21SpeedMax Travelling full/no loadkm/h13.5/14.5
22Lifting full loadmm/s240
23Lifting no loadmm/s450
25Gradeabilityfull load%12.5
Weight26Truck weight kg3820
27Weight distributionFull load front/rearkg5425/895
28No load front/rearkg1425/2395
Frame29TiresNumberfront/rear2/2
30Modelfront axle21x8-9-16PR
31rear axle18x7-8-14PR
32Wheelbase mm1400
33TreadFront/rearmm955/950
34Ground clearenceAt lowest point(mast)mm110
Framemm115
35BrakeService brake Hydraulic-foot peda
Parking brake Mechanical lever
Electric motor and controller36BatteryVoltage/capacityV/AH/5hr48V-565
37Weight (standard)kg945
38Electric motorDriving motorkw/60min8
39Hydraulic driving motorkw/5min8.6
40Control typeElectric driving1
41Operating pressureHydraulic system pressurekg/cm²175
NOTE: 1.Drving AC choppedwave control mode /lifting AC voltage control mode

3 Stage 6.5M Mast Mini Electric Forklift Truck For Freight Yard 2.5 Ton 48V AC

Application

Our electric forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.


Company information
LTMG Machinery Group co.,ltd which was established in 2001,is a leading manufacturer of construction and material equipment. LTMG Machinery Group owns two manufacturing factories. The wheel loader factory locates in Xiamen City and the forklift factory already have 15,000 units forklifts annual production capacity with a 120,000 square meters production base.

Our company
3 Stage 6.5M Mast Mini Electric Forklift Truck For Freight Yard 2.5 Ton 48V AC


FAQ:

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
