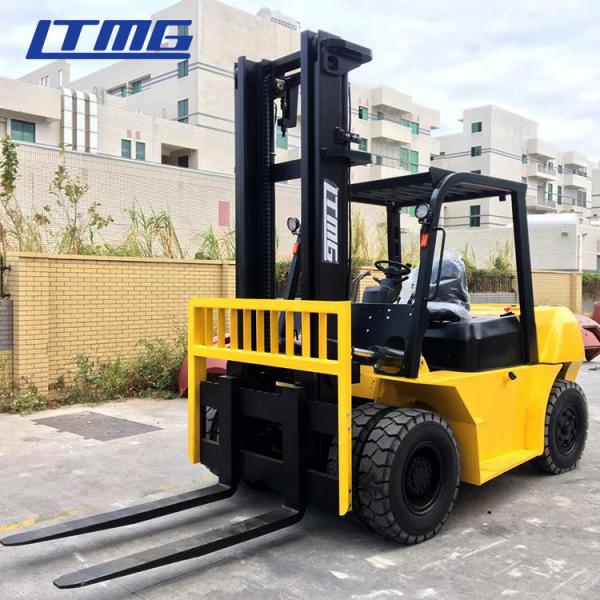

LTMG forklift 7t diesel forklift with three stage mast 4.8m lifting height
LTMG forklift 7t diesel forklift with three stage mast 4.8m lifting height
LTMG forklift 7t diesel forklift with three stage mast 4.8m lifting height
LTMG forklift 7t diesel forklift with three stage mast 4.8m lifting height
Specifications
Brand Name :
LTMG
Model Number :
FD70
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 unit
Price :
USD19400-20000/Unit
Payment Terms :
T/T, L/C, MoneyGram, Western Union
Supply Ability :
300 units per month
Delivery Time :
25days
Packaging Details :
Nude package, fix in container
Type :
Powered Pallet Truck
lifting capacity :
7000kg
Overall dimension :
3565*2010*2500mm
Battery Voltage :
2x12V-80AH
Load center: :
600mm
engine :
Chinese engine, isuzu engine
optional :
solid tires, side shift
warranty :
1 year or 2000 working hours
Description

Specifications of 7 ton diesel forklift:

General 1 Model FD70
2 Power Type Diesel
3 Rated Capacity kg 7000
4 Load Centre mm 600
Characteristic&Dimension 5 Lift Height mm 3000
6 Fork Size L×W×T mm 1220×150×70
7 Mast Tilt Angle F/R Deg 6°/12°
8 Fork Overhang (Wheel center to fork face) mm 595
9 Ground Clearance(Bottom of mast) mm 200
10 Overall Dimension Length to face of fork(Without fork) mm 3565
11 Overall Width mm 2010
12 Mast Lowered Height mm 2500
13 Mast Extended Height(With backrest) mm 4415
14 Overhead Guard Height mm 2430
15 Turning Radius (outside) mm 3350
Performance 16 Speed Travel (Full load) km/h 30
17 Lifting (Full load) mm/s 460
18 Max.Gradeability % 20
Chassis 19 Tyre Front mm 8.25-15-14PR
20 Rear mm 8.25-15-14PR
21 Wheelbase mm 2250
22 Self weight kg 9750
Power&Transmission 23 Battery Voltage/Capacity V/Ah (12/80) x 2
24 Engine Model
25 Manufacture
26 Rated output/r.p.m. kw
27 Rated torque/r.p.m. N·m
28 No.of Cylinder
29 Bore×Stroke mm
30 Displacement cc
31 Fuel Tank Capacity L 125
32 Transmission Type Hydraulic
33 Stage FWD/RVS 2/2

LTMG forklift 7t diesel forklift with three stage mast 4.8m lifting heightLTMG forklift 7t diesel forklift with three stage mast 4.8m lifting height

7t diesel forklift feature

1. Latest technology Diesel engines have EPA tier 3 and EU stage IIIA rated engines certified to meet/exceed CARB emissions.

2. Forward visibility has been improved 10%.The wide mast, with lift chain spacing, makes the view forward less cluttered, enhance safety and improve productivity.

3. Equipped with Chinese powerful and reliable engines with excellent environmental performance; Original imported Isuzu, Mitsubishi and Cummins engines are optional.

4.Adopt advanced load sense technology which offers flow for steering system to save energy ,protect environment ,and lower the system heat.

After-sale service
Nowadays more than 100 agents around the world can supply LTMG professional after-sale service.
All the products of LTMG supplied with one year or 2000 workling hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and product’s quality certificate.

FAQ:

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
