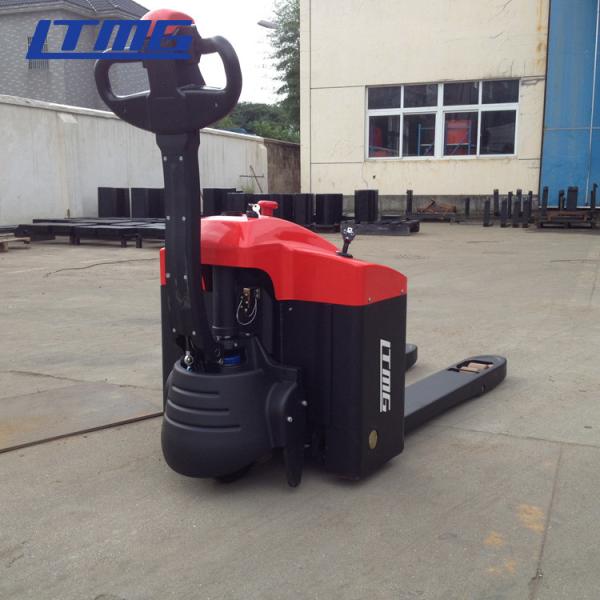

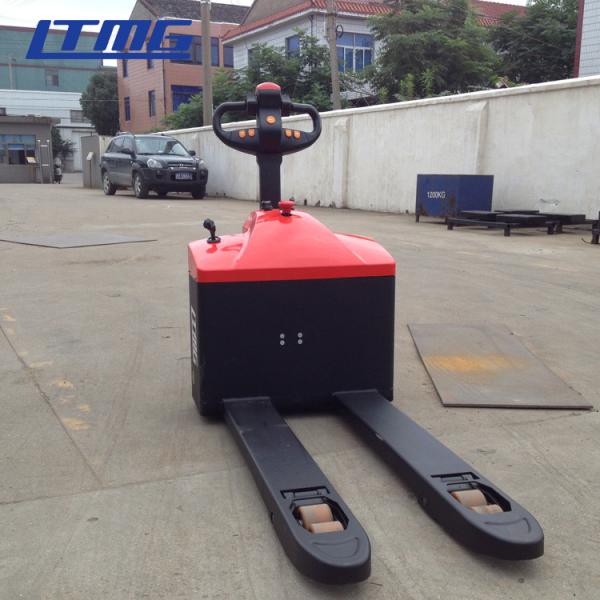

80Ah Battery Powered Pallet Truck 1150mm Fork Length 1500kg Rated Capacity
80Ah Battery Powered Pallet Truck 1150mm Fork Length 1500kg Rated Capacity
80Ah Battery Powered Pallet Truck 1150mm Fork Length 1500kg Rated Capacity
80Ah Battery Powered Pallet Truck 1150mm Fork Length 1500kg Rated Capacity
80Ah Battery Powered Pallet Truck 1150mm Fork Length 1500kg Rated Capacity
80Ah Battery Powered Pallet Truck 1150mm Fork Length 1500kg Rated Capacity
80Ah Battery Powered Pallet Truck 1150mm Fork Length 1500kg Rated Capacity
80Ah Battery Powered Pallet Truck 1150mm Fork Length 1500kg Rated Capacity
Specifications
Brand Name :
LTMG
Model Number :
FEP15
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 unit
Price :
usd 800-813 per set
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
300 unit per month
Delivery Time :
30days
Packaging Details :
nude packing. in contaioner
battery charge :
include
Drive motor: :
24V/0.75Kw
Weight(without battery): :
220(170)kg
fork length :
1150mm
Battery: :
2*12V/65Ah
Turning radius :
1460mm
Overall Dimensions: :
1620*685*1174mm
tires type :
PU
Description

1.5 ton small powered pallet truck , electric pallet truck with 80Ah battery

1.5 ton powered pallet truck feature

1. Overall exterior compact, short turning radius for operation in narrow tunnel;
2. USA CURTIS controller, PWM pulse width timing with high frequency, smooth operation and efficiency;
3. No maintenance solar battery, small volume, light weight, easy to replace;
4. Standard lifting power limiting function, reduce the waste of energy, prolong the service life of the hydraulic system and the associated component;
5. High wear-resistant polyurethane tyre, good elasticity, strong bearing capacity;

The specification of 1.5 ton powered pallet truck

FULL ELECTRIC PALLET TRUCKMODEL
ItemSpecificationUnitFEP15T
1GeneralRated capacityKg1500
2Load centermm600
3Drive type　Standed
4Motor brake　Electromagnetic
5Load distance (centerline of front axle to front face of forks)mm963/1054
6Battery weightKg48
7Self weight (with battery)Kg286
8Full Load per Axle - Driving side / bearing sideKg675/1115
9Empty Load per Axle - Driving side / bearing sideKg230/60
10DimensionsLifting Height (standard)mm120
11Fork min. ground clearancemm85
12Adjust width of fork (standard)mm520/650
13Fork sizemm47/160/1220
14Minimum ground clearancemm24
15Overall lengthmm1660
16Overall widthmm700
17Overall height (including handle )mm1235
18Bodywork heightmm677
19Wheel tread (front/rear)mm490/490
20Supporting wheel treadmm1310
21Minimum turning radiusmm1976
22Stacking right angle aisle width (1200mm pallet)mm1976
23PerformanceMax. driving speed (full)Km/h5
24Max. driving speed (empty)Km/h5.2
25Max. lifting speed (full)mm/s27
26Max. lifting speed (empty)mm/s35
27Max. declining speed (full)mm/s42
28Max. declining speed (empty)mm/s27
29Gradeability full/empty%5-8
30Steering angle°205
31Sound level at the driver's eardB(A)<70
32WheelWheels material　Polyurethane
33Wheel number (front/rear)　4-3
34Drive wheel (mm)mmφ252X89
35Load wheel (mm)mmφ74X70
36Balance wheel (mm)mmφ100X40
37Power and ControlTravel motorKW0.8
38Lift motorKW0.6
39VoltageV2X12
40Battery capacityAh80
41Power　Electric


80Ah Battery Powered Pallet Truck 1150mm Fork Length 1500kg Rated Capacity80Ah Battery Powered Pallet Truck 1150mm Fork Length 1500kg Rated Capacity80Ah Battery Powered Pallet Truck 1150mm Fork Length 1500kg Rated Capacity

After-sale service
Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detailed clauses and policies please see to our website and product’s quality certificate.
