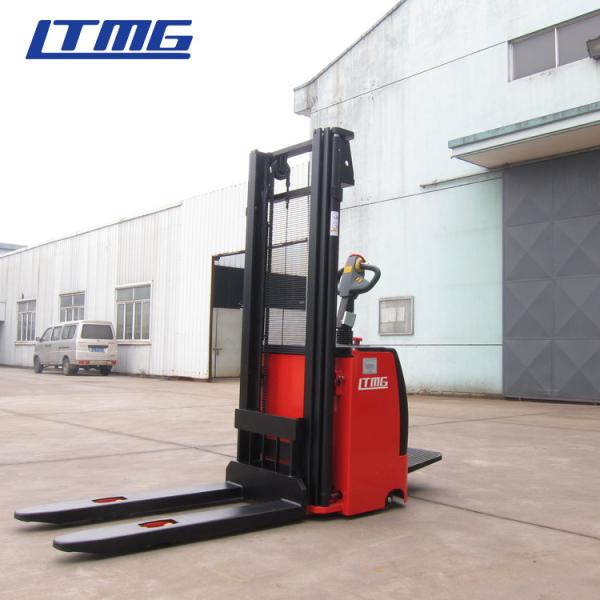

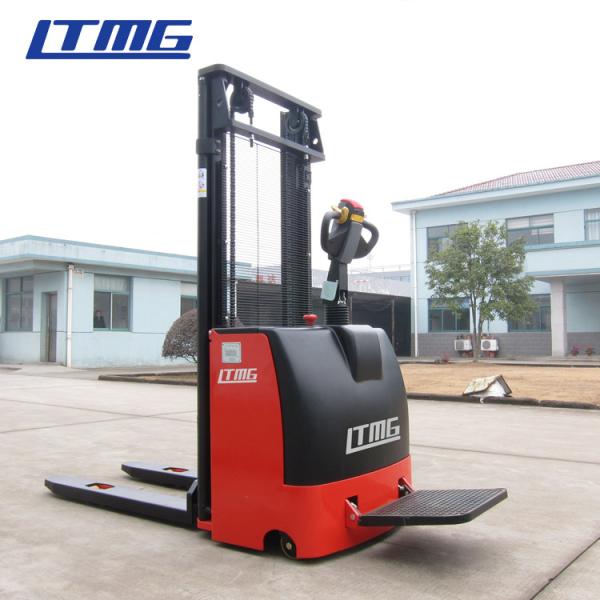

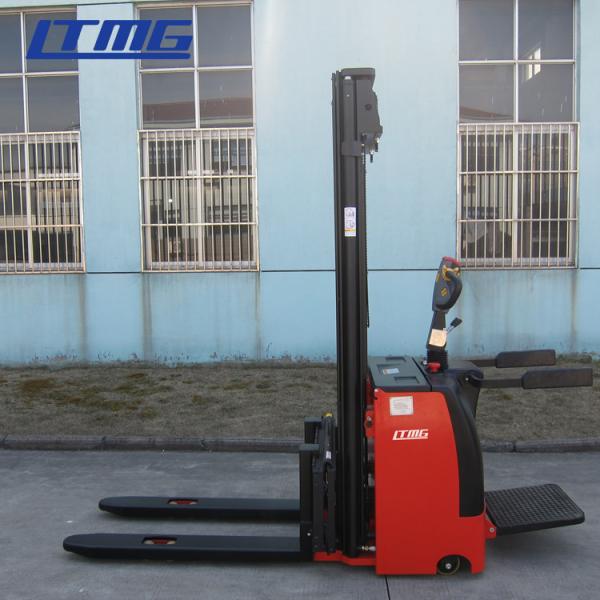

Automatic Lifting Long Life Electric Pallet Stacker Battery Powered 1500kg Capacity
Automatic Lifting Long Life Electric Pallet Stacker Battery Powered 1500kg Capacity
Automatic Lifting Long Life Electric Pallet Stacker Battery Powered 1500kg Capacity
Automatic Lifting Long Life Electric Pallet Stacker Battery Powered 1500kg Capacity
Automatic Lifting Long Life Electric Pallet Stacker Battery Powered 1500kg Capacity
Automatic Lifting Long Life Electric Pallet Stacker Battery Powered 1500kg Capacity
Specifications
Brand Name :
LTMG
Model Number :
ERB15
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1/unit
Price :
USD 2043-2631 PER SET
Supply Ability :
300 Set/Sets per Month
Delivery Time :
30days
Packaging Details :
nude packing
Mast type :
2-Stage STD
Load capacity :
1500kg
Wheel base :
1300mm
Wheel type :
PU
Battery weight :
235kg
Service weight with battery :
1370kg
Warranty :
1 year or 2000 working hours
Brand :
LTMA
Description

Automatic lifting limit proximity switch long life 1.5 ton electric stacker 1500kg battery pallet stacker with CE , ISO

Features of Automatic lifting limit proximity switch long life 1.5 ton electric stacker 1500kg battery pallet stacker with CE , ISO

1, Lift height: 3000-3600mm;
2, 24V big capacity battery and low noise;
3, Non-pollution environmental friendly;
4, AC controller and CE ISO high quality certificated.
5, 4 hour operation at full charge
6, emergency switch
7, Top-Quality AC control system
8, large capacity battery
9, Smooth speed control from ZAPI/CURTIS
10, powerful efficient AC traction system
11, Powerful and Intelligent Performance

The specifications of Automatic lifting limit proximity switch long life 1.5 ton electric stacker 1500kg battery pallet stacker with CE , ISO

Model 　 ERB15
Mast type 　 2-Stage STD
Load capacity kg 1800
Load center mm 600
Wheel base mm 1310
Operating type 　 Walkie/Stand on
Wheels
Wheel type 　 PU
Wheel quantity driving wheel/Balance wheel/Bearing wheel 　 2001-2-4
Demension
Standard lift height mm 3000
Lowered fork height mm 55
Fork size(length/width/thickness) mm 1070(920/1150/1200)/100/40
Overall length mm 1970/2390
Overall width mm 1170/1320/1470/1650
Outside with between legs mm 1170/1320/1470/1650
Inside with between legs mm 970/1120/1270/1450
Min.turning radius mm 1565/1975
Min.aisle width for pallets 800×1200 mm 2230/2560
Min.aisle width for pallets 1000×1200 mm 2260/2585
Min.groud clearance mm 50
Performance
Travel speed,laden/unladen km/h 5/5.8
Lift speed,laden/unladen mm/s 80/120
Travel speed,laden/unladen mm/s 80/90
Gradeability,laden/unladen % 5/8
Electric configuration
Drive motor /Lift motor/Steering motor kw AC1.5/DC3.0/DC0.15
Battery voltage V 24
Battery capacity Ah 280
Brake 　 Electromagnetic/Regenerative
Controller 　 CURTIS
Weight
Battery weight kg 235
Service weight with battery kg 1370

Automatic lifting limit proximity switch long life 1.5 ton electric stacker 1500kg battery pallet stacker with CE , ISO

Automatic Lifting Long Life Electric Pallet Stacker Battery Powered 1500kg CapacityAutomatic Lifting Long Life Electric Pallet Stacker Battery Powered 1500kg Capacity

After-sale service
Nowadays we have been sell more than 100 countries. All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.
Detail clauses and policies please see to our website and product's quality certificate.
