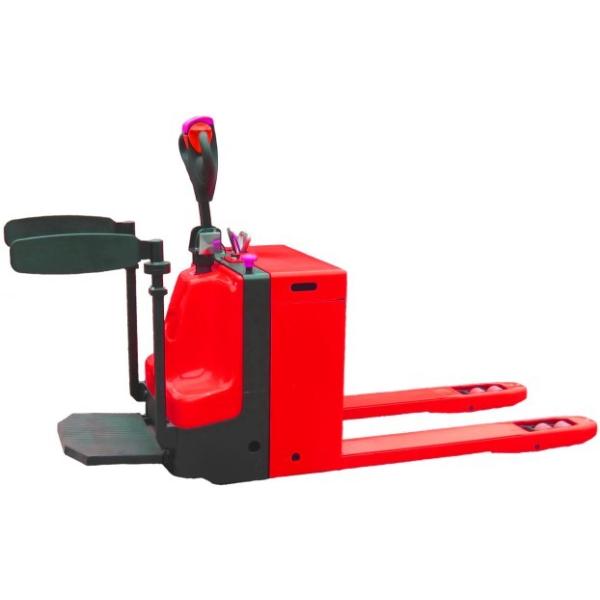

Battery Operated Full Electric Powered Pallet Truck 1.5 Ton Motorised Pallet Trolley
Battery Operated Full Electric Powered Pallet Truck 1.5 Ton Motorised Pallet Trolley
Battery Operated Full Electric Powered Pallet Truck 1.5 Ton Motorised Pallet Trolley
Battery Operated Full Electric Powered Pallet Truck 1.5 Ton Motorised Pallet Trolley
Battery Operated Full Electric Powered Pallet Truck 1.5 Ton Motorised Pallet Trolley
Battery Operated Full Electric Powered Pallet Truck 1.5 Ton Motorised Pallet Trolley
Specifications
Brand Name :
LTMG
Model Number :
LTMG15
Certification :
CE ISO
Place of Origin :
Ningbo,China
MOQ :
1 units
Price :
USD1050-1220 units
Supply Ability :
300 units one month
Delivery Time :
30
Packaging Details :
fixed in container
Color :
Customized Color
Load Center :
600mm
Pump stations :
24V/0.8Kw
Drive motor :
24V/0.75Kw
Battery :
2*12V/65Ah
Weight(without battery) :
220(170)kg
Total length(pedal down) :
1620mm
Total height :
1174mm
warranty :
1 year or 2000 working hours
Description

Specifications of full electric pallet jack1.5 ton pallet truck with Curtis controller

1. Imported Curtis CURTIS electric control system responsive, easily manipulated, high reliability, with regenerative braking, reverse braking and stepless speed regulation and other functions.
2. Curve control technology automatically reduces travel speed, eliminating the possibility of rollover when curve too fast.
3. FREI operating handle imported from Germany, set to accelerate, change direction, horn, brake, emergency reverse, and other functions into on, easy to learn.
4. Operating handle in the vertical and horizontal directions are in the braking state, Improve vehicle safety.
5. Low-voltage protection system, extend battery life.
6. Curtis original instrument, can accurately display the battery level, time and other information.
7. With emergency off switch and emergency reverse means more security.
8. Advanced fast and efficient intelligent type charging machine, shorten the charging time.
9. Imported high-performance hydraulic pump station, set the DC motor, gear pumps, values and piping in one of the originals
10. The vehicle has small size, high reliability, smooth, energy-saving, noise reduction, environmental protection and other advantages.

Battery Operated Full Electric Powered Pallet Truck 1.5 Ton Motorised Pallet Trolley

el unit LTMG13 LTMG15
Rated load kg 1300 1500
Fork width mm 560/685 560/685
Fork length mm 1150 1150
Minimum fork height mm 85 85
Maxmum fork height mm 200 200
Turning radius mm 1460 1460
Load Center mm 600 600
Pump stations 　 24V/0.8Kw 24V/0.8Kw
Drive motor 　 24V/0.75Kw 24V/0.75Kw
Battery 　 2*12V/65Ah 2*12V/65Ah
Weight(without battery) kg 200(163) 220(170)
Total length(pedal down) mm 1620 1620
Overrall width mm 560/685 560/685
Total height mm 1174 1174
　 Full electric pallet truck Manual handling pallet truck
Performance All-electric,easy operation,high efficiency Totally dependent on human drag,time-consuming
Performance Full electric lifting,falling,walking,turning,left and right a few button control,easy and convenient Lifting,walking,turning totally dependent on human resources,work intensity
Safety Security design,fully consider controller's comfort,to ensure safety at full load When fully loaded,in the handling process is prone to rollover accidents result
Maintain Modular production,easy disassembly maintenance,maintenance-free battery Manual configuration,maintenance is simple
Other All-electric,high-grade apperance,to some extent, can replace manual handling car When fully loaded,in the handling process is prone to rollover accidents result

After-sale service
Nowadays we have been sell more than 100 countries. All the products of LTMG supplied withone year or 2000 working hours (which occurs first) period quality warranty.
If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.
Detail clauses and policies please see to our website and product's quality certificate.
