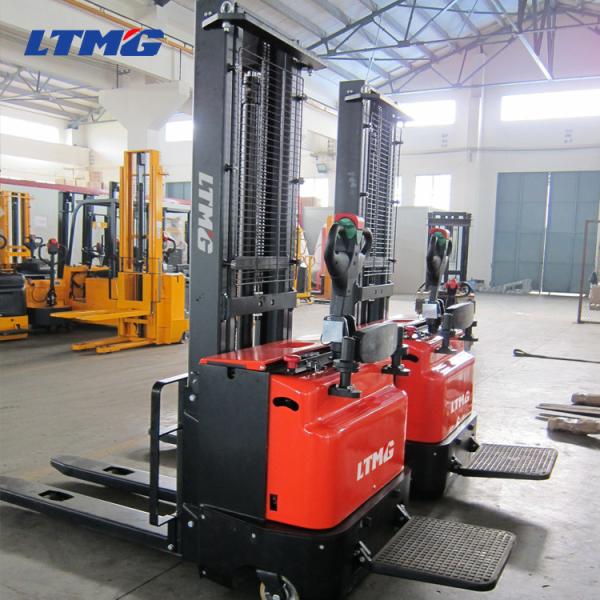

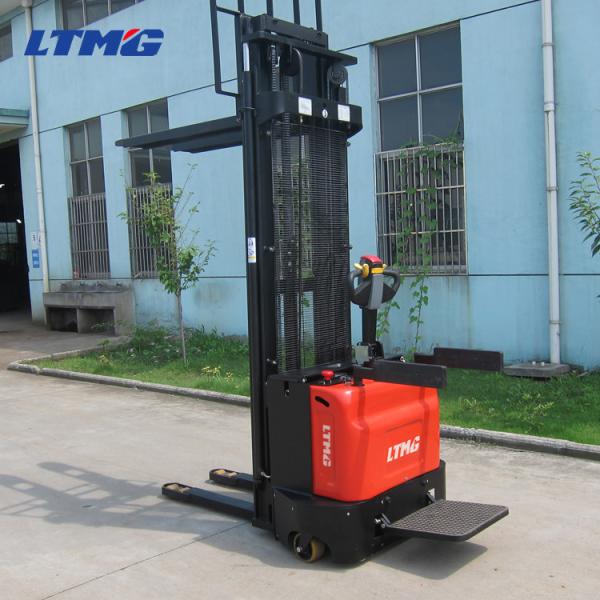

Euro Standard Warehouse Stacker Forklift , Electric Pallet Jack Stacker 2000kg Capacity
Euro Standard Warehouse Stacker Forklift , Electric Pallet Jack Stacker 2000kg Capacity
Euro Standard Warehouse Stacker Forklift , Electric Pallet Jack Stacker 2000kg Capacity
Euro Standard Warehouse Stacker Forklift , Electric Pallet Jack Stacker 2000kg Capacity
Euro Standard Warehouse Stacker Forklift , Electric Pallet Jack Stacker 2000kg Capacity
Euro Standard Warehouse Stacker Forklift , Electric Pallet Jack Stacker 2000kg Capacity
Euro Standard Warehouse Stacker Forklift , Electric Pallet Jack Stacker 2000kg Capacity
Euro Standard Warehouse Stacker Forklift , Electric Pallet Jack Stacker 2000kg Capacity
Specifications
Brand Name :
LTMG
Model Number :
ERB20
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 unit
Price :
usd 2500-3032 per set
Payment Terms :
T/T, Western Union, MoneyGram,, L/C
Supply Ability :
300 unit per month
Delivery Time :
30days
Packaging Details :
nude packing. in container
Fork Length: :
1150mm
warranty :
1year
Lift capacity: :
2 ton
controller :
curtis
charging time :
10hours can charge the battery full
using time :
use 8 hours still battery is empty
Overall Dimensions: :
1847x800x1970mm
Ground clearance :
30mm
Description

Warehouse euro standard forklift electric pallet stacker wholesale for 2000kg capacity

2 ton electric pallet stacker feature

1) AC Motor eliminates carbon brush replacement.

2) Multi-function display with BDI and hour meter.

3) Side way battery is easy to maintain.

4) Damping cushion for low-noice operation.

5) Emergency reversing device equipped handle to keep safe.

6) Auto deceleration function makes operation more safely.

7) Built-in pressure relief valve protect the trucks from overloads, increases the reliability.

The Specification of 2 ton electric stacker

Model 　 ERC200
Type 　 Narrow legs
Mast type 　 2-Stage STD
Load capacity kg 2000
Load center mm 600
Wheel base mm 1325
Operating type 　 Walkle/Stand on
Wheels
Wheel type 　 PU
Wheel quantity driving wheel/Balance wheel/Bearing wheel 　 1/2/4
Demension
Standard lift height mm 3000
Lowered fork height mm 86
Fork size(length/width/thickness) mm 1150(1200)/180/60
Overall length mm 1970/2390
Overall width mm 1050
Outside with between legs mm 570/600/650/685
Inside with between legs mm 180/230/280/315
Min.turning radius mm 1630/1990
Min.aisle width for pallets 800×1200 mm 2180/2580
Min.aisle width for pallets 1000×1200 mm 2210/2600
Min.groud clearance mm 30
Performance
Travel speed,laden/unladen km/h 5/5.5
Lift speed,laden/unladen mm/s 80/120
Travel speed,laden/unladen mm/s 80/90
Gradeability,laden/unladen % ‘5/8
Electric configuration
Drive motor /Lift motor/Steering motor kw AC1.5/DC3.0/DC0.15
Battery voltage V 24
Battery capacity Ah 280
Brake 　 Electromagnetic/Regenerative
Controller 　 Curtis
Weight
Battery weight kg 235
Service weight with battery kg 1280

Euro Standard Warehouse Stacker Forklift , Electric Pallet Jack Stacker 2000kg CapacityEuro Standard Warehouse Stacker Forklift , Electric Pallet Jack Stacker 2000kg Capacity

After-sale service


Nowadays more than 100 agents around the world can supply LTMG professional after-sale service.
All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and product’s quality certificate.
