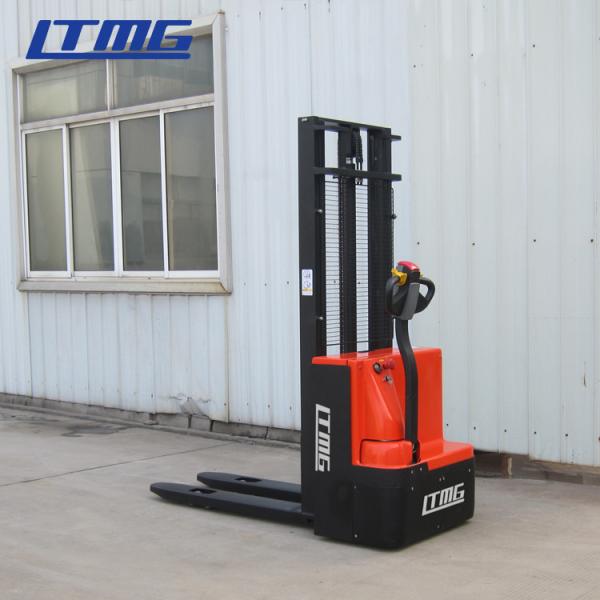

Stand On Electric Walkie Forklift , Battery Operated Pallet Truck PU Wheel Type
Stand On Electric Walkie Forklift , Battery Operated Pallet Truck PU Wheel Type
Specifications
Brand Name :
LTMG
Model Number :
ERB15
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1/unit
Price :
USD 2043-2631 PER SET
Supply Ability :
300 Set/Sets per Month
Delivery Time :
30days
Packaging Details :
nude packing
Brand :
LTMG
Warranty :
1 year or 2000 working hours
Mast type :
2-Stage STD
Load capacity :
1500kg
Load center :
600mm
Wheel type :
PU
Min.groud clearance :
50mm
Controller :
CURTIS
Description

LTMG electric forklift stacker 1.5 ton electric stacker with wide legs

Features of LTMG electric forklift stacker 1.5 ton electric stacker with wide legs

1. What's the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is from 7 days to 30 days.
The specifications of LTMG electric forklift stacker 1.5 ton electric stacker with wide legs
Model 　 ERB15
Type 　 Wide legs
Wheel base mm 1310
Operating type 　 Walkie/Stand on
Wheels
Wheel quantity driving wheel/Balance wheel/Bearing wheel 　 2001-2-4
Demension
Standard lift height mm 3000
Lowered fork height mm 55
Fork size(length/width/thickness) mm 1070(920/1150/1200)/100/40
Overall length mm 1940/2360
Overall width mm 1170/1320/1470/1650
Outside with between legs mm 1170/1320/1470/1650
Inside with between legs mm 970/1120/1270/1450
Min.turning radius mm 1565/1975
Min.aisle width for pallets 800×1200 mm 2230/2560
Min.aisle width for pallets 1000×1200 mm 2260/2585
Performance
Travel speed,laden/unladen km/h 5/6
Lift speed,laden/unladen mm/s 95/130
Travel speed,laden/unladen mm/s 110/100
Gradeability,laden/unladen % 5/8
Electric configuration
Drive motor /Lift motor/Steering motor kw AC1.5/DC3.0/DC0.15
Battery voltage V 24
Battery capacity Ah 280
Brake 　 Electromagnetic/Regenerative
Weight
Battery weight kg 235
Service weight with battery kg 1280

LTMG electric forklift stacker 1.5 ton electric stacker with wide legs

Stand On Electric Walkie Forklift , Battery Operated Pallet Truck PU Wheel Type

After-sale service
Nowadays we have been sell more than 100 countries. All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.
Detail clauses and policies please see to our website and product's quality certificate.
