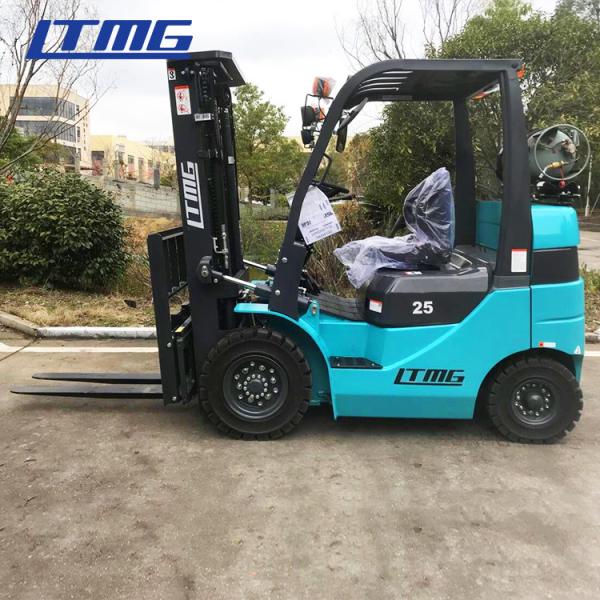

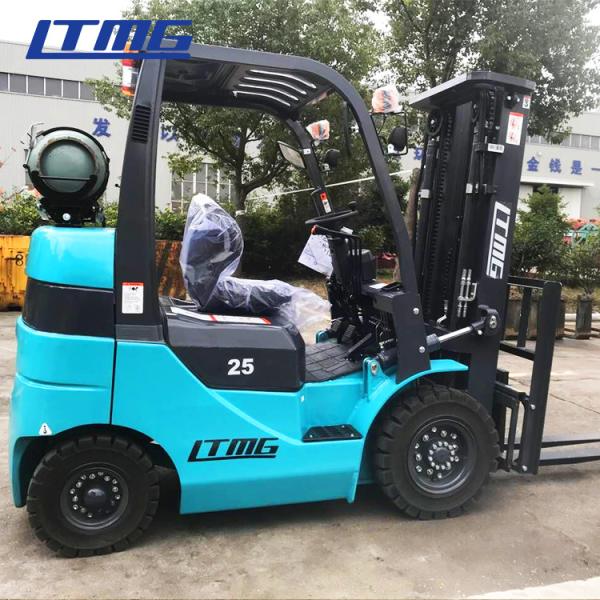

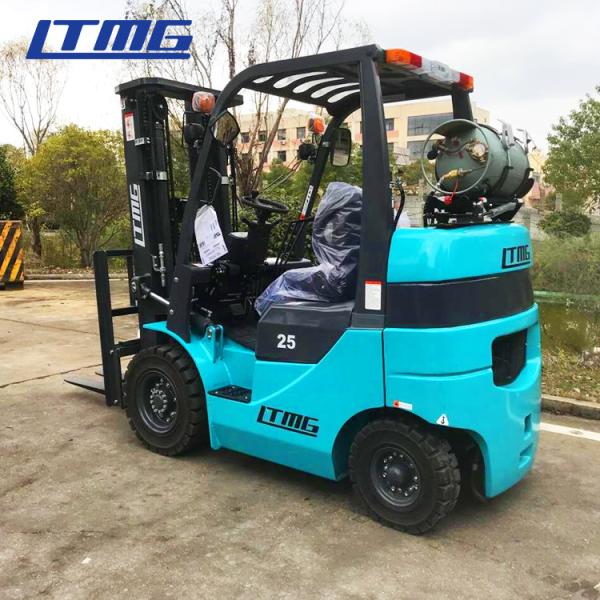

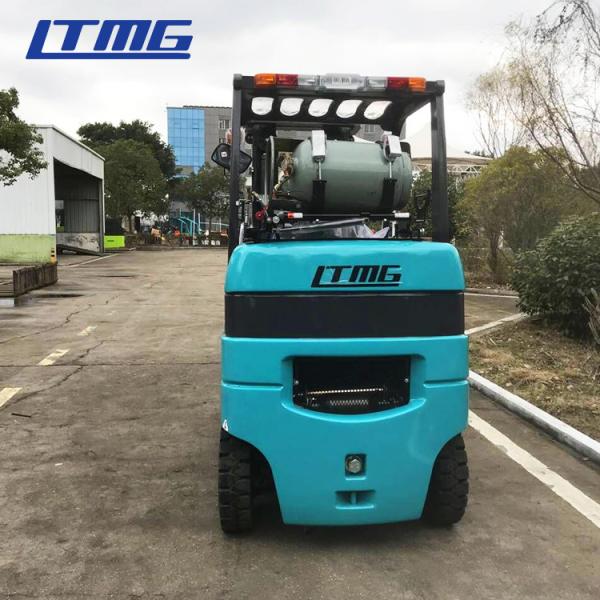

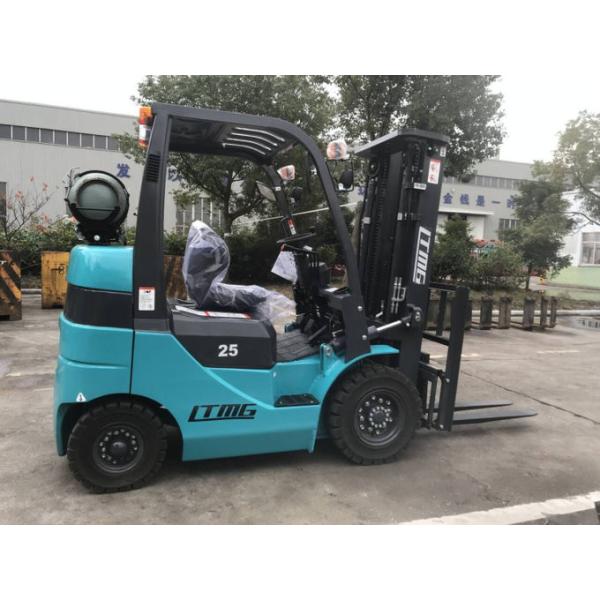

EPA approval engine 2.5 ton lpg forklift suitable for USA market
What are the features of the product:
1. Integrated Frame:The integrated frame further enhances durability & safety for long term operation.
2. Excellent front visual field:This not only ensure safety but also enhances working effiency.
3. Fashionable Dashboard:The fashionable dashboard is clear at a glance for the driver with exquisite screen & a combination of different meters.
4. For LTMG forklift, the engine hood is easy to open, this facilitates maintenance & repairation greatly. Application of man-machine theory can also be reflected from this detail.
Fast and stable performance
Being able to quickly raise and lower the mast, as well tilting forward and backward, the truck provides you the best operational conditions during loading/unloading operations. When the truck is full loaded, mast lowering speed is carefully controlled to ensure safety by the own control valve.
With the adopted common automotive cab layout, the operator requires no special training. The cab also provides both of mental and physical driving comfort, so as to ensure minimal load damage and accident over an arduous 8-hour shift. In addition, the forklift truck can be easily maintained by experienced mechanical engineers due to its simple design, thus ensuring reduced downtime.
The specification of EPA approval engine 2.5 ton lpg forklift
model | FG25 | |
Power Type | LPG | |
Rated Capacity | kg | 2500 |
Load Center | mm | 500 |
lifting height | mm | 3000 |
Fork size( L*W*T) | mm | 1070*120*40 |
Mast Tilt Angle | 6/12 | |
Front Overhang | mm | 445 |
Length to face of fork | mm | 2360 |
Overall width | mm | 1110 |
Mast Lowered Height | mm | 2055 |
Mast Extended Height | mm | 4050 |
Overhead Guard Height | mm | 2080 |
Ground clearence | mm | 85 |
Turning raduis | mm | 2110 |
right angle stacking aisle | mm | 2316 |
Max.Travel | km/h | 17 |
Max.lifting | mm/s | 410 |
Wheelbase | mm | 1400 |
Front | 21*7*15 | |
Rear | 16(1/4)*6*11(1/4) | |
Tread | mm | 902/900 |
Gradeability | % | 20 |
Truck weight | kg | 3900 |
Battery(Voltage/capacity) | V/AH | 12/80 |
Model | K25 EPA | |
Manufacturer | NISSAN | |
Rated output/r.p.m | kw/rpm | 42/2700 |
Rated torque | N.m/rpm | 185/1350 |
Number of cylinders | 4 | |
Bore*Stroke | mm | 89*100 |
Displacement | cc | 2488 |
Fuel tank capacity | L | 55 |
Optional engine : K25/K25EPA/PSI 3.0/PSI 3.0EPA |
Export country and information :
LTMG Machinery is a professional forklift manufacturer, forklift and related products has been exported to more than 60 countries.The quality of our forklift is recognized by our customers.
After-sale service
Nowadays we have been sell more than 60 countries.
All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and product’s quality certificate.
