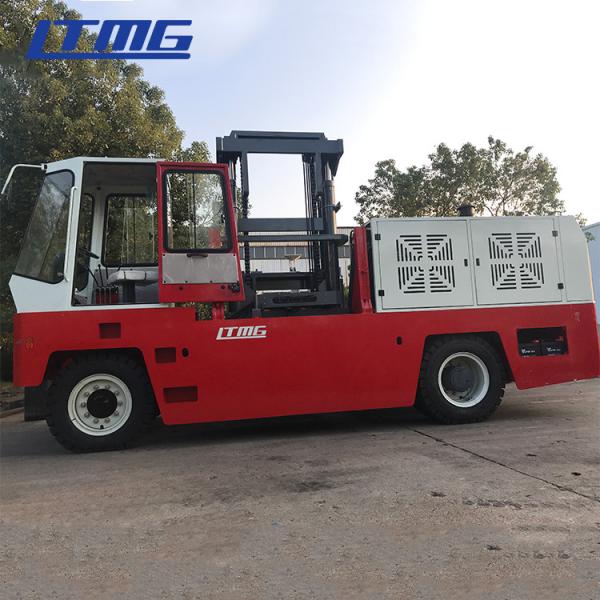

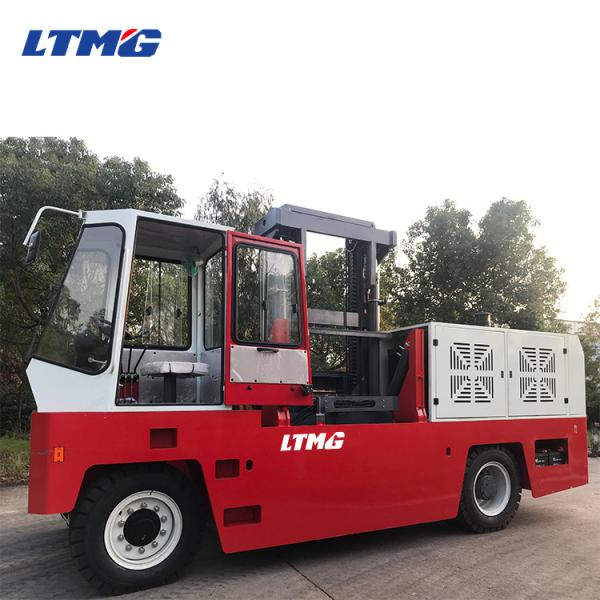

Side Loader Forklift 10 Tons With Alternative Engine And Color goods transportation
Side Loader Forklift 10 Tons With Alternative Engine And Color goods transportation
Side Loader Forklift 10 Tons With Alternative Engine And Color goods transportation
Side Loader Forklift 10 Tons With Alternative Engine And Color goods transportation
Side Loader Forklift 10 Tons With Alternative Engine And Color goods transportation
Side Loader Forklift 10 Tons With Alternative Engine And Color goods transportation
Specifications
Brand Name :
LTMG
Model Number :
FDS100
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 unit
Price :
USD 59705 PER SET
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Delivery Time :
30days
Packaging Details :
nude packing, in container
Overall Dimensions: :
6250*2620*3240mm
warranty :
1 year
engine :
Chinese engine or ISUZU engine
lifting height :
3.6m
mast :
two stage mast
engine power :
77.2KW
optional :
Okamura transmission
fork length :
1220mm
Description

CE ISO certificated 10 ton side loading forklift air tyre forlift for long goods transportation

10 ton side loader forklift feature
1.Equipped with original imported Yanmar engine. 4.8m 2 stage mast
2.In the warehousing process, when the body go into the channel, the fork can face the shelf or goods. In the loading and unloading operations, the forklift can do not turn in the first time,And then work. this characteristic makes side forklift truck is suitable for narrow channel operations
3.Side forklift is advantageous to the long goods, because long goods is parallel with the body,and this forklift can be not limited by the channel width. The side forklift to faster handling long goods

The specification of LTMG 10 ton side loading forklift

ITEMFDS100
TransmissionHydraulic
Max. lifting capacity/Load center (kg/mm)10000/600
Max. lifting height (laded) (mm)3600
Fork free lift (mm)400
Max. lifting speed (laded) (m/s)≥0.25
Traveling speed (km/h)Forward I8.3
Forward II31.8
Reverse11.25
Fork tilt anger (front/rear)5/3
Min. turning radius (mm)5800
Gradeability (laded) (%)20
Mini. ground clearance (laded) (mm)220
Dimension (mm)Length6200
Width (without rearview)2600
HeightFork lowered3450
Fork rised5230
Wheel base (mm)3700
Wheel track (mm)2200/2110
Platform height (mm)1340
Platform width (mm)1760
Fork length (mm)1650
Max. fork spacing (mm)1310
Tire model (front/rear) 2/412.00-20-18PR
Weight unladed (kg)15000
Engine ModelLR6105G6X
Rated power (Kw/rpm)77.2/2200
Max. torque/speed (N.m/rpm)372/1400



Side Loader Forklift 10 Tons With Alternative Engine And Color goods transportationSide Loader Forklift 10 Tons With Alternative Engine And Color goods transportation
After-sale Service
Nowadays more than 100 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
