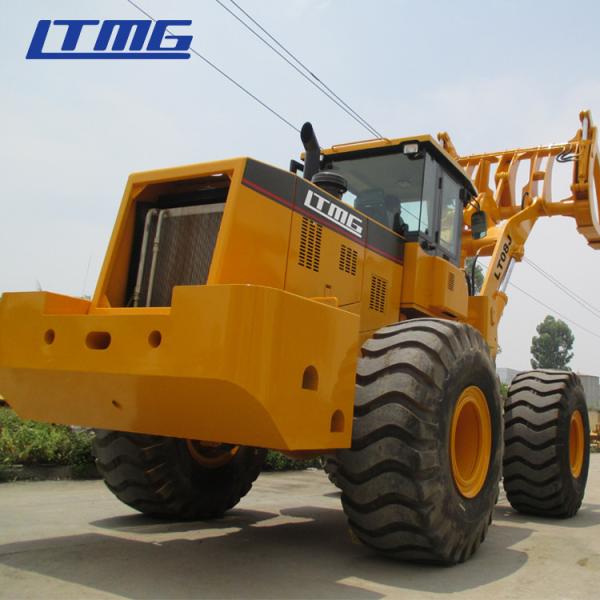

LTMG 8 Ton Comfortable Sugar Cane Grab Loader Mobile Forestry Equipment 169KN Force
LTMG 8 Ton Comfortable Sugar Cane Grab Loader Mobile Forestry Equipment 169KN Force
LTMG 8 Ton Comfortable Sugar Cane Grab Loader Mobile Forestry Equipment 169KN Force
LTMG 8 Ton Comfortable Sugar Cane Grab Loader Mobile Forestry Equipment 169KN Force
LTMG 8 Ton Comfortable Sugar Cane Grab Loader Mobile Forestry Equipment 169KN Force
LTMG 8 Ton Comfortable Sugar Cane Grab Loader Mobile Forestry Equipment 169KN Force
Specifications
Brand Name :
LTMG
Model Number :
LT08J
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 unit
Price :
USD 43888 PER SET
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
300 unit per month
Delivery Time :
30days
Packaging Details :
nude packing
Dimension :
7950*2870*3500 mm
engine power: :
162 kw
Tire Type: :
23.5-25
warranty :
1 year
color :
customized
Engine :
weichai or Cummins
Description

china log loader grapple 8 ton sugar cane loader work in forest

8 ton sugar cane loader features

1. Engine option: Huadong, Yunnei ,Cummins,Dongfang hong,or others according customer requriements.

2. Optional accessories: Quick-change hitche, quick-change bucket, quick-change pallet fork, quick-change log grapple, quick-change grass fork,4 in uckets, snow blad, sweeper.

3.Comfortable Cab can be customized.

4. Operational Pilot Control and Electronic Control.

5. Moderate design of skylight, radio, fan and coat hanger provide you a comfortable and pleasant working environment.More natural ,accurate,and reduce fatigue.

6..Strong Loader frame

7..Small Hub Reduction Axle

8. Hitch On the Rear bumper for pulling other machines.

The Specification of 8 ton log loader

Operating weight 19.5T
Rated load 8T
Engine model weichai WD10G220E11
Rated engine power 162KW
Rated rotate speed 2200r/min
Max.torque ≥745.3N.m
Breakout force 169KN
Driving speed
Forward Ⅰ 0-11.5km/h
Forward Ⅱ 0-38km/h
Reverse Ⅰ 0-16km/h
Gradeability 28°
Overall length 7950mm
Overall width 2870mm
Overall height 3500mm
Wheel base 3300mm
Track base 2260mm
Min.ground clearance 500mm
Max.dumping height 3900mm
Max.dumping reach 1400mm
Torque converter Single stage,4elements
NO.of shifts 1Forwards2/Reverse 1
Transmission Planet-type
Raise time ≤6.8s
Total ≤12.5s
Tyre type 23.5-25
LTMG 8 Ton Comfortable Sugar Cane Grab Loader Mobile Forestry Equipment 169KN Force
LTMG 8 Ton Comfortable Sugar Cane Grab Loader Mobile Forestry Equipment 169KN ForceLTMG 8 Ton Comfortable Sugar Cane Grab Loader Mobile Forestry Equipment 169KN Force
After-sale service

Nowadays more than 60 agents around the world can supply LTMG professional after-sale service.
All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and product’s quality certificate.
