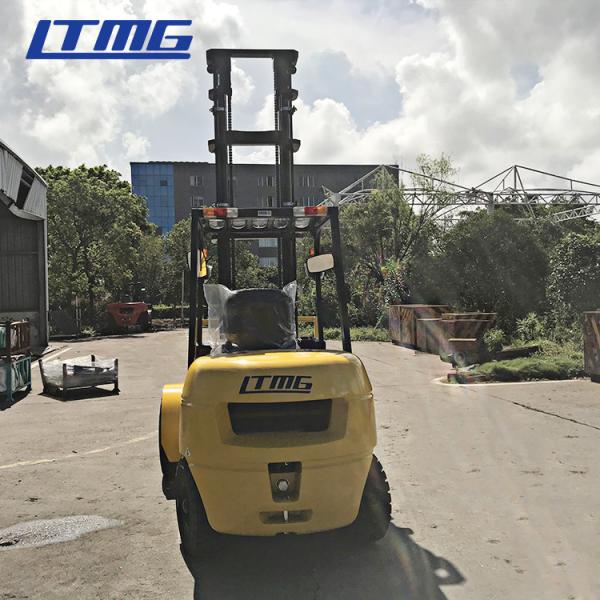

Isuzu Engine Diesel Forklift Truck With High Technical Transmission Components
Isuzu Engine Diesel Forklift Truck With High Technical Transmission Components
Isuzu Engine Diesel Forklift Truck With High Technical Transmission Components
Isuzu Engine Diesel Forklift Truck With High Technical Transmission Components
Isuzu Engine Diesel Forklift Truck With High Technical Transmission Components
Isuzu Engine Diesel Forklift Truck With High Technical Transmission Components
Isuzu Engine Diesel Forklift Truck With High Technical Transmission Components
Isuzu Engine Diesel Forklift Truck With High Technical Transmission Components
Specifications
Brand Name :
LTMG
Model Number :
FD40
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1/unit
Price :
USD 10897-11310 PER SET
Supply Ability :
300 Set/Sets per Month
Delivery Time :
30days
Packaging Details :
nude packing
Brand :
LTMG
certification :
CE/ISO
Item :
forklift boom
Engine :
Isuzu engine
Load capacity :
4000kg
Max. lifting height :
3000mm
Warranty :
1 year or 2000 working hours
Description

Diesel forklift truck LTMG top brand forklift boom with optional with Isuzu engine

Features of forklift boom

1. Frame: wider opening low pedals, installed with porous and skid resistant plate, making convenient and safer for the operator's usage.
2. Transmission system: High technical transmission components ensure sound quality and reliable performance. The transmission modes consist of mechanical transmission (with synchronizer, convenient operation, little impact on the gear switch and absolutely free from clutch shifting friction) and hydraulic transmission (advanced operational torque converter and gearbox with stable transmission).
3. Loading and unloading: widely used hydraulic ascending/ descending system with greater visibility. Gantry framing structure is firm, with higher strength and is durable. The service life of integral dual-hardness roller is long, and the gantry guide rail suffers little wearing.
4. Low center of gravity design ensures efficiency in the forklift's stability and safety during the entire operation.

Specifications of forklift boom

Features Manufacturer LTMG
Model Power shift T/M FD40T
Manual shift T/M FD40C
Load center mm 500
Power unit Diesel
Operator type Driver/seat
Tire type Pneumatic
Wheel Front/rear 2/2
Free lift mm 150
Fork size L*W*T mm 1070*150*50
Tilt range Mast forward/backward deg 6/12
Overall length(without fork) mm 2870
Total width mm 1365
Mast height (fork lowering) mm 2150
Overall height fork raised With backrest mm 4250
Height to head guard mm 2140
Turning raduis(outside) mm 2530
Front face of fork to front axle mm 485
Min. right angle stacking aisle without load length&clearence mm 2940
Performance Speed Max Travellin full/no load km/h 16.5/18
Lifting full/no load mm/s 380/480
Lowering full/no load mm/s 450/420
Max.drawbar pull Power shift T/M full/no load kg 2200/1000
Manual shift T/M full/no load kg 2200/1000
Gradeability at 1.6km/h Power shift T/M full/no load % 18/20
Manual shift T/M full/no load % 18/20
Weight Truck weight kg 5050
Weight distribution Full load front/rear kg 7890/1140
No load front/rear kg 1810/3240
Frame Tires Number front/rear 2/2
Model front axle 250-15-16PR
rear axle 6.50-10-10PR
Wheelbase mm 1800
Tread Front/rear mm 1120/970
Ground clearence At lowest point(mast) mm 120
Frame mm 135
Brake Service brake Hydraulic-foot pedal
Parking brake Mechanical-hand lever
Engine Battery Voltage/capacity V/AH 12/80
Engine Model Deutz engine CA498
Rated power kw/rpm 44.8/2450
Rated torque N.m/rpm 186/1800
Number of cylinders 4
Placement L 3.059
Fuel tank capacity L 70
Transmission Speed forward/backward Power shift T/M Manual shift T/M 1-1 power shift T/M 2-2 manual shift T/M
Operating pressure Hydraulic system pressure kg/cm² 180

forklift boom

Isuzu Engine Diesel Forklift Truck With High Technical Transmission ComponentsIsuzu Engine Diesel Forklift Truck With High Technical Transmission ComponentsIsuzu Engine Diesel Forklift Truck With High Technical Transmission Components

After-sale service
Nowadays we have been sell more than 100 countries. All the products of LTMG supplied withone year or 2000 working hours (which occurs first) period quality warranty.
If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.
Detail clauses and policies please see to our website and product's quality certificate.
