LTMG Strong Power 4.5 TONS Skid Steer Loader With Auxiliary Hydraulic Couplers
Features of Skid Steel Loader:
1) Good technical parameters with competitive price;
2) CE and ISO 9001 certificated;
3) A broad product line, innovative designs, and unsurpassed range of job-matched attachments;
4) Full hydraulic drive, direct drive double piston pump by the engine, driven by a dual handle hydraulic motor driven by a gearbox four wheels;
5) Randomly and quickly change or attach various working devices at the job site;
6) Various attachments:Backhoe,Breaker,Angle blade,Auger,Sweeper,Pallet fork,Combinition bucket,Mower,Asphalt cutter, ect;
7) Versatility, maneuverability and reliability.
Advantages:
1) Hydraulic operating system adopts electrically controlled self-locking interlocking design to reduce misuse and use more safely;
2) Double throttle control, hand throttle is more convenient, foot throttle more in line with your daily operating habits;
3) Adopt international quick-change device, quick and easy replacement of all kinds of attachments; hydraulic quick connector can match with most manufacturers' accessories or host.
Speicification of 700kg Skid Steel Loader:
Item | Data | Item | Data |
Max working height(A) | 3490mm | Loading capacity | 700KGS |
Max pin height(B) | 3028mm | Weight | 2860kg |
Max height on bucket level state(C) | 2814mm | Engine | Diesel engine |
Max dumping height (D) | 2266mm | Rated speed | 2500r/min |
Max Dumping distance(F) | 437mm | Type of engine | Four cylinder, water-cooling, four-stroke |
Wheel base(G) | 1044mm | Rated power | 45KW |
Total height(H) | 1979mm | Fuel consumption rate on standard | 240g/KW·h |
Ground clearance | 196mm | Fuel consumption rate on max torque | 238g/KW·h |
Overall length without bucket(K) | 2621mm | Noise | 117dB(A) |
Total length(L) | 3400mm | Generator power | 500W |
Skip width(M) | 1720mm | Voltage | 12V |
Total width(W) | 1665mm | Storage battery | 105AH |
Tread width to center line (P) | 1425mm | Speed | 0-10 Km/h |
Tire’s thickness N) | 240mm | Drive mode | Hydrostatic four-wheel drive |
Departure angle(α) | 19° | Tire | 10-16.5 |
Bucket dump angle(β) | 41° | Hydraulic pump flow for running | 110L/min |
Retracting angle(θ) | 18° | Hydraulic pump flow for working | 50L/min |
Turn radius(R) | 2056mm | System pressure | 15MP |

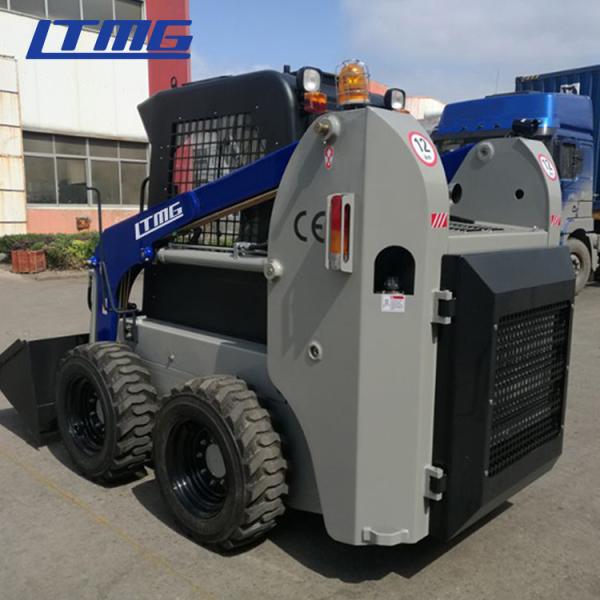

Pictures of Skid Steel Loader:
After-sale service:
Nowadays we have been sell more than 100 countries. LTMG Machinery is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive after-services.
All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.During the warranty period, if there is any part broken because of quality problem (except easy-damaged parts), the defective parts will be repaired or replaced free of charges.
Detail clauses and policies please see to our website and product’s quality certificate.
