2200r / Min Hydraulic Wheel Loader Log Grapple Loader 15 Ton In Lumber Mill
2200r / Min Hydraulic Wheel Loader Log Grapple Loader 15 Ton In Lumber Mill
2200r / Min Hydraulic Wheel Loader Log Grapple Loader 15 Ton In Lumber Mill
2200r / Min Hydraulic Wheel Loader Log Grapple Loader 15 Ton In Lumber Mill
Specifications
Brand Name :
LTMG
Model Number :
LT15J
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 unit
Price :
USD 61204-73424 PER SET
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
300 unit per month
Delivery Time :
30 days
Packaging Details :
nude packing, in container
Operating weight: :
25,000kg
Rated Power :
199KW
Rated Load: :
15000kg
engine :
Weichai
Transmission :
Beilian
Tire type :
26.5R25
Dimension(Long * Breadth * High): :
9500*3230*3600mm
Rated rotate speed :
2200r/nin
Description

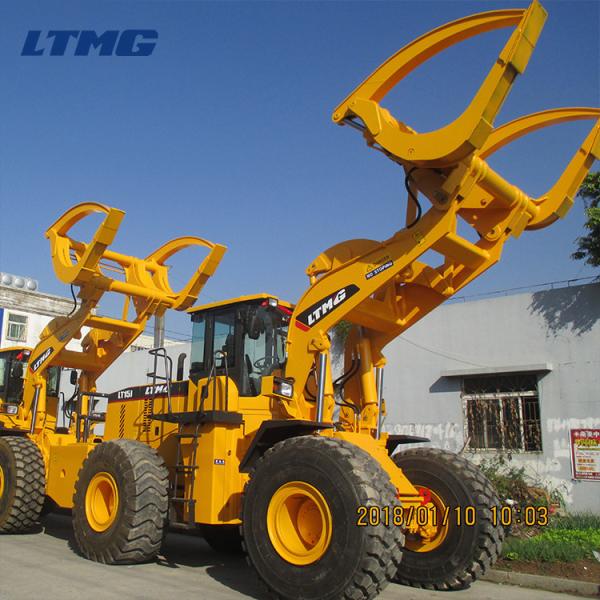

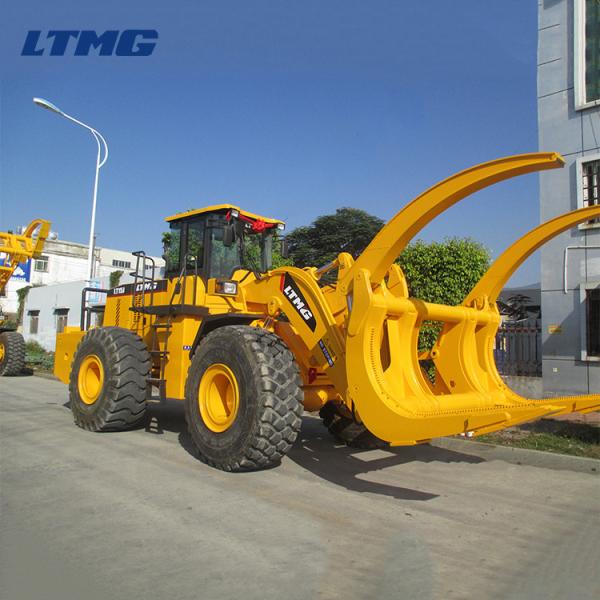

hydraulic wheel loader, 15 ton log grapple loader in Lumber Mill

15 ton log loader feature

quick interchangeable fitting, optional rotary drilling, hammer, loading bukcet, gripper and other accessories, reduce maintenance and operating costs, liberate the workforce, improve the degree of mechanization, low ivestment and high return.

wide construction tire and disc brake bub reducation alxe with high quality and safety, straddle brake which is reliable, flexibly operated, convenient and fast.

comfortable operation environment, new design cabin, adjustable seat

The 15 ton log loader specification

Model LT 15J
Operating weight 25,000kg
Engine Weichai
Rated engine power 199KW
Rated rotate speed 2200r/nin
Max.torque 920N.m
Max.dumping height 3850mm
Rated load 15,000 KG
NO.of shifts Forward 4 For Reverse2
Driving speed
Forward/ReverseⅠ 0-7km/h
Forward/ReverseⅡ 0-11km/h
Forward/ReverseⅢ 0-23km/h
Forward/ReverseIV 0-38km/h
Grade ability ≥25°
Turning angle 35°
Overall length 9500mm
Overall width 3230mm
Overall height 3800mm
Wheel base 3600mm
Track base 2410mm
Transmission Beilian
Cycling time 12s
Tire type 26.5R25
2200r / Min Hydraulic Wheel Loader Log Grapple Loader 15 Ton In Lumber Mill2200r / Min Hydraulic Wheel Loader Log Grapple Loader 15 Ton In Lumber Mill2200r / Min Hydraulic Wheel Loader Log Grapple Loader 15 Ton In Lumber Mill
2200r / Min Hydraulic Wheel Loader Log Grapple Loader 15 Ton In Lumber Mill
After-sale service

Nowadays more than 100 agents around the world can supply LTMG professional after-sale service.
All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and product’s quality certificate.
