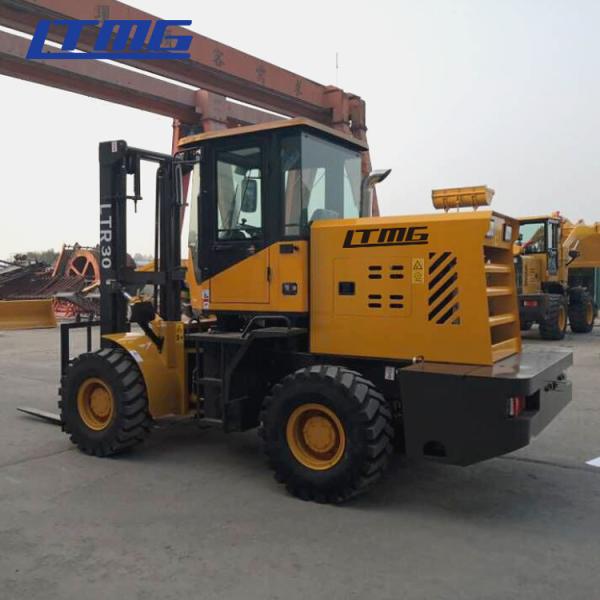

Heavu Duty 3 Ton Mini All Terrain Forklift Truck , Rough Terrain Masted Forklift
Heavu Duty 3 Ton Mini All Terrain Forklift Truck , Rough Terrain Masted Forklift
Heavu Duty 3 Ton Mini All Terrain Forklift Truck , Rough Terrain Masted Forklift
Heavu Duty 3 Ton Mini All Terrain Forklift Truck , Rough Terrain Masted Forklift
Heavu Duty 3 Ton Mini All Terrain Forklift Truck , Rough Terrain Masted Forklift
Heavu Duty 3 Ton Mini All Terrain Forklift Truck , Rough Terrain Masted Forklift
Specifications
Brand Name :
LTMG
Model Number :
LTR30
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1unit
Price :
USD12202-USD15316
Payment Terms :
L/C, T/T
Supply Ability :
800 Set/Sets per Month
Delivery Time :
30 days
Packaging Details :
nude packing
Item :
rough terrain forklift
Product name :
LTMG high quality 3 ton small rough terrain forklift for sale
load Capacity :
3000kg
Load Centre :
600mm
Warranty :
1 year or 2000 working hours
Power Type :
Diesel
Fork Size :
1220mm×125mm×45mm
Engine :
YANMAR engine
Description

LTMG high quality 3 ton small rough terrain forklift for sale

Feature of 3 ton small rough terrain forklift

1 ,Adopt low noise engine with features of low displacement and environmental protection.
2, Full hydraulic mechanic automatic transmission and steering system for flexible and easy handling.
3, Large hauling capacity from its double-axle four wheel drive for improved safety and stability.
4 ,It is suitable to operate on soft soils,grass,terrain,mine sites and many other rugged surfaces.
5, Extensive range of attachments is available for this model to extend its working capacity for heavy duty mining projects.
6. Air filter with a vacuum alarm, double filtration; external high exhaust silencer, the external protective shield against hot processing; setting reversing buzzer, make driving safer.
7. Comfort humanized design uses multifunction steering, European-style instruments, and equipped with car cigarette lighter; excellent damping performance seats with seat belts, side-mounted joystick, so easy to operate, safe, flexible.

The Specification of 3 ton small rough terrain forklift

General Model 　 LTR30T
Power Type 　 Diesel
Characteristic&Dimension Lift Height mm 3000
Mast Tilt Angle F/R Deg 10°/12°
Front Overhang(Wheel center to fork face) mm 601
Ground Clearance(Bottom of mast) mm 265
Overall Dimension Length to face of fork(Without fork) mm 3060
Overall Width mm 1604
Mast Lowered Height mm 2115
Mast Extended Height(With backrest) mm 4250
Overhead Guard Height mm 2200
Turning Radius(outside) mm 2750
　 Min. intersecting aisle mm 2615
Performance Speed Travel (Empty load) km/h 22
Lifting(Full load) mm/s 450
Max.Gradeability % 16
Chassis Tire Front mm 14-17.5-14PR
Rear mm 27×10-12-12PR
Wheelbase mm 1835
Service weight kg 4800
Power&Transmission Battery Voltage/Capacity V/Ah 12/90
Engine Model 　 4TNE98
Rated output/r.p.m. kw 42.1/2300
Rated torque/r.p.m. N·m 186-206/1700
No.of Cylinder 　 4
Bore×Stroke mm 98×110
Displacement cc 3318
Fuel Tank Capacity L 60
Transmission Type 　 Automatic
Drive Type 　 2WD

rough terrain forklift

Heavu Duty 3 Ton Mini All Terrain Forklift Truck , Rough Terrain Masted ForkliftHeavu Duty 3 Ton Mini All Terrain Forklift Truck , Rough Terrain Masted ForkliftHeavu Duty 3 Ton Mini All Terrain Forklift Truck , Rough Terrain Masted Forklift

After-sale service

Nowadays we have been sell more than 100 countries. All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.

Detail clauses and policies please see to our website and product's quality certificate.
