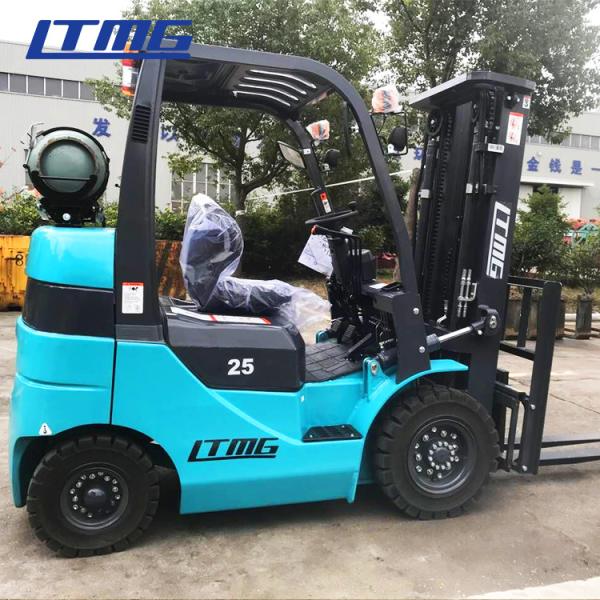

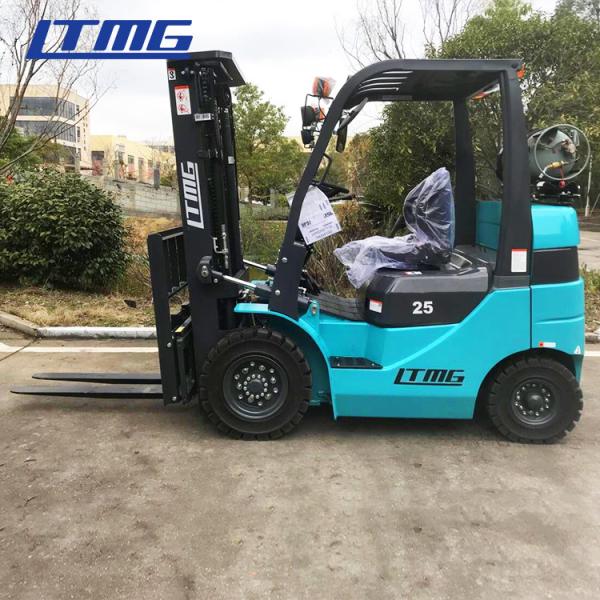

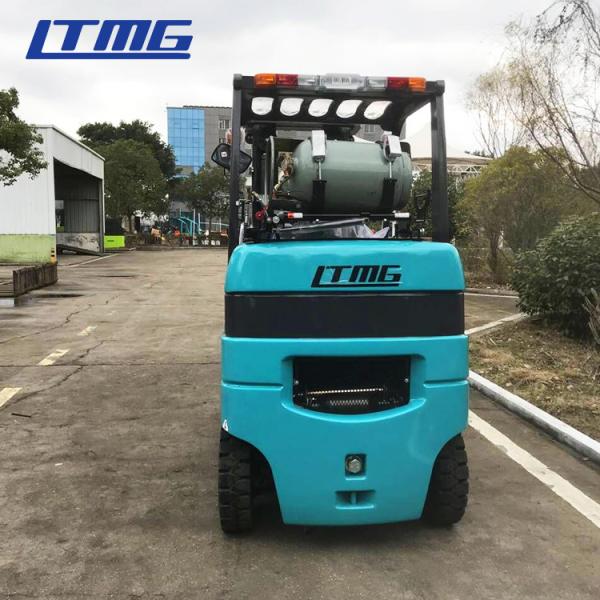

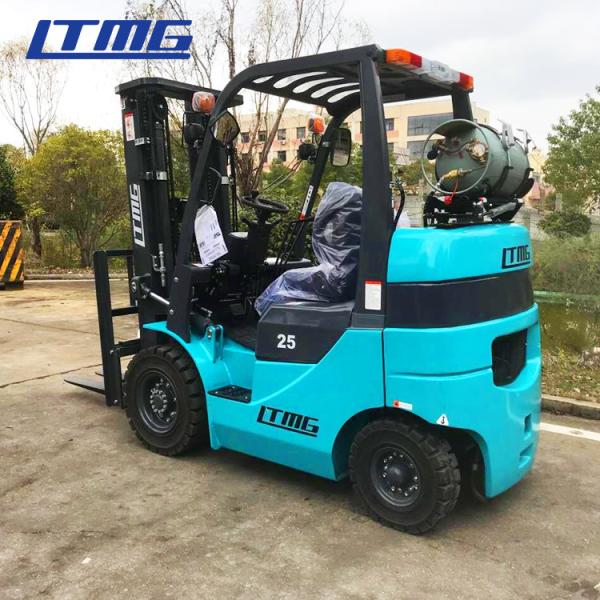

3m 4m Mast Small LPG Forklift Truck For Cargo Handling 2.5t / 1.5t / 2t
3m 4m Mast Small LPG Forklift Truck For Cargo Handling 2.5t / 1.5t / 2t
3m 4m Mast Small LPG Forklift Truck For Cargo Handling 2.5t / 1.5t / 2t
3m 4m Mast Small LPG Forklift Truck For Cargo Handling 2.5t / 1.5t / 2t
3m 4m Mast Small LPG Forklift Truck For Cargo Handling 2.5t / 1.5t / 2t
3m 4m Mast Small LPG Forklift Truck For Cargo Handling 2.5t / 1.5t / 2t
3m 4m Mast Small LPG Forklift Truck For Cargo Handling 2.5t / 1.5t / 2t
3m 4m Mast Small LPG Forklift Truck For Cargo Handling 2.5t / 1.5t / 2t
Specifications
Brand Name :
LTMG
Model Number :
FG25
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 unit
Price :
USD 9574 PER SET
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
300 units per month
Delivery Time :
30days
Packaging Details :
nude packing, in container
Overall Dimension :
2530mm*1150mm*2120mm
color :
white
Fork length :
1070mm
Truck weight: :
3580kg
Rated Loading Capacity: :
2500kg
engine :
Nissan K25 , Nissan k21, Chinese guangqing
shipping volume :
7cbm
package :
4units fit in 20ft container
Description

small LPG forklift truck 2.5t , 1.5t, 2t forklift truck with 3m, 4m mast

2.5t LPG forklift truck feature

1. Robust and Reliable Engine
2. Ergonomically design and seat
3. Wide-view Mast
4. Solid Overhead Guard
5. Fully Integrated Frame and Suspension Chassis
6. Easy to maintain and repair
7. Super low and on-slip step
8. Multiple Options Available for Choice
9. CE/EPA/GOST certificate

The Specification of 2.5t LPG forklift truck

Manufacturer LTMG
Model Power shift T/M FG25T
Manual shift T/M FG25C
Load capacity kg 2500
Load center mm 500
Power unit Gasoline/LPG
Operator type Driver/seat
Tire type Front/rear Pneumatic
Wheel Front/rear 2/2
Max. lifting height mm 3000
Free lift mm 160
Fork size L*W*T mm 1070*122*40
Tilt range Mast forward/backward deg 6/12
Overall length(without fork) mm 2530
Total width mm 1150
Mast height (fork lowering) mm 1995
Overall height fork raised With backrest mm 4030
Height to head guard mm 2120
Turning radius(outside) mm 2240
Front face of fork to front axle mm 450
Min. right angle stacking aisle without load length&clearance mm 2690
Speed Max Travelling full/no load km/h 17/19
Lifting full/no load mm/s 550/580
Lowering full/no load mm/s 450/550
Max.drawbar pull Power shift T/M full/no load kg 1650/830
Manual shift T/M full/no load kg 1700/830
Gradeability at 1.6km/h Power shift T/M full/no load % 22/18
Manual shift T/M full/no load % 22/18
Truck weight kg 3580
Weight distribution Full load front/rear kg 5370/710
No load front/rear kg 1390/2190
Tires Number front/rear 2/2
Model front axle 7.00-12-12PR
rear axle 6.00-9-10PR
Wheelbase mm 1600
Tread Front/rear mm 970/970
Ground clearance At lowest point(mast) mm 110
Frame mm 115
Brake Service brake Hydraulic-foot pedal
Parking brake Mechanical-hand lever
Battery Voltage/capacity V/AH 12/60
Engine Model Nissan K21
Rated power PS(kw/rpm) 47/2250(34.6/2250)
Rated torque kg-m max.(N.m) 15.7/1600(153/1600)
Number of cylinders 4
Placement L 2.065
Fuel tank capacity L 70
Transmission Speed forward/backward Power shift T/M Manual shift T/M 1-1 power shift T/M2-2 manual shift T/M
Operating pressure Hydraulic system pressure kg/cm² 180


3m 4m Mast Small LPG Forklift Truck For Cargo Handling 2.5t / 1.5t / 2t3m 4m Mast Small LPG Forklift Truck For Cargo Handling 2.5t / 1.5t / 2t

After-sale service
Nowadays more than 100 agents around the world can supply LTMG professional after-sale service.
All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and product’s quality certificate.
