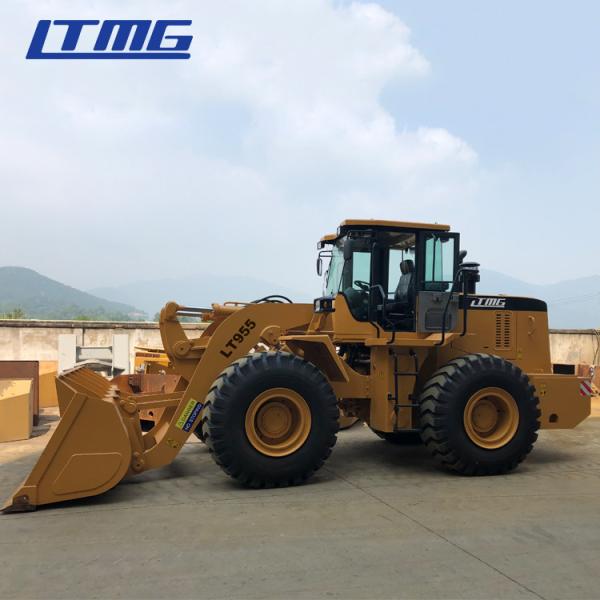

3100mm Dumping Height Front End Wheel Loader Small Wheel Loader With Pilot Control
3100mm Dumping Height Front End Wheel Loader Small Wheel Loader With Pilot Control
3100mm Dumping Height Front End Wheel Loader Small Wheel Loader With Pilot Control
3100mm Dumping Height Front End Wheel Loader Small Wheel Loader With Pilot Control
3100mm Dumping Height Front End Wheel Loader Small Wheel Loader With Pilot Control
3100mm Dumping Height Front End Wheel Loader Small Wheel Loader With Pilot Control
Specifications
Brand Name :
LTMG
Model Number :
LT955
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 unit
Price :
USD 33379-41321 PER SET
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
300 unit per month
Delivery Time :
30days
Packaging Details :
nude packing, fix in container
Dimension :
7610*2870*3220mm
transmission :
Shantui
tool box :
for free
dumping height :
3100mm
engine power :
162KW
warranty :
2 year
engine :
Weichai, Cummins
tyre size: :
23.5-25
Description

Chinese wheel loader 5000kg front end loader with Pilot Control

5000kg wheel loader feature

1. Using Heavy-duty frame structure with strong and thick steel in order to adapt to tough working condition.

2. Fully optimized layout of pipes and waterproof connectors make the machine safer under complex working conditions.

3. Four wheel double-line caliper disc braking system creates a safety operating environment.

optional:

1. Comfort function: ROPS/FOPS cab, Joystick control system, Air conditioner, Rearview camera

2. Engine: Cummins engine, Yuchai engine, Steyr engine, Deutz engine and others

3. Transmission: Hangchi transmission and others

4. Attachment: Rock bucket, Flat sand bucket, Log grapple, Grass grapple, Snow blade, Side dump bucket, Quick hitch device and so on.

The specification of 5000kg wheel loader

Operating weight 16.1T
Rated load 5T
Bucket capacity 3m³
Engine model WD10G220E23
Rated engine power 162KW
Rated rotate speed 2000r/min
Max.torque 745.3N.m
Breakout force 145KN
Driving speed
Forward Ⅰ 0-11.5km/h
Forward Ⅱ 0-38km/h
Reverse Ⅰ 0-16km/h
Gradeability 28°
Overall length 7460mm
Overall width 2870mm
Overall height 3220mm
Buchet width 3000mm
Wheel base 2870mm
Track base 2260mm
Min.ground clearance 450mm
Max.dumping height 3100mm
Max.dumping reach 1310mm
Torque converter Single stage,4elements
NO.of shifts 1 Forwards 2/Reverse 1
Transmission Planet-type
Raise time ≤6.8s
Total ≤12.5s
Tyre type 23.5-25

3100mm Dumping Height Front End Wheel Loader Small Wheel Loader With Pilot Control3100mm Dumping Height Front End Wheel Loader Small Wheel Loader With Pilot Control

After-sale service


Nowadays more than 60 agents around the world can supply LTMG professional after-sale service.
All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and product’s quality certificate.
